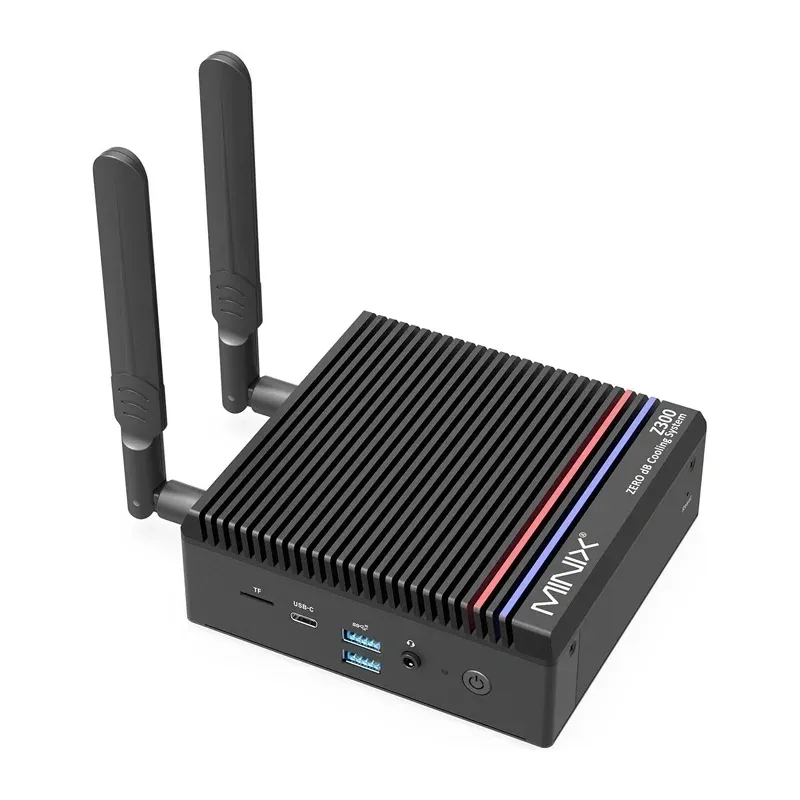

Mini PC Minix Barebone Core 3 N300
The MINIX Z300-0dB Barebone Mini PC delivers reliable, completely silent computing in an ultra-compact form factor. Powered by the efficient 8-core Intel® Core™ 3 N350 processor and engineered with a robust fanless ribbed chassis, this mini desktop is the perfect solution for noise-sensitive office environments, digital signage, smart home labs, media streaming centers, and commercial retail installations.

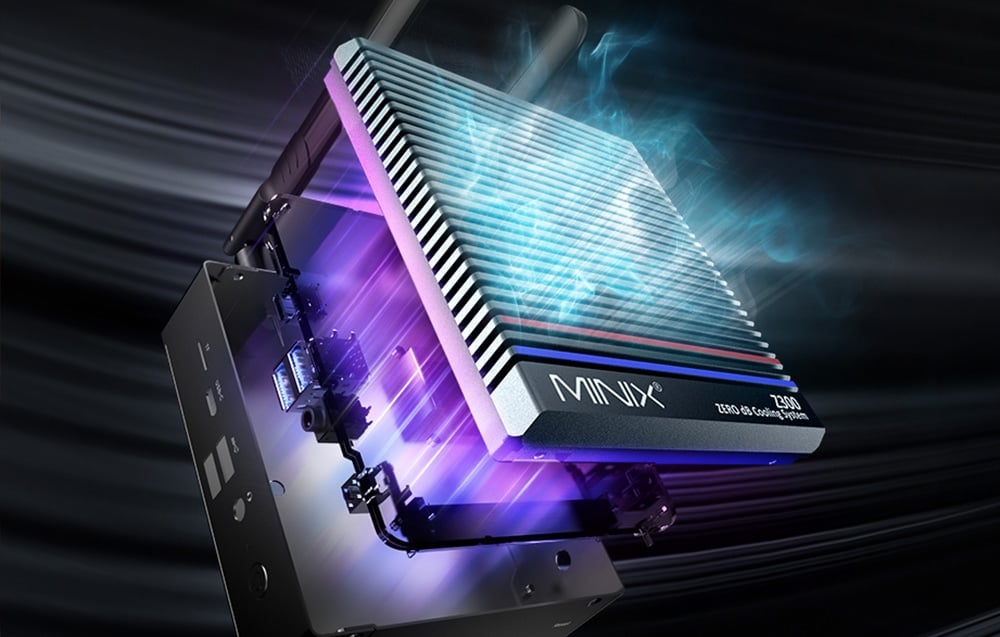

Completely Silent 0dB Passive Cooling
Designed with zero moving parts, the Z300-0dB utilizes an advanced heat-dissipation chassis that radiates heat quietly and efficiently. Enjoy 100% silent operation with significantly reduced internal dust accumulation and zero fan maintenance—ideal for 24/7 continuous operation.
Customizable Barebone Flexibility
Configure your system to match your exact computing requirements. The system supports up to 32GB of DDR4 3200MHz SO-DIMM RAM and accommodates ultra-fast M.2 PCIe 3.0 x4 NVMe SSDs (with select SATA drive support), allowing you to install the ideal capacity for your workflow and operating system preference.

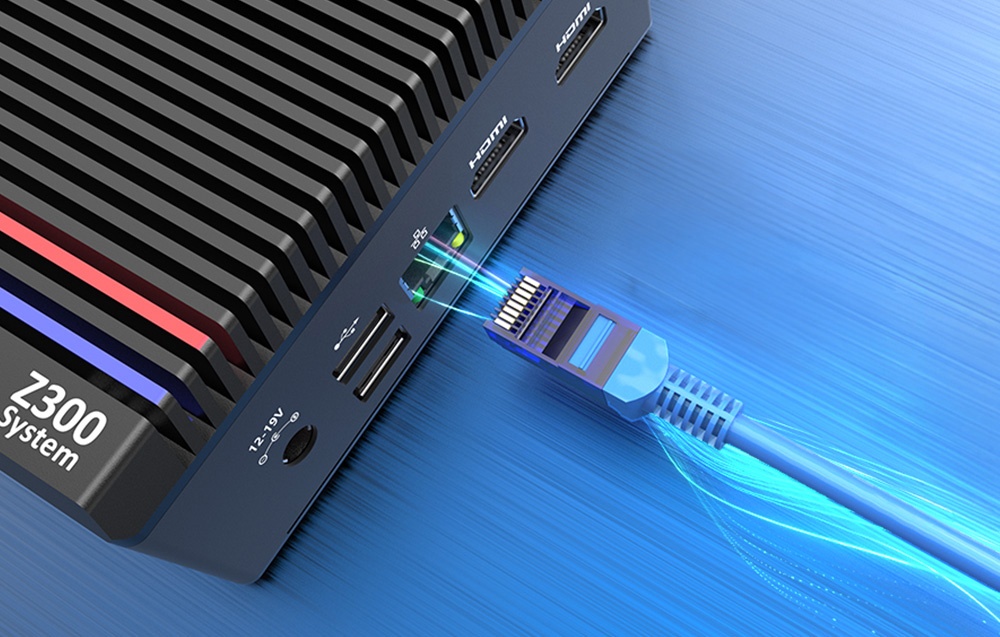

Dual 4K Display & Next-Gen Connectivity

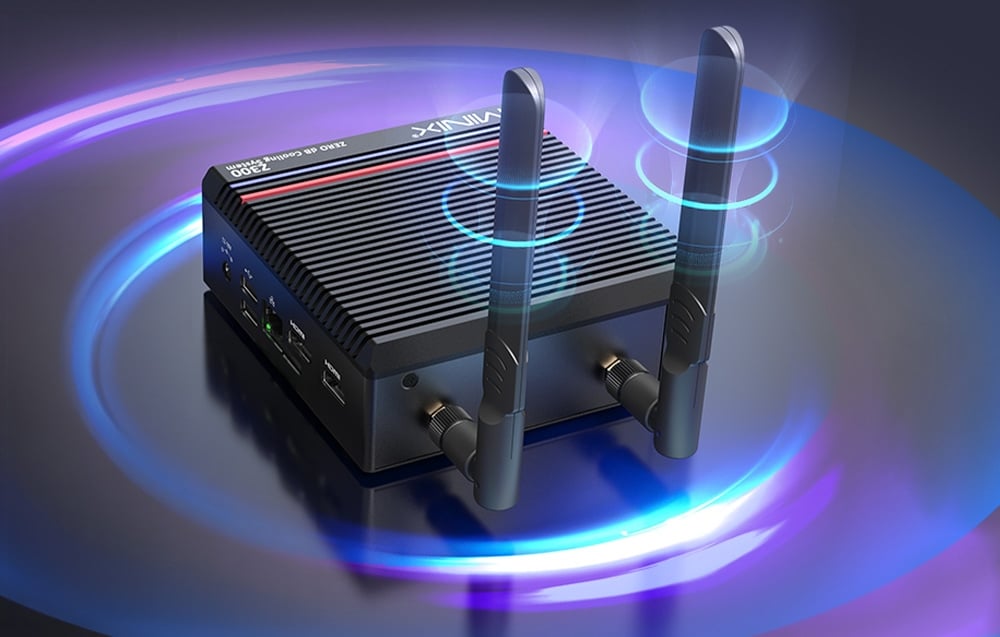

Equipped with dual HDMI 2.1 ports, the MINIX Z300-0dB easily powers two independent 4K displays at a crisp 60Hz refresh rate. High-speed networking is covered with high-bandwidth 2.5 Gbps Ethernet, Wi-Fi 6 (802.11ax) with dual external antennas, and Bluetooth 5.2 for seamless wireless peripheral pairing.
Key Features

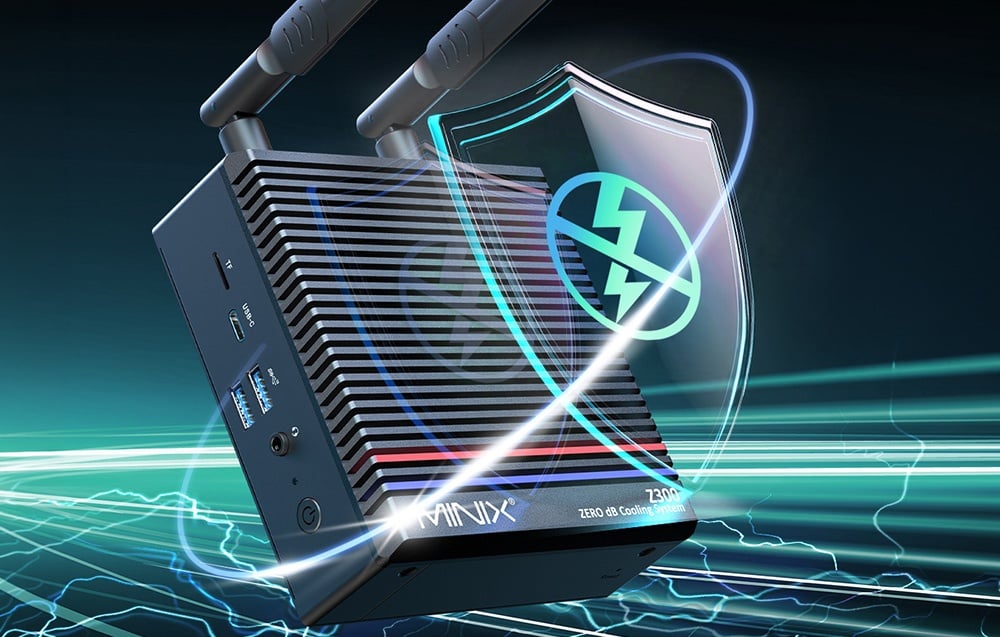

- Processor: Intel® Core™ 3 N350 (8 Cores, 8 Threads, up to 3.90 GHz, 6MB Cache)
- Acoustics: 0dB Fanless, completely silent passive cooling architecture
- Graphics: Integrated Intel® UHD Graphics with dual 4K @ 60Hz HDMI 2.1 support
- Expandable Architecture: 1x DDR4 SO-DIMM slot (up to 32GB) and M.2 PCIe 3.0 x4 NVMe SSD slot
- High-Speed Networking: 2.5 Gigabit Ethernet (RJ-45) & Wi-Fi 6 (802.11ax) with external antennas

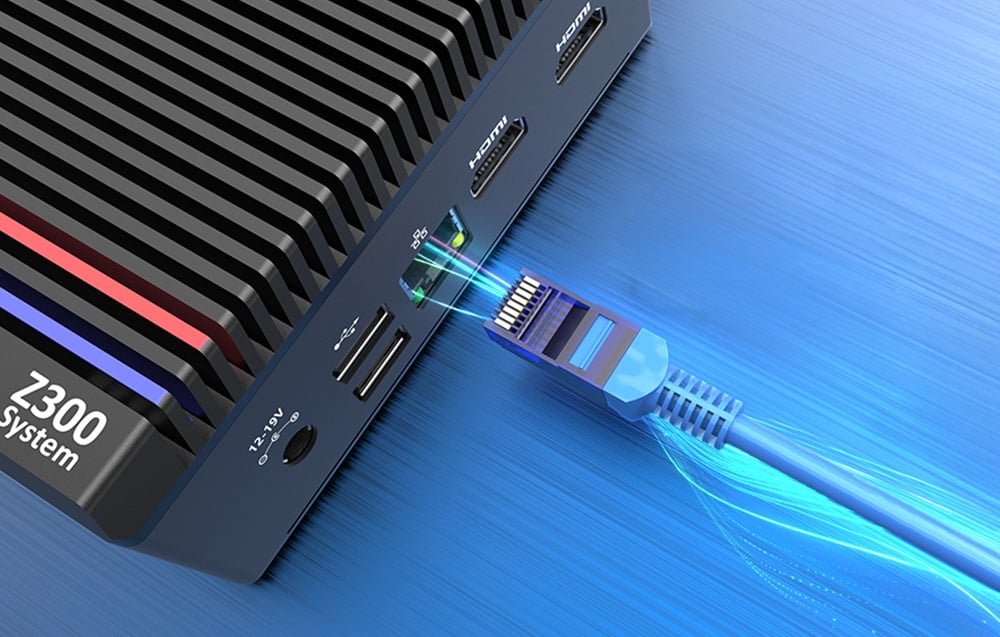

- Comprehensive I/O: USB-C 3.2 Gen 2, 2x USB 3.2 Gen 2, 2x USB 2.0, TF card reader, and 3.5mm audio jack
- Commercial Ready: Supports Auto Power On, Wake-on-LAN (WoL), and RTC Wake Up schedules
- Compact & Efficient: Ultra-low power consumption (max 25W TDP) with included VESA mounting bracket
General
- Brand
- MINIX
- Model
- Z300-0dB Barebone
- Product Type
- Mini PC / Barebone Desktop
- Cooling System
- Fanless Passive Cooling (0dB Silent Operation)
- Thermal Design Power (TDP)
- 25W (Maximum)
- Power Supply
- DC 12V / 3A (Supports 12V–19V DC input)
Processor & Graphics
- Processor Model
- Intel® Core™ 3 N350
- Cores / Threads
- 8 Cores / 8 Threads
- Burst Clock Speed
- Up to 3.90 GHz
- Cache
- 6 MB Intel® Smart Cache
- Graphics
- Integrated Intel® UHD Graphics
Memory & Storage Support
- Memory Type Supported
- DDR4 3200 MHz SO-DIMM
- Memory Slots
- 1x SO-DIMM Slot
- Maximum Memory Supported
- Up to 32 GB
- Storage Interface
- 1x M.2 2280 PCIe 3.0 x4 (Supports select SATA SSDs)
- Included RAM / Storage
- None (Barebone - User Configurable)
Video & Audio
- Display Outputs
- 2x HDMI 2.1
- Max Multi-Display Output
- Dual 4K Displays @ 60Hz
- Audio Interface
- 3.5 mm Audio Jack (Headphone / Mic combo)
Network & Connectivity
- Wired Ethernet
- 1x 2.5 Gbps RJ-45 LAN
- Wireless LAN
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Bluetooth 5.2
- Antennas
- 2x Detachable External Antennas
I/O Interfaces
- USB Type-C
- 1x USB-C 3.2 Gen 2 (Data transfer)
- USB Type-A
- 2x USB 3.2 Gen 2, 2x USB 2.0
- Card Reader
- 1x MicroSD / TF Card Reader
- Antenna Ports
- 2x External Antenna Connectors
System & Management Features
- BIOS / System Features
- Wake on LAN (WoL), RTC Wake Up, Auto Power On after power restoration
- Mounting
- VESA Mount Compatible (Bracket Included)
Physical & Package Details
- Dimensions
- 123 x 120 x 46 mm
- Package Contents
- MINIX Z300-0dB Mini PC, VESA Mount & Screws, HDMI Cable, 12V/3A Power Adapter, 2x External Antennas, User Manual
