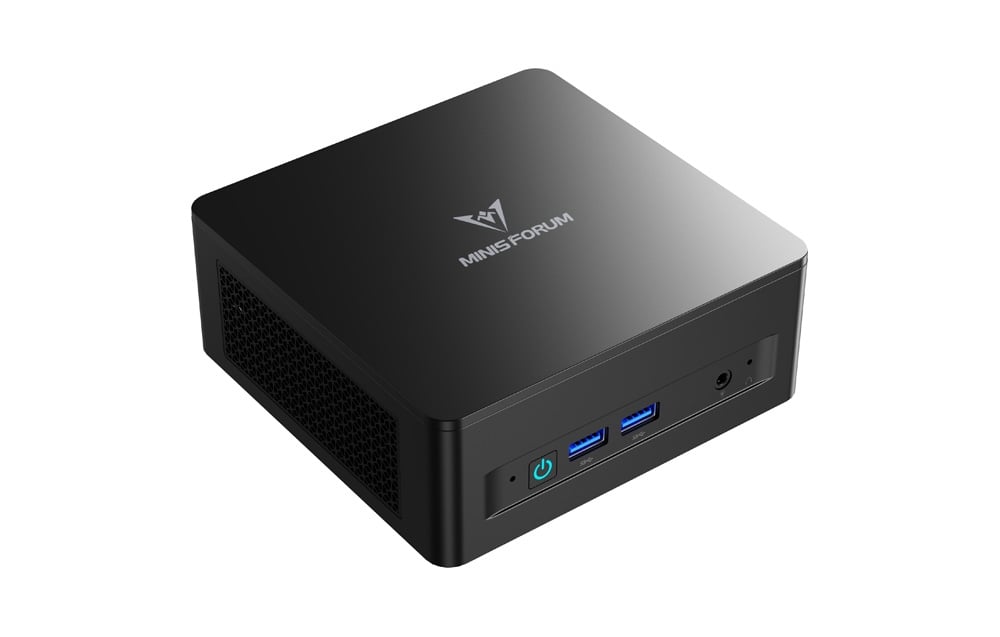

Mini PC MINIS FORUM UM760 Slim Ryzen 5 7640HS Barebone
SKU: INN-UM760S-B
Brand: Minis Forum
Unlock ultimate workstation versatility with the MINISFORUM UM760 Slim Ryzen 5 7640HS Barebone Mini PC. Designed for power users, office professionals, programmers, and content creators, this ultra-compact desktop delivers desktop-grade computing power inside an exceptionally small footprint. Featuring an advanced AMD platform and a barebone architecture, the UM760 Slim allows you the complete freedom to build your ideal PC by selecting your preferred RAM and high-speed SSD storage.
Key Features
- High-Performance AMD Ryzen™ 5 Processor: Powered by the AMD Ryzen™ 5 7640HS processor and integrated AMD Radeon™ 760M graphics, offering exceptional responsiveness for multitasking, coding, photo editing, and daily entertainment.
- Customizable Memory & Storage: Configurable barebone setup supporting up to 96 GB DDR5 5600 MHz Dual-Channel RAM via two SODIMM slots and up to 4 TB of storage across two M.2 2280 PCIe 4.0 SSD slots.
- Triple Display Output: Drive up to three monitors simultaneously via HDMI 2.1, DisplayPort 1.4, and ultra-fast USB4, maximizing productivity and workflow efficiency.

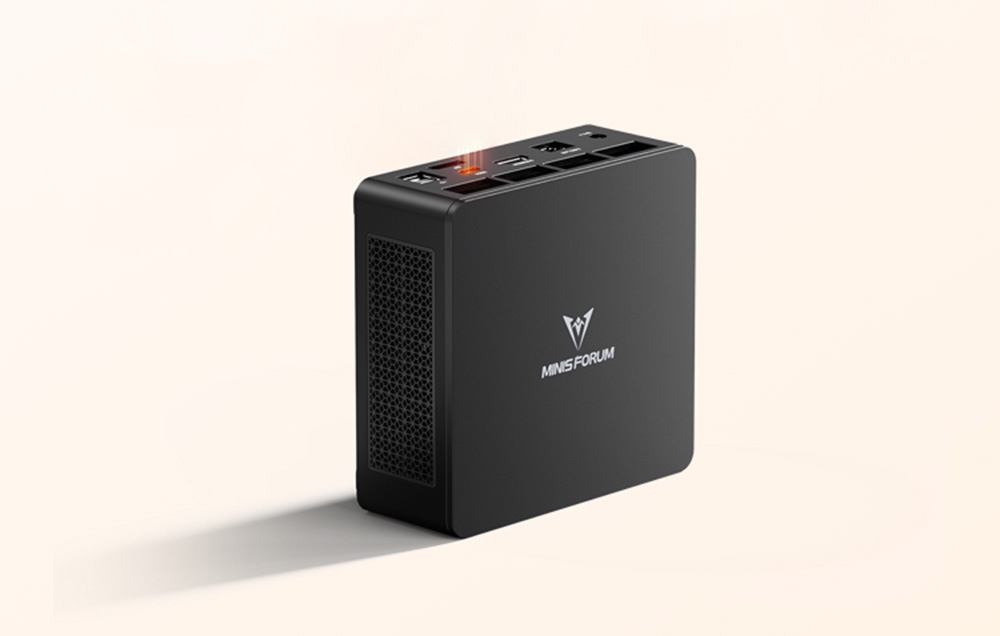

- Ultra-Fast Networking & Connectivity: Equipped with a 2.5 GbE Ethernet port for lightning-fast wired connections, alongside cutting-edge Wi-Fi 6E and Bluetooth 5.3 wireless technologies.
- High-Speed 40Gbps USB4: Full-featured USB4 port supporting up to 40 Gbps data transfer, DisplayPort Alt Mode, and 65–100W Power Delivery.

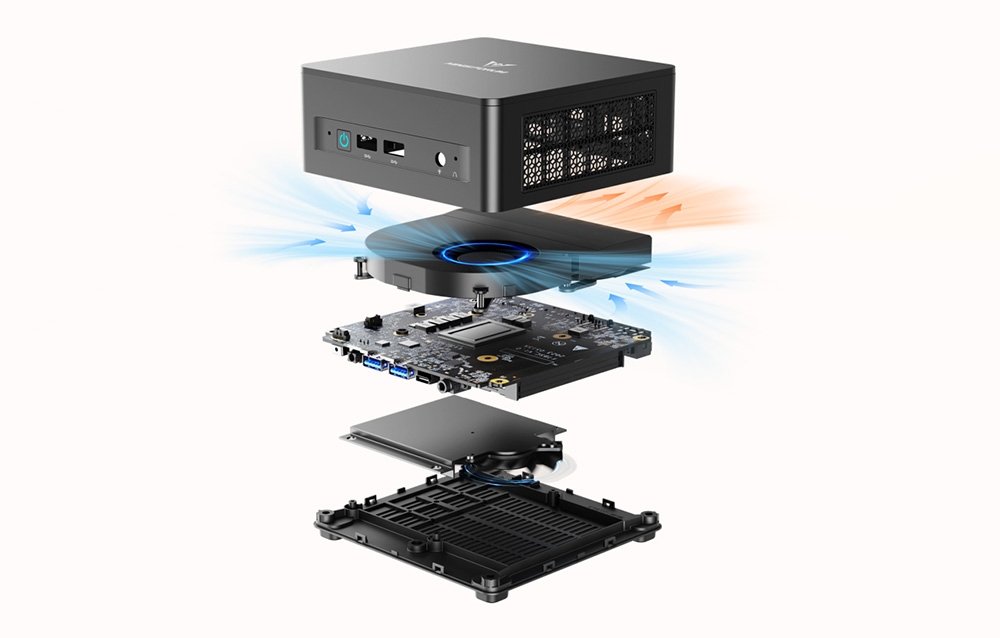

- Advanced Phase-Change Cooling: Features a 3-heat-pipe phase-change cooling system capable of managing a continuous 60 W TDP while operating under a quiet 35 dB in Performance Mode.

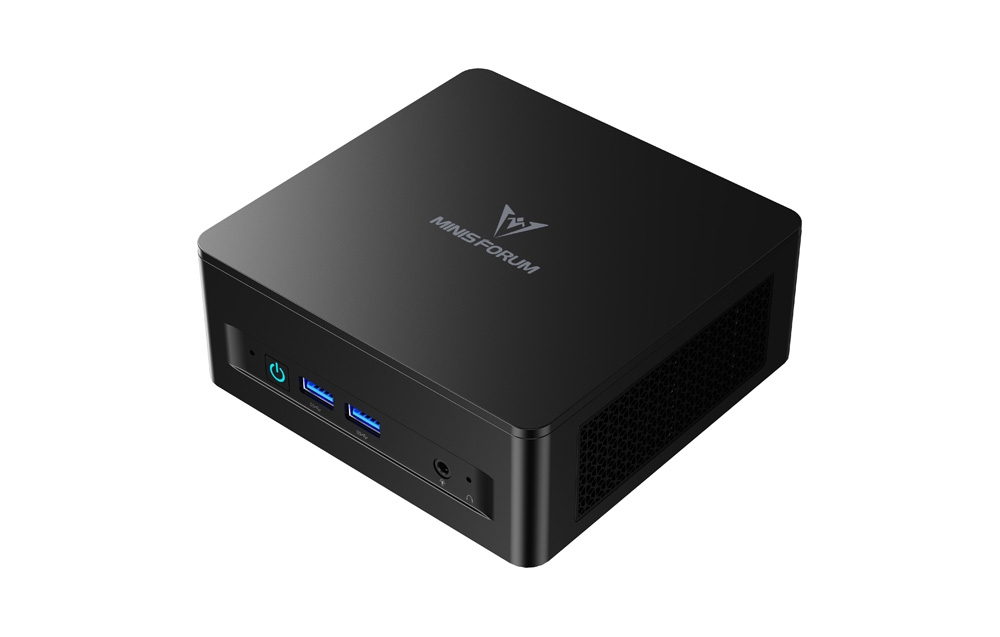

- Compact & Mountable: Measuring just 13 × 12.6 × 5 cm and weighing 671 g, it seamlessly integrates into any workspace and includes a VESA mount to attach behind your monitor.
General
- Brand
- MINISFORUM
- Model
- UM760 Slim
- Product Type
- Barebone Mini PC
- Operating System

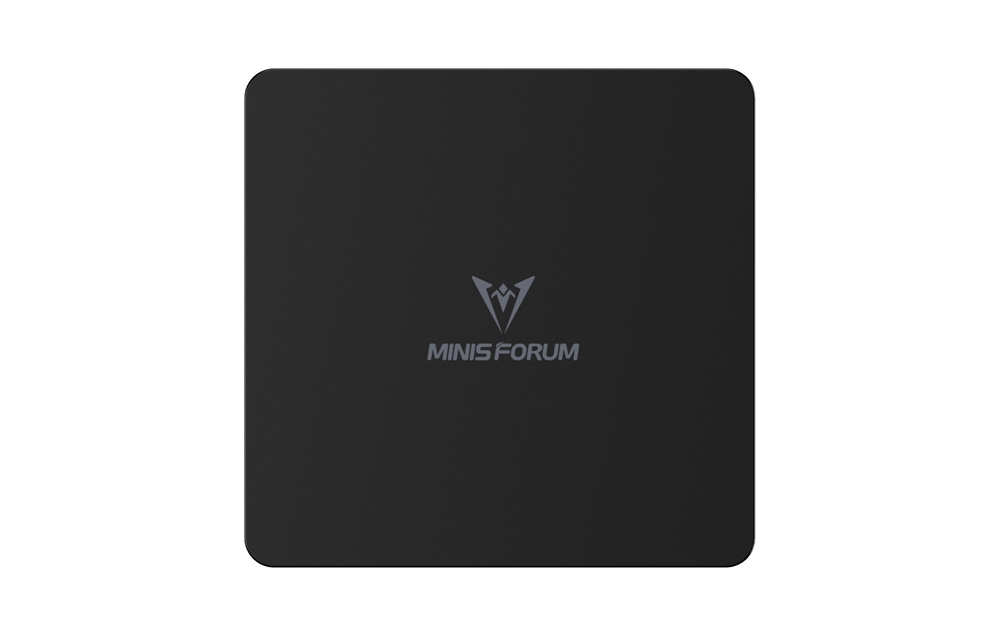

- No OS Included (Supports Windows 11 / Linux)
Processor & Graphics
- Processor
- AMD Ryzen™ 5 7640HS
- Graphics Card
- Integrated AMD Radeon™ 760M
Memory & Storage Support
- RAM Slots
- 2 × DDR5 SODIMM Slots (Dual Channel)
- Max RAM Capacity
- Up to 96 GB (5600 MHz)
- Storage Expansion
- 2 × M.2 2280 PCIe 4.0 SSD Slots
Connectivity
- Wired Network
- 1 × 2.5 GbE LAN (RJ45)
- Wireless Network
- Wi-Fi 6E
- Bluetooth
- Bluetooth 5.3
I/O & Expansion Ports
- Front Ports
- 2 × USB 3.2 Gen2 Type-A, 1 × 3.5 mm Audio Jack, 1 × Clear CMOS
- Rear Ports
- 1 × RJ45 2.5G, 1 × HDMI 2.1, 1 × DisplayPort 1.4, 1 × USB4, 2 × USB 2.0
- USB4 Capabilities
- 40 Gbps, DisplayPort Alt Mode, Power Delivery 65–100 W
Display Support
- Max External Displays
- Up to 3 Monitors Simultaneously
- Video Ports
- HDMI 2.1, DisplayPort 1.4, USB4
Cooling & Power
- Cooling Technology
- Active Phase-Change Cooling with 3 Heat Pipes
- Supported TDP
- 60 W
- Noise Level
- Below 35 dB (Performance Mode)
- Power Supply
- External DC 19V
Physical Attributes
- Dimensions
- 13.0 × 12.6 × 5.0 cm
- Weight
- Approx. 671 g
- VESA Mounting
- Supported (Mount Included)
Package Contents
- Box Content
- Mini PC, Power Supply, Power Cable, HDMI Cable, VESA Mount, User Manual
