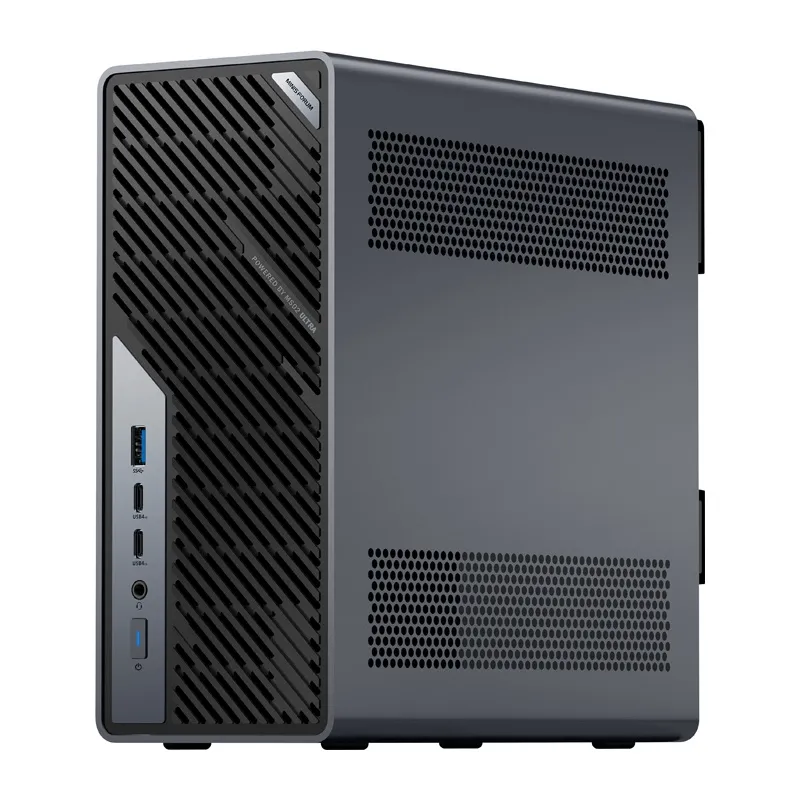

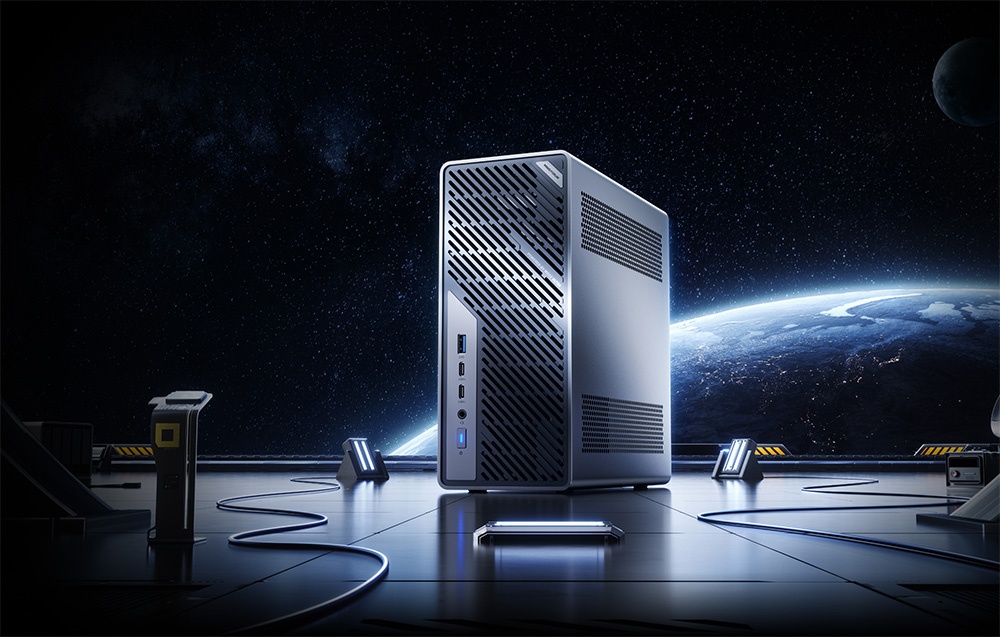

Mini PC MINIS FORUM MS-02U-235HX Intel Core Ultra 5 235HX barebone
SKU: INN-MS-02U-235HX
Brand: Minis Forum
The MINISFORUM MS-02 Ultra 235HX is a cutting-edge barebone mini PC workstation designed for power users, virtualization labs, AI developers, and demanding IT professionals. Encased in a compact 221.5 × 97 × 225 mm chassis, this station delivers server-grade network capability, desktop-class CPU power, and unmatched expandability while letting you customize RAM and storage to your exact operational requirements.
Key Features
- Intel Core Ultra 5 235HX CPU: Powered by 14 cores (6 Performance + 8 Efficient) reaching up to 5.1 GHz Turbo with an integrated Intel AI Boost NPU delivering up to 13 TOPS of computing power.

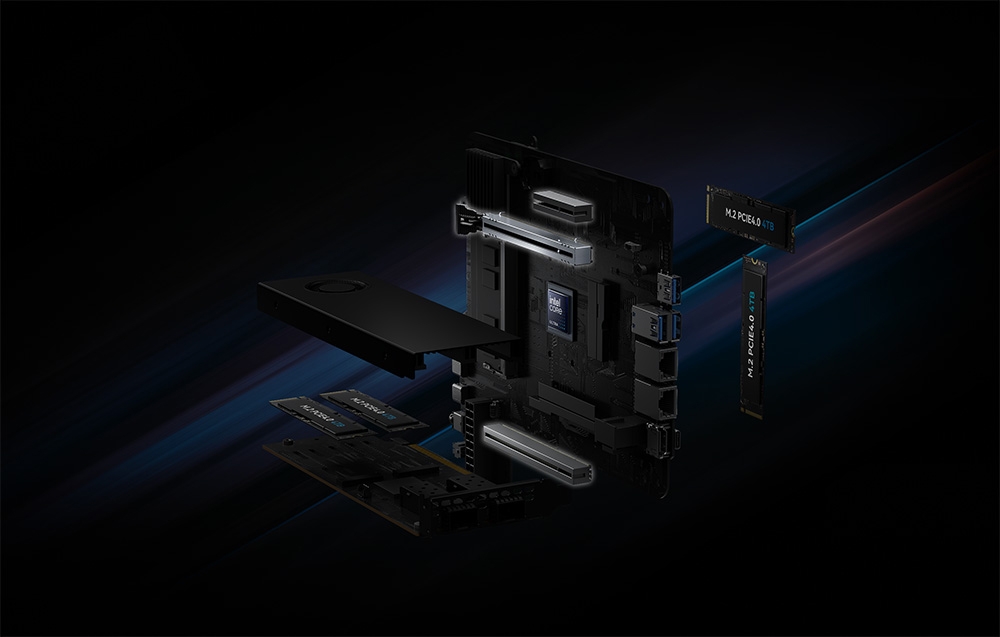

- Unrivaled RAM Expandability: Equipped with 4 DDR5 SO-DIMM slots supporting up to 256 GB RAM at speeds up to 4800 MT/s for seamless multi-VM environments.
- Huge Storage Support: Dual M.2 2280 PCIe 4.0 x4 NVMe slots accommodate up to 16 TB (2x 8 TB) of lightning-fast storage.

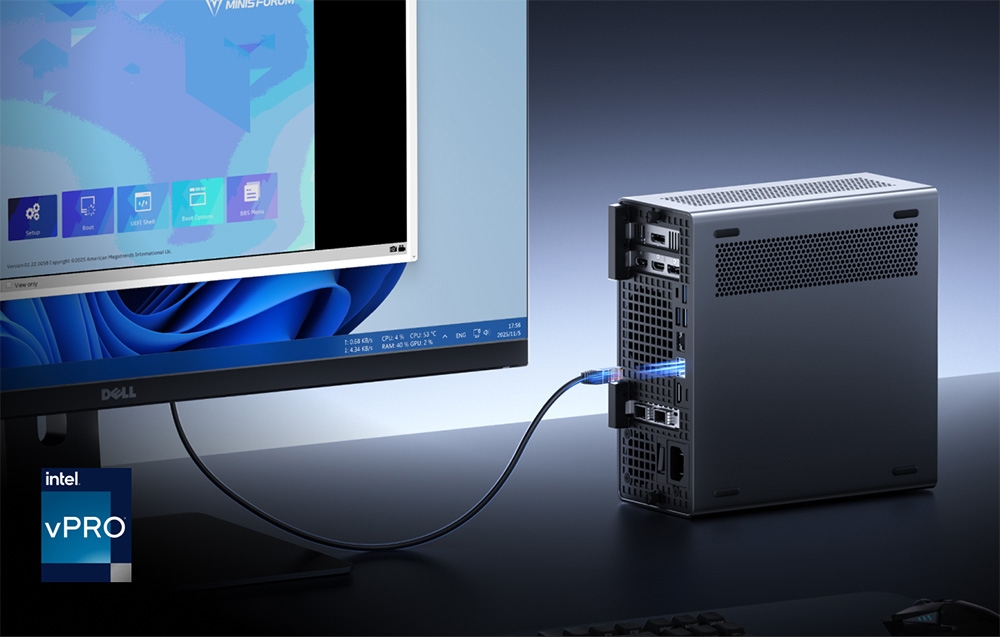

- Server-Class Networking: Features ultra-fast 10GbE RJ45 (Realtek RTL8127) and 2.5GbE RJ45 (Intel I226-V) dual LAN alongside Wi-Fi 7 and Bluetooth 5.4.
- PCIe & OCuLink Expansion: Includes PCIe 5.0 x16 (with bifurcation support), PCIe 4.0 x16, PCIe 4.0 x4, and an integrated OCuLink port for external GPUs or specialized expansion cards.
- Cutting-Edge USB4 V2 Ports: Dual front USB4 V2 Type-C ports offer up to 80 Gbps bandwidth, DisplayPort 2.0 Alt Mode, and 15 W Power Delivery, supporting up to three 8K displays.

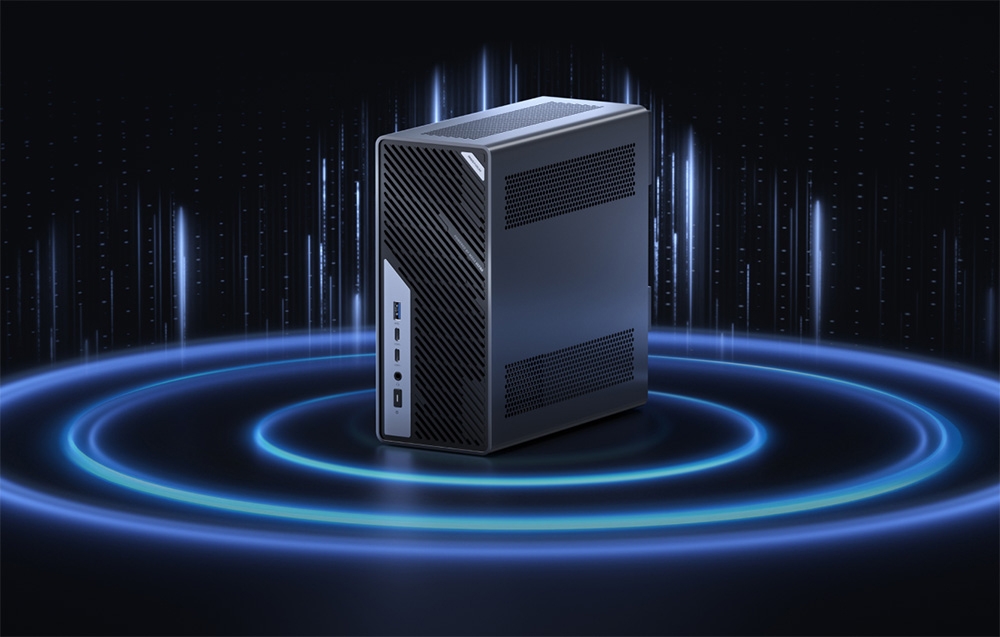

- Advanced Phase-Change Cooling: Dual high-speed fans, 6 heat pipes, and phase-change thermal material (PCM) ensure thermal stability under intense enterprise workloads.
- Internal 350 W Power Supply: Built-in 1U 350 W power supply delivers stable power directly without messy external power bricks.
General
- Brand
- MINISFORUM
- Model
- MS-02 Ultra 235HX
- Product Type
- Mini Workstation
- Format
- Barebone (No RAM, No SSD)
- Supported OS
- Windows 11 Pro / Linux
Processor & AI
- Processor Model
- Intel Core Ultra 5 235HX
- Total Cores
- 14 (6 Performance-cores + 8 Efficient-cores)
- Total Threads
- 14
- Max Turbo Frequency
- Up to 5.1 GHz
- Cache
- 24 MB Intel Smart Cache
- AI Engine
- Intel AI Boost NPU
- AI Performance
- Up to 13 TOPS
Graphics & Video
- Integrated Graphics
- Intel Graphics
- Graphics Frequency
- Up to 1.8 GHz
- Display Support
- Up to 3 displays
- Max Display Resolution
- Up to 8K
Memory & Storage
- RAM Slots
- 4 × DDR5 SO-DIMM
- Maximum RAM Capacity
- Up to 256 GB
- Supported RAM Speed
- Up to 4800 MT/s
- Storage Slots
- 2 × M.2 2280 PCIe 4.0 x4 NVMe
- Maximum Storage Capacity
- Up to 16 TB (2 × 8 TB)
Expansion & Interfaces
- PCIe Slots
- PCIe 5.0 x16 (bifurcation support), PCIe 4.0 x16 (x4/x4/x4), PCIe 4.0 x4
- OCuLink Port
- 1 × Rear OCuLink interface
Connectivity & Networking
- Primary LAN
- 10GbE RJ45 (Realtek RTL8127)
- Secondary LAN
- 2.5GbE RJ45 (Intel I226-V)
- Wi-Fi
- Wi-Fi 7 (Intel BE200 module)
- Bluetooth
- Bluetooth 5.4
I/O Ports
- Front Ports
- 2 × USB4 V2 Type-C (80 Gbps, DP 2.0, PD 15W), 1 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm Audio Jack
- Rear Ports
- 1 × USB4 Type-C (40 Gbps), 1 × HDMI 2.1 FRL, 3 × USB 3.2 Gen 2 Type-A, 1 × OCuLink, 1 × 10GbE RJ45, 1 × 2.5GbE RJ45
Power & Thermal Management
- Power Supply
- Built-in 1U 350 W MAX (AC 100–240 V)
- Cooling System
- 6 Heat Pipes, Phase-Change Material (PCM), Dual Fans (70×25mm & 60×20mm, up to 5000 RPM)
Physical Attributes
- Dimensions
- 221.5 × 97 × 225 mm
- Weight
- 3.25 kg
Package Contents
- Items Included
- MINISFORUM MS-02 Ultra Mini PC, Power Cord, HDMI Cable, Mylar Plate, SSD Heatsink, Removal Clip, User Manual
