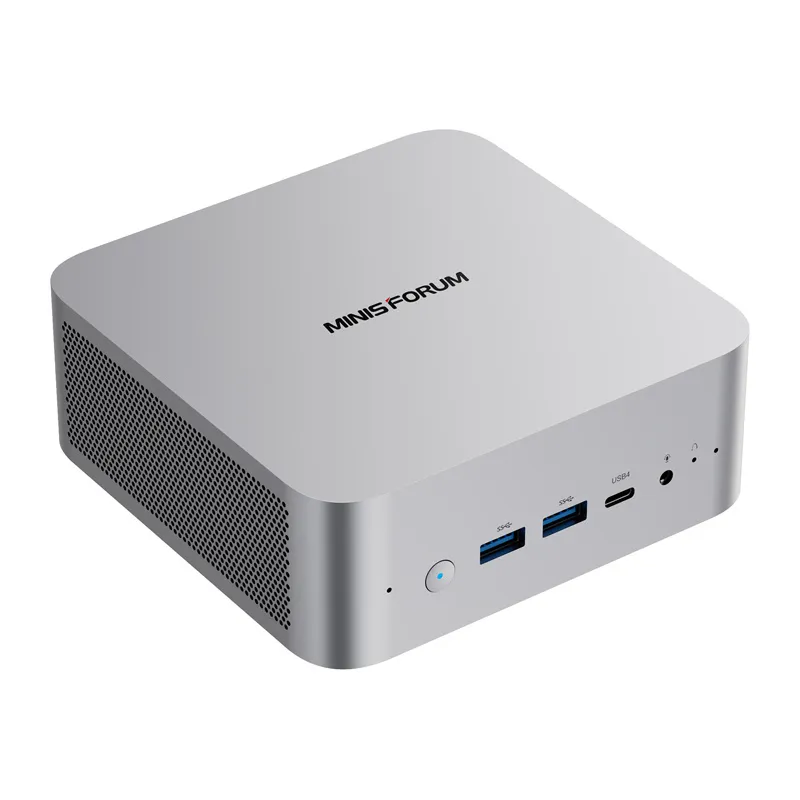

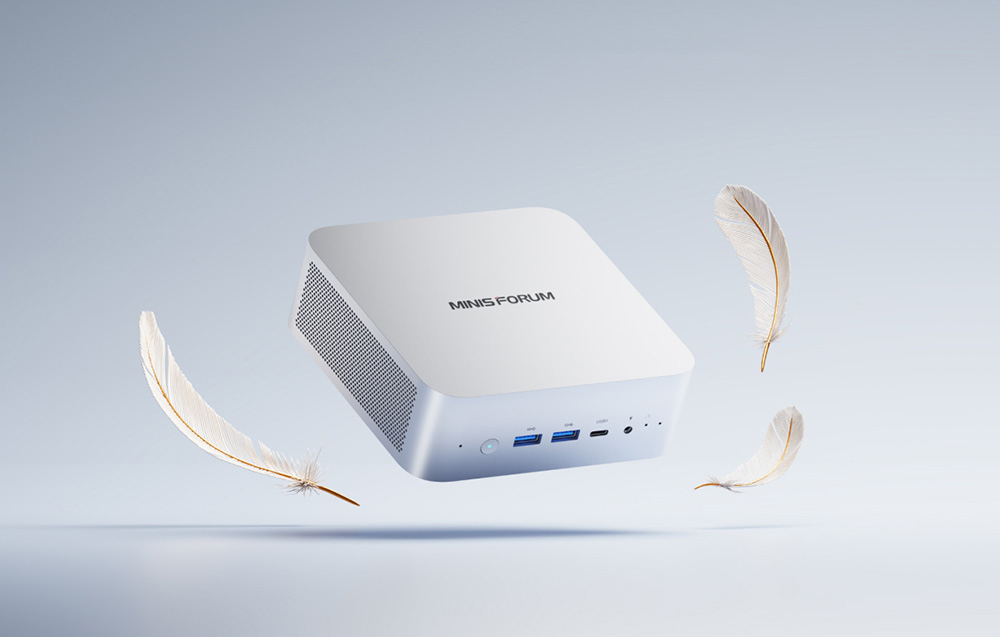

MINI-PC Minis Forum M1 Pro-125H Intel Core Ultra 5 125H barebone
SKU: INN-M1 Pro-125H
Brand:
Minis Forum
MINI-PC Minis Forum M1 Pro-125H Intel Core Ultra 5 125H barebone - Description
The MINIS FORUM M1 Pro-125H is equipped with an Intel Core™ Ultra 5 125H processor with 14 cores and 18 threads and integrated Intel Arc™ graphics. It supports up to 128 GB of DDR5 5600 MHz RAM and two high-speed NVMe PCIe 4.0 SSDs (up to 4 TB). The set of connectors includes, among others, 2 USB4 ports, HDMI 2.1, DP 1.4, OcuLink (for eGPU), LAN 2.5G, as well as Wi-Fi 7 and Bluetooth 5.4. The computer can be placed on a desk or attached to the back of a monitor (VESA bracket included). The whole thing weighs just 600 g with dimensions of 128 × 126 × 52 mm.
The M1 Pro-125H is equipped with an Intel Core™ Ultra 5 125H processor with 14 cores and 18 threads. Clocking up to 4.5 GHz and supporting advanced AI features, the computer easily handles multitasking, video editing, data work, virtualization or gaming. In Cinebench R23 (Multi-Core) tests, it achieves 14,071 points.
The MINIS FORUM M1 Pro supports DDR5 RAM in a dual-channel configuration, with up to 5600 MHz and a maximum capacity of up to 128 GB - making it unique in this class of devices. Two M.2 PCIe 4.0 slots allow storage expansion up to 4TB and support RAID 0/1, which translates into instant access to data and greater data security.
With HDMI 2.1, DP 1.4 and two USB4 ports, the M1 Pro supports up to 4 4K (or even 8K) displays simultaneously. This is ideal for those working with multiple applications and screens. In addition, the available OcuLink port allows you to connect an external graphics card (eGPU), extending the mini-PC's graphics capabilities to the level of a workstation or gaming PC.

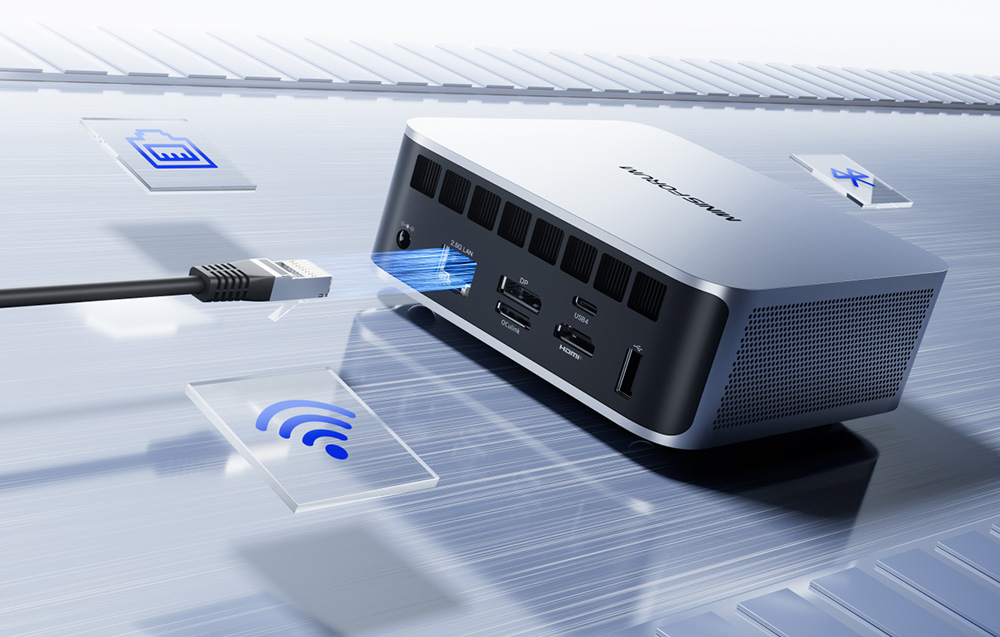

The M1 Pro offers the fastest standards: Wi-Fi 7 (up to 5.8 Gbps), Bluetooth 5.4 and Ethernet 2.5G, so you can count on lightning-fast data transfers, smooth video conferencing and stable network connectivity.

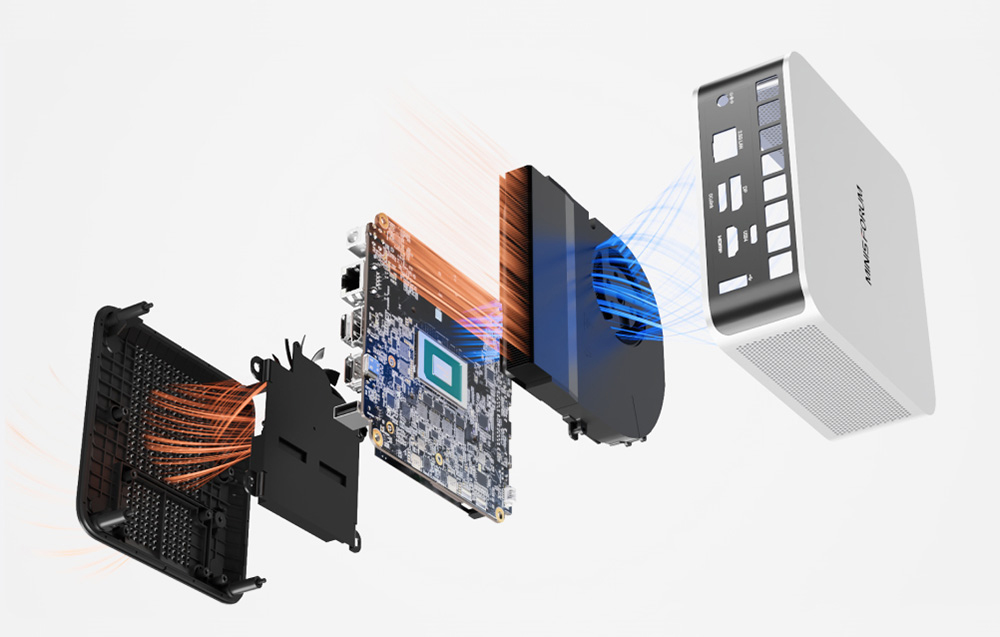

A dual fan system and pure copper heatpipes are responsible for efficient cooling. Even under full load, temperatures do not exceed 86°C, and the noise level does not exceed 45 dB - guaranteeing comfortable and stable operation in any conditions.
The built-in sound card (YH-SP6740-01) with active noise cancellation ensures clear sound during meetings and recordings. The ability to connect external audio devices via USB enables even better sound quality and flexibility for multimedia work.
MINI-PC Minis Forum M1 Pro-125H Intel Core Ultra 5 125H barebone - Specifications
General
- Brand
- Minis Forum
- Model
- M1 Pro-125H Barebone
- Type
- Mini PC / Barebone
- Supported Operating System
- Windows 11 Pro / Home, Linux
- VESA Mounting
- Supported (Bracket Included)
Processor
- Processor Model
- Intel® Core™ Ultra 5 125H
- Core Count
- 14 Cores (4 P-Cores, 8 E-Cores, 2 LPE-Cores)
- Thread Count
- 18 Threads
- Base Frequency
- 1.2 GHz
- Max Turbo Frequency
- 4.5 GHz
- TDP
- Fast: 65W / Slow: 45W-65W
Graphics & Video
- Graphics Type
- Integrated Intel® Arc™ Graphics
- Multi-Monitor Support
- Up to 4 Displays Simultaneously
- Video Ports
- 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz / 4K@144Hz), 2x USB4 (8K@60Hz / 4K@144Hz)
Memory & Storage Expansion
- Memory Type
- DDR5 SO-DIMM (2 Slots)
- Memory Speed
- 5600 MHz
- Maximum Supported RAM
- 128 GB
- Storage Slots
- 2x M.2 2280 NVMe PCIe 4.0 x4
- Maximum Storage Capacity
- Up to 4 TB
- RAID Support
- RAID 0 / RAID 1
Connectivity & Networking
- Wireless LAN
- Wi-Fi 7 (M.2 2230 module, up to 5.8 Gbps)
- Bluetooth
- Bluetooth® 5.4
- Ethernet
- 1x 2.5 Gigabit Ethernet (Intel® i226-V RJ45)
I/O Ports & Audio
- Front Ports
- 2x USB 3.2 Gen2 Type-A, 1x USB4 (Alt PD 40Gbps, 15W PD Out), 1x 3.5mm Combo Audio Jack, Reset Hole
- Rear Ports
- 1x HDMI 2.1, 1x DP 1.4, 1x USB4 (40Gbps, PD In 65-100W, PD Out 15W), 1x OcuLink (for eGPU), 1x USB 2.0 Type-A, 1x 2.5G LAN RJ45, 1x DC-In Port
- Audio Hardware
- Built-in Sound Card with Active Noise Cancellation, Dual Digital Microphones, 2x Integrated Speakers
Power & Thermals
- Cooling System
- Dual-Fan System with Pure Copper Heatpipes
- Noise Level
- ≤ 45 dB under full load
- Power Supply
- 19V / 6.32A (120W Power Adapter)
Physical Attributes
- Dimensions
- 128 x 126 x 52 mm (L x W x H)
- Weight
- 0.6 kg (600 g)
