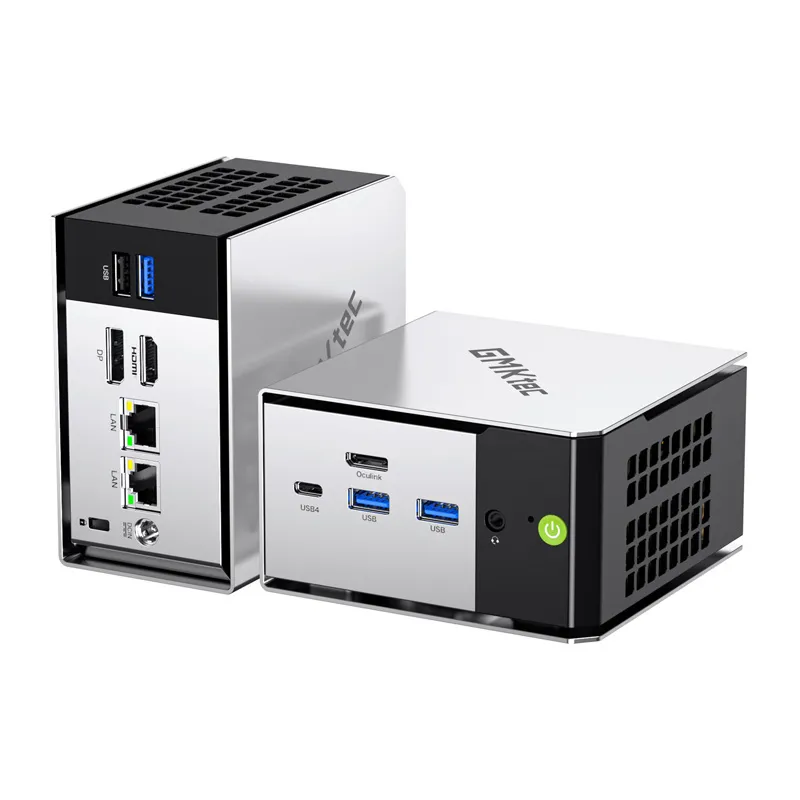

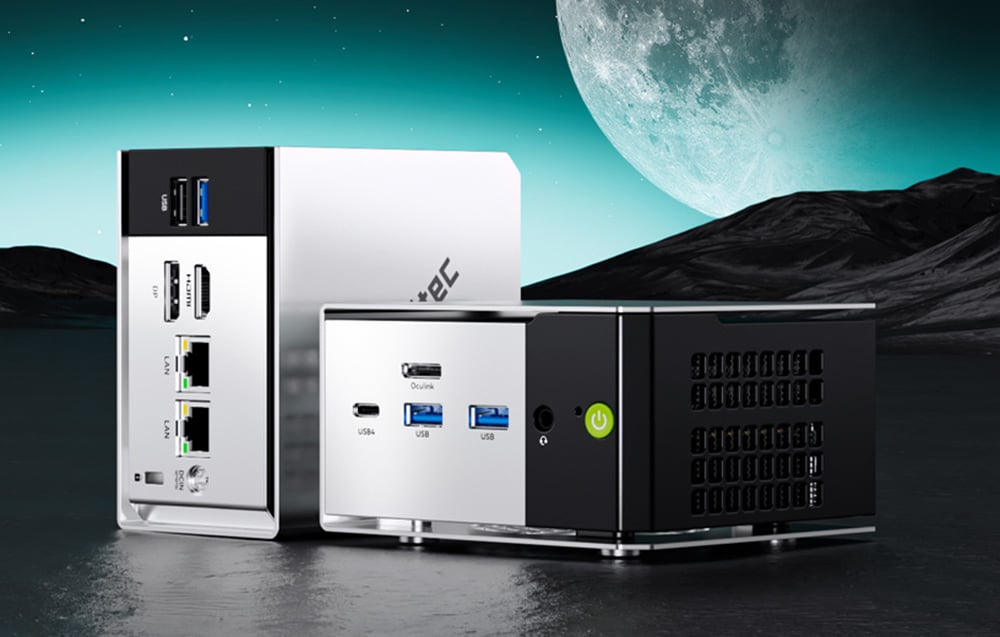

Mini PC GMKtec M8 Ryzen 5 PRO 6650H 16GB 512GB Win 11 Pro
SKU: INN-M8
Brand: GMKtec
Experience desktop-class performance in an ultra-compact chassis with the GMKtec M8 Mini PC. Powered by the high-performance 6-core AMD Ryzen 5 PRO 6650H processor and integrated AMD Radeon 660M graphics, this compact power station delivers exceptional speed and reliability for demanding office workflows, multitasking, enterprise applications, and multimedia entertainment. Pre-installed with Windows 11 Pro, it offers enterprise-grade security and immediate productivity right out of the box.
Key Highlights
- Powerful AMD Ryzen 5 PRO Processor: Built on advanced 6nm lithography featuring 6 cores, 12 threads, and clock speeds reaching up to 4.5 GHz, alongside robust hardware-level security features tailored for corporate and pro-sumer environments.

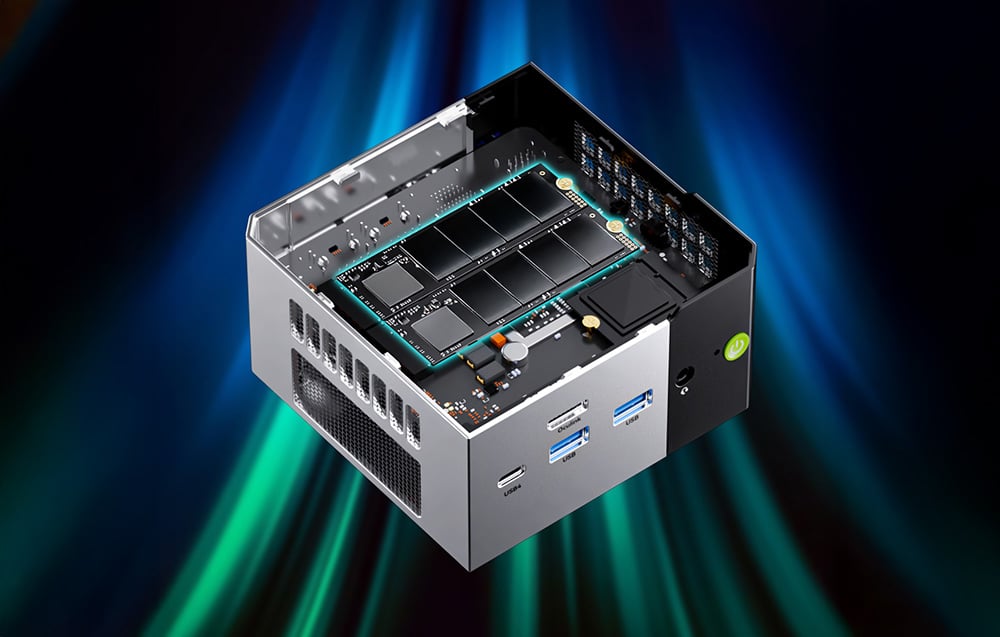

- Next-Gen LPDDR5 RAM & High-Speed Storage: Includes 16 GB of ultra-fast LPDDR5 memory running at 6400 MT/s for instantaneous application response, plus a fast 512 GB PCIe NVMe SSD. Expand storage effortlessly using two tool-free M.2 PCIe 4.0 x4 slots supporting up to 16 TB (2 x 8 TB).

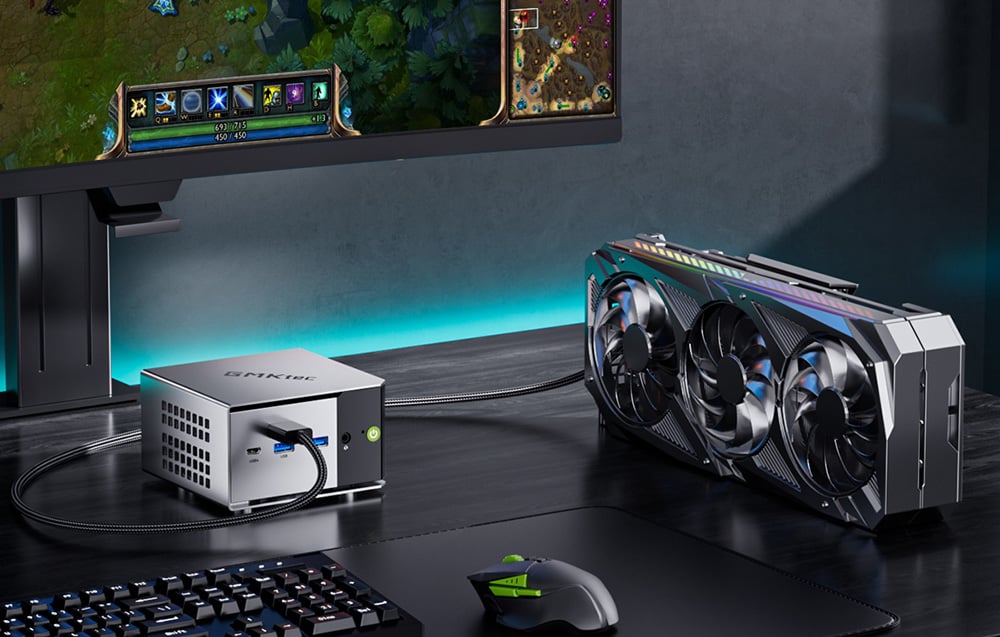

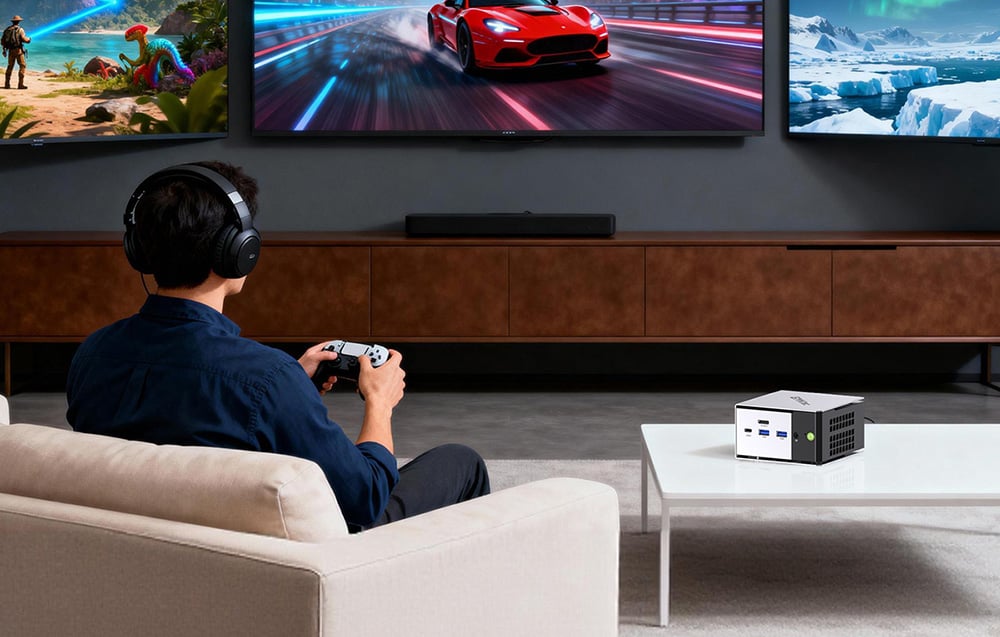

- Triple 8K Display & eGPU Capability: Drive up to three displays simultaneously in 8K@60Hz resolution via HDMI 2.0, DisplayPort 1.4, and full-featured USB4. For maximum GPU power, connect an external desktop graphics card using the dedicated high-bandwidth OCuLink port.

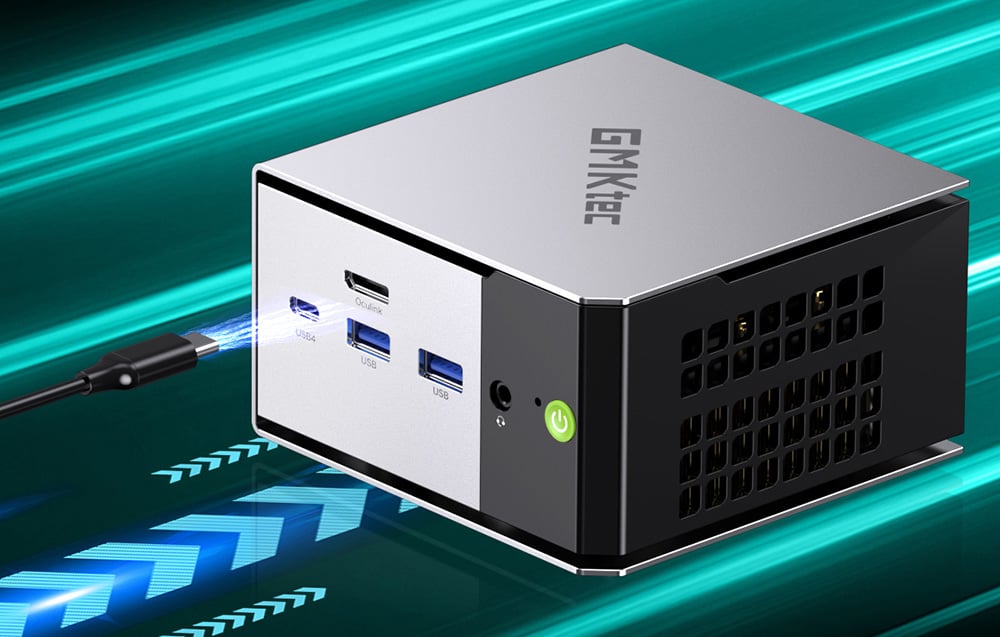

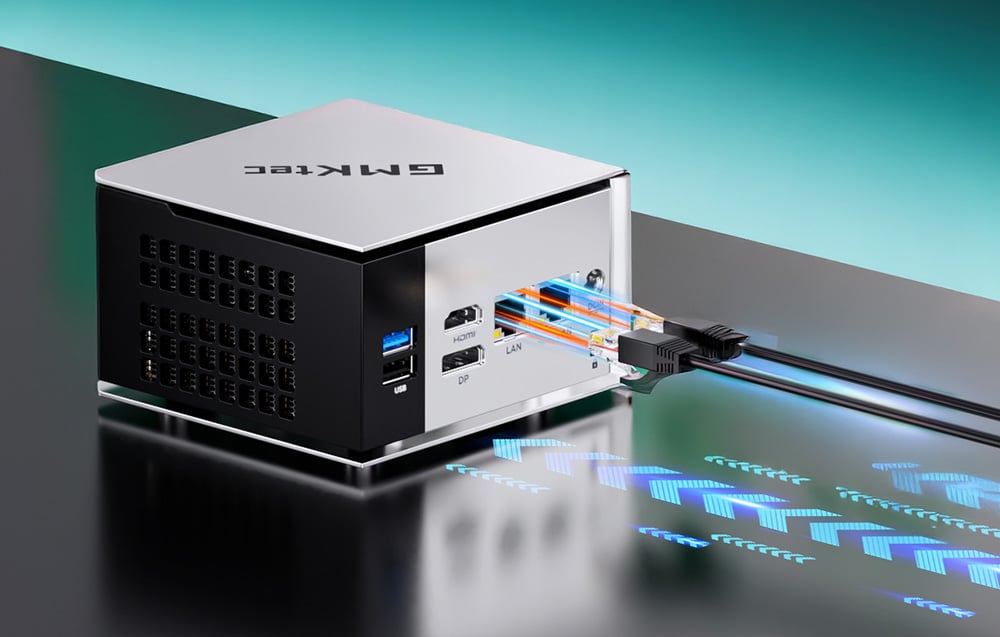

- Dual 2.5G Ethernet & Wi-Fi 6E: Achieve maximum network throughput with dual 2.5G RJ45 LAN ports—ideal for NAS setups, network aggregation, and ultra-fast local file transfers—plus tri-band Wi-Fi 6E and Bluetooth 5.2 wireless connectivity.

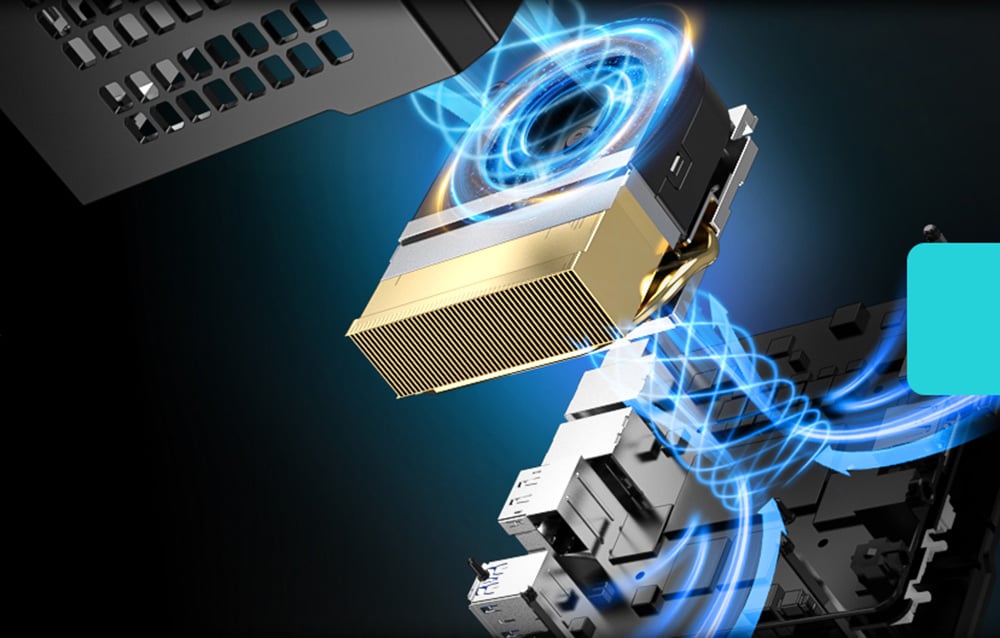

- Smart Dual-Fan Cooling: Equipped with dual cooling fans and copper thermal pipes to ensure sustained high performance. Easily switch between Quiet (28W), Balanced (35W), and Performance (40W) operating modes.
General
- Brand
- GMKtec
- Model
- M8 (NucBox M8)
- Operating System
- Windows 11 Pro (Linux supported)
- Security
- TPM 2.0, Kensington Lock Slot
- Mounting Support
- VESA Mount Compatible
Processor
- Processor Model
- AMD Ryzen 5 PRO 6650H
- Cores / Threads
- 6 Cores / 12 Threads
- Max Boost Frequency
- Up to 4.5 GHz
- L3 Cache
- 16 MB
- Process Technology
- TSMC 6nm FinFET
Graphics & Video Output
- Graphics Processor
- AMD Radeon 660M
- Multi-Monitor Support
- Up to 3 Displays simultaneously
- Maximum Resolution
- 8K @ 60Hz
- Video Ports
- 1 x HDMI 2.0, 1 x DisplayPort 1.4, 1 x USB4 (DisplayPort Alt Mode)
- eGPU Support
- Supported via OCuLink Port (PCIe Gen4 x4)
Memory & Storage
- Memory Capacity
- 16 GB
- Memory Type
- LPDDR5 6400 MT/s (Onboard)
- Installed Storage
- 512 GB M.2 2280 PCIe 3.0 NVMe SSD
- Storage Expansion
- 2 x M.2 2280 PCIe 4.0 x4 slots (Supports up to 2 x 8 TB)
Connectivity & Expansion
- Wireless Network
- Wi-Fi 6E (Tri-band 2.4GHz / 5GHz / 6GHz)
- Bluetooth
- Bluetooth 5.2
- LAN Ethernet
- 2 x 2.5 Gbps RJ45 Ethernet Ports
- USB Ports
- 1 x USB4 (40 Gbps, Power Delivery, DisplayPort), 3 x USB 3.2 Gen2, 1 x USB 2.0
- Expansion Ports
- 1 x OCuLink Port (PCIe Gen4 x4)
- Audio Output
- 1 x 3.5 mm Headphone/Microphone Jack (CTIA)
Power & Thermals
- Cooling System
- Dual Cooling Fans with Copper Heatpipes
- Power Consumption Modes
- Quiet Mode (28W) / Balanced Mode (35W) / Efficient Mode (40W)
- Power Supply
- DC IN 20V / 5A (100W Power Adapter)
Physical Attributes
- Dimensions
- 110 x 108 x 64 mm
- Weight
- 482 g
- Chassis Material
- Metal and High-Grade Plastic
Package Contents
- In the Box
- GMKtec M8 Mini PC, DC Power Supply & AC Cable, HDMI Cable, User Manual / Warranty Card
