Mini PC GMKtec M7 Ultra Ryzen 7 PRO 6850U 16GB 512GB Win 11 Pro - Description

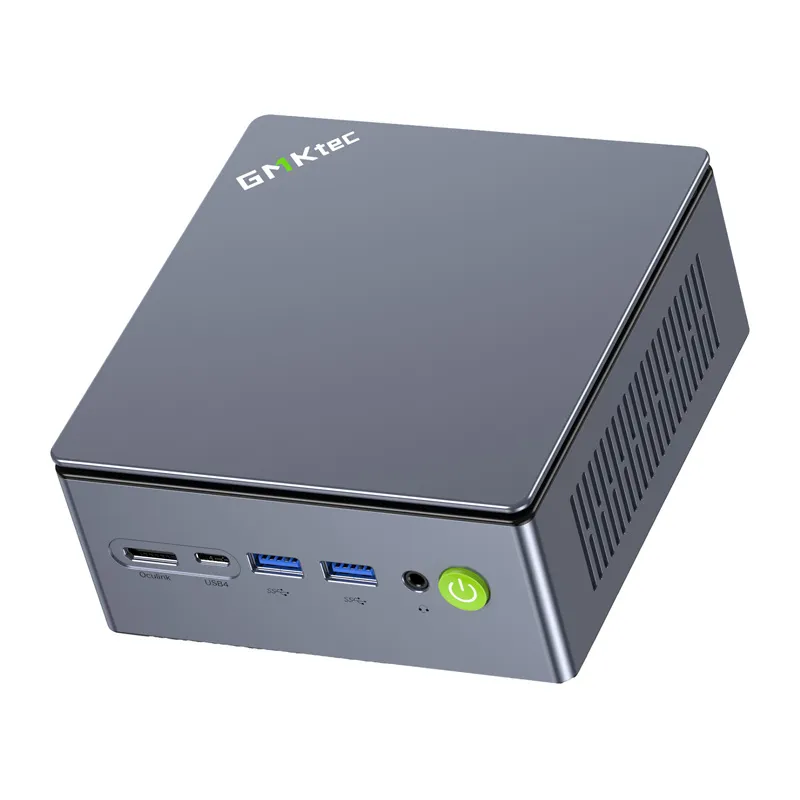

The GMKtec M7 Ultra is a compact mini PC that combines the exceptional performance of the AMD Ryzen 7 PRO 6850U processor with advanced Radeon 680M graphics and DDR5 4800 MHz memory. Equipped with 16GB of RAM and a fast 512GB PCIe SSD, it ensures smooth operation of office, creative, and multimedia applications. With support for four 8K displays and extensive connectivity—including USB4.0, HDMI 2.1, Wi-Fi 6E, and Bluetooth 5.2—the M7 Ultra will meet the expectations of even the most demanding business users and professionals. Designed for intensive work, with a dual cooling system and extensive storage expansion options up to 16 TB, this mini PC is an exceptionally versatile and reliable tool.

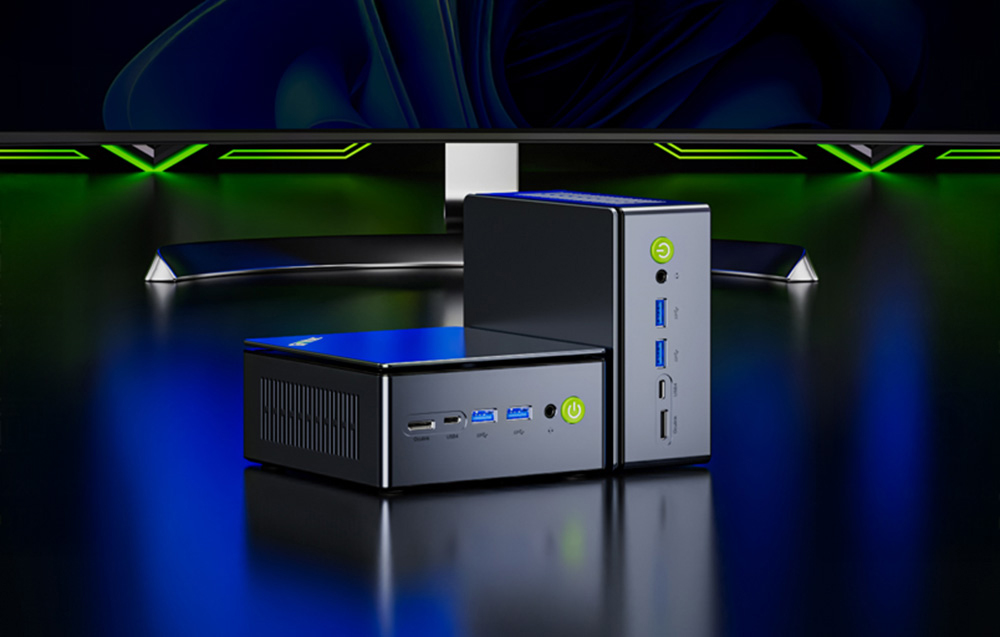

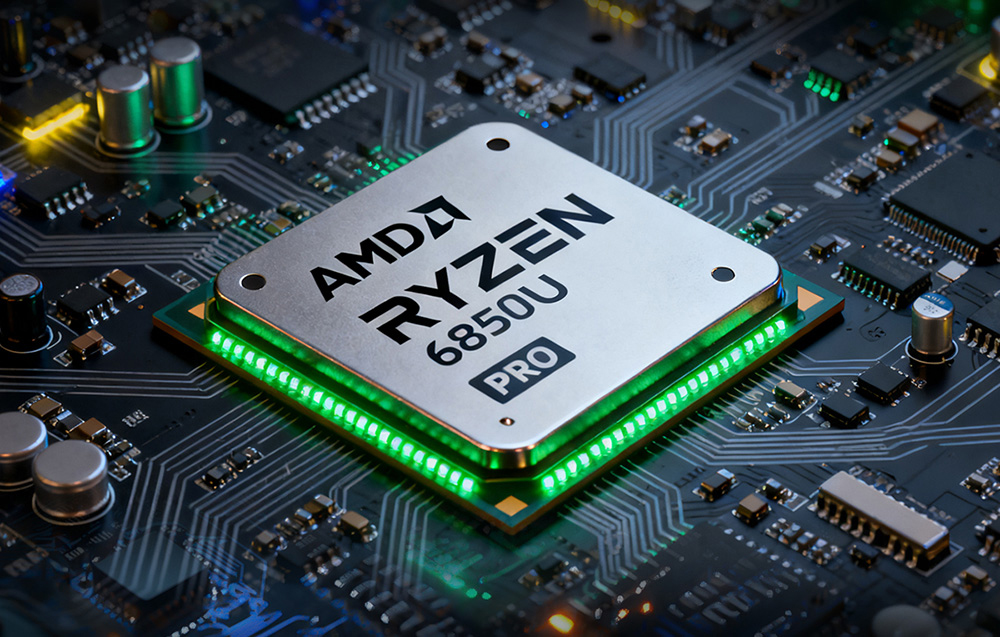

At the heart of the device is an eight-core, sixteen-thread AMD Ryzen 7 PRO 6850U processor with 6nm technology and a clock speed of up to 4.7 GHz. This unit has been designed for professional applications, offering not only high computing power, but also efficient power management with a TDP of 35W–54W. As a result, the mini PC excels at multitasking, data processing, and demanding work environments.
Graphics rendering is handled by the integrated AMD Radeon 680M graphics chip, offering smooth multimedia, design, and office tasks. This solution is ideal for video editing, working with large presentations, and using graphics-accelerated applications.

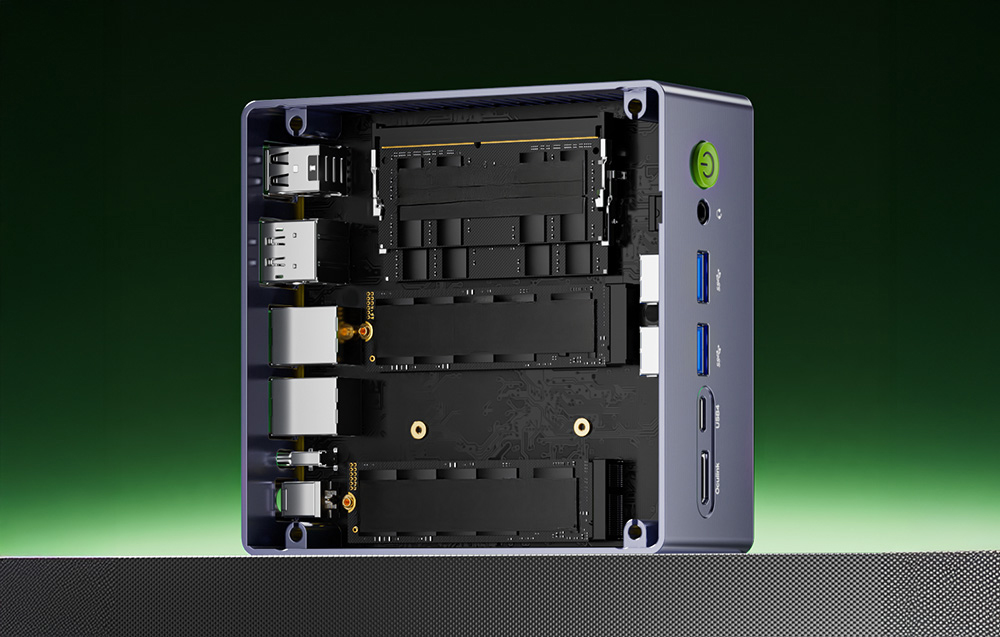

The device is equipped with 16 GB of DDR5 4800 MHz RAM, expandable to 64 GB (two SO-DIMM slots). This configuration ensures lightning-fast application loading, stable performance, and the ability to work with large files. A 512 GB PCIe 3.0 SSD is dedicated to user data, with the option of installing two M.2 2280 drives and expanding the storage space up to 16 TB, which is ideal for professionals and content creators.

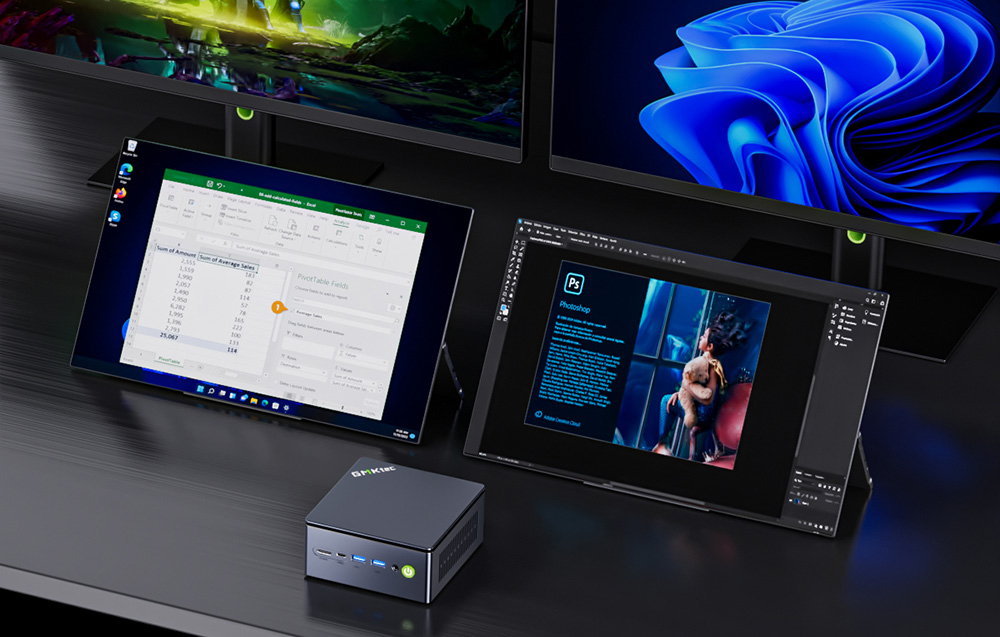

The GMKtec M7 Ultra supports simultaneous connection to four monitors, including via HDMI 2.1, DisplayPort 2.0, and two USB4.0 ports with full DisplayPort support. The computer can display images at resolutions up to 8K at 60 Hz, significantly increasing productivity in multi-monitor work environments, control centers, and design stations.

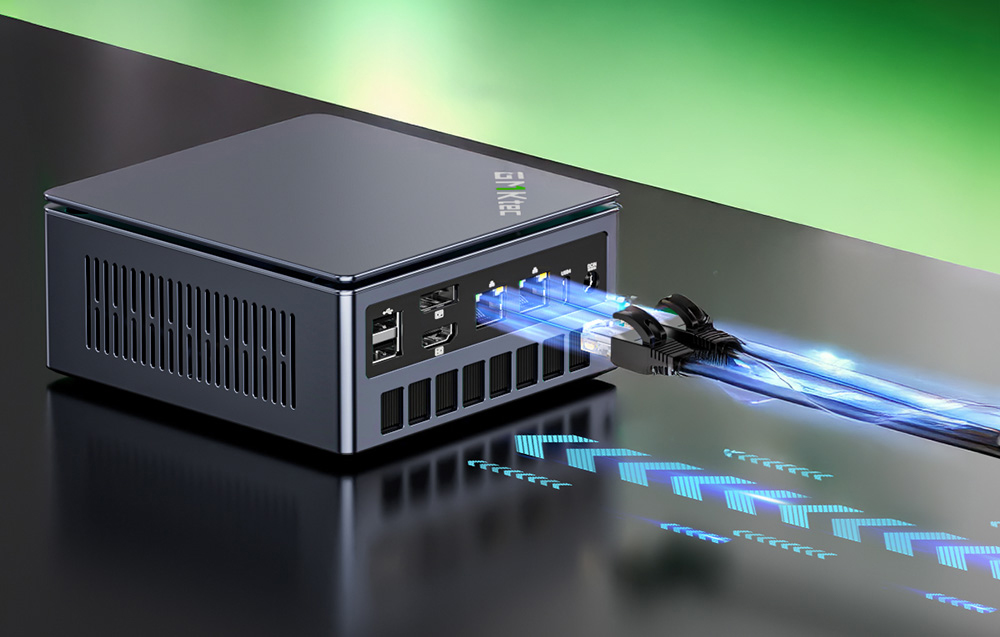

The GMKtec M7 Ultra is equipped with a wide range of external connectors that make it easy to connect monitors, peripherals, and accessories. The front panel features two USB 3.2 Gen 2 ports, a USB 4.0 port with charging, data transfer, and DisplayPort (PD/DP/DATA) support, an OCuLink (PCIe 4.0*4) connector, a 3.5 mm headphone/microphone jack (CTIA), and a power button. The rear panel offers two USB 2.0 ports, USB 4.0 PD/DP/DATA, HDMI 2.1 output, one DisplayPort 2.0 connector, two 2.5G RJ45 LAN ports, a Kensington Lock, and a DC IN power socket (19V, 6.32A). This configuration provides flexibility for multi-monitor work, fast data transfer, and stable network connectivity in any situation.

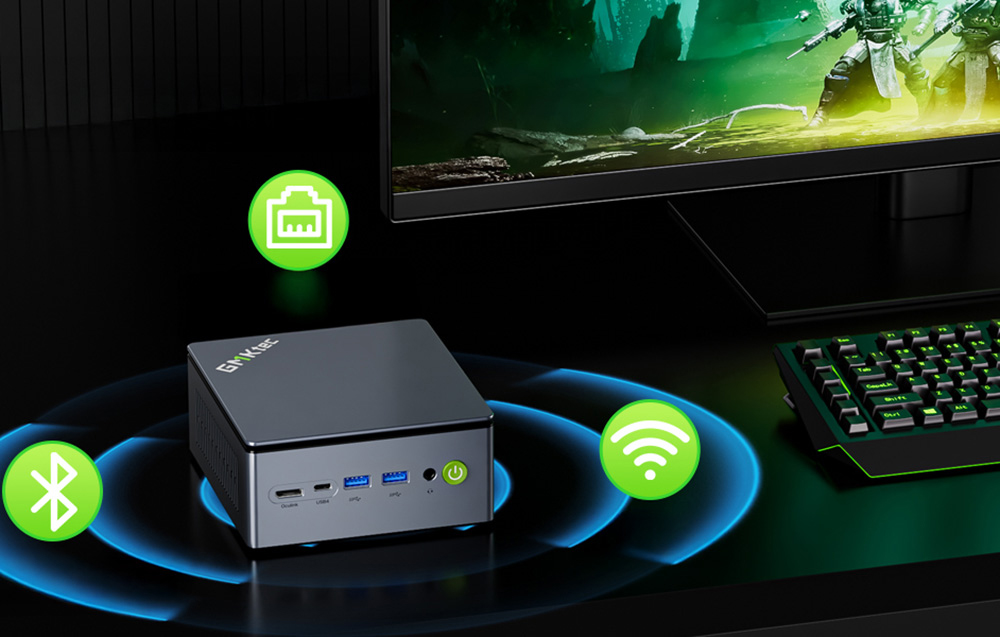

The M7 Ultra offers modern wireless communication technologies – Wi-Fi 6E and Bluetooth 5.2 – which ensure a fast and stable connection to the network and accessories such as keyboards, mice, headphones, and printers. Support for the 6 GHz band allows for even better bandwidth and lower latency compared to previous standards.

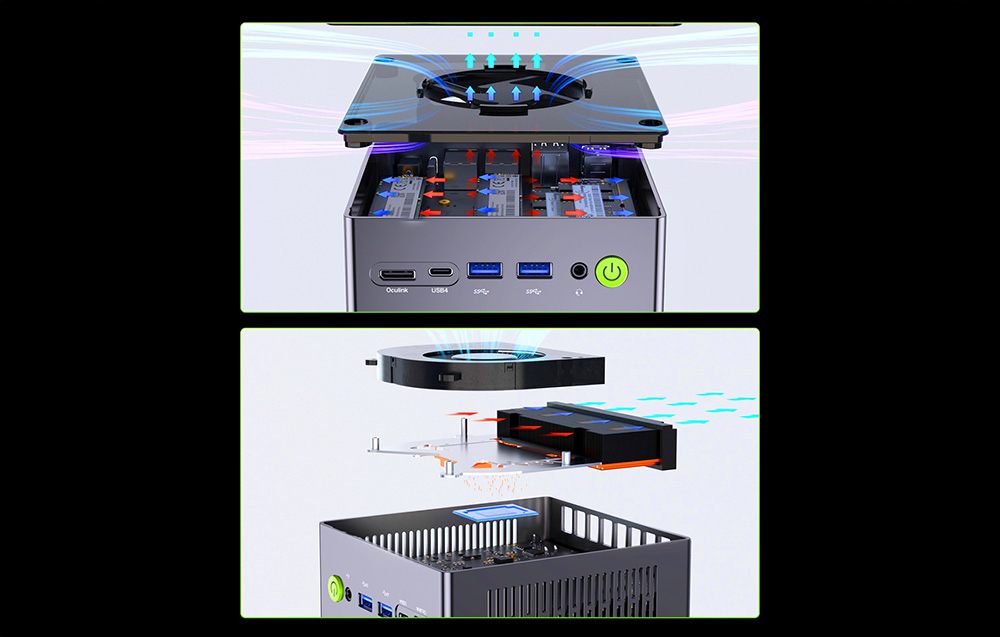

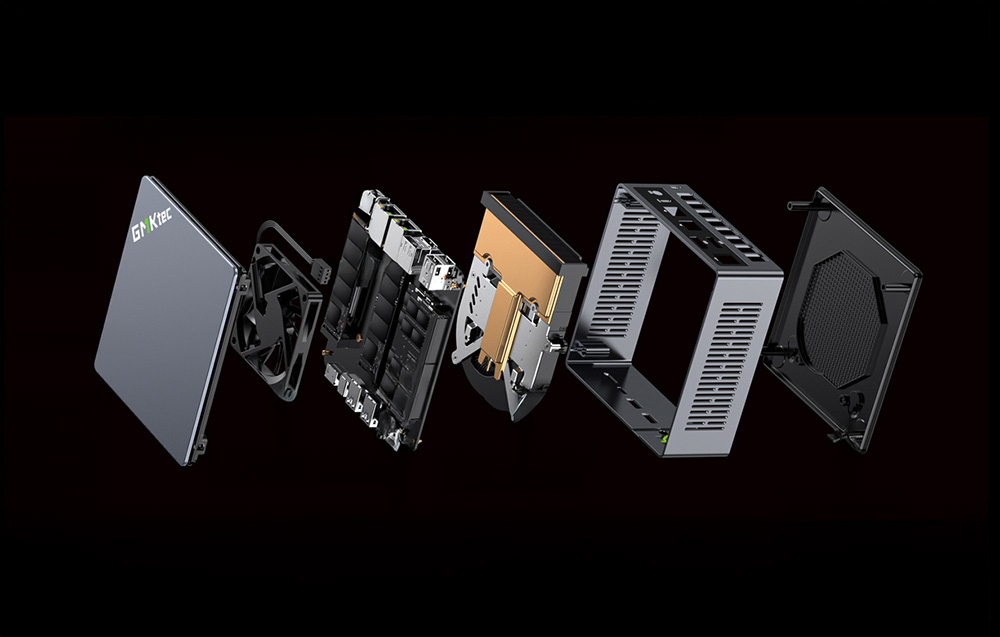

An efficient cooling system with dual fans keeps the operating temperature low even under heavy load. This allows the computer to maintain high stability during long-term operation, minimizing the risk of component overheating and ensuring quiet operation in the office or home studio.

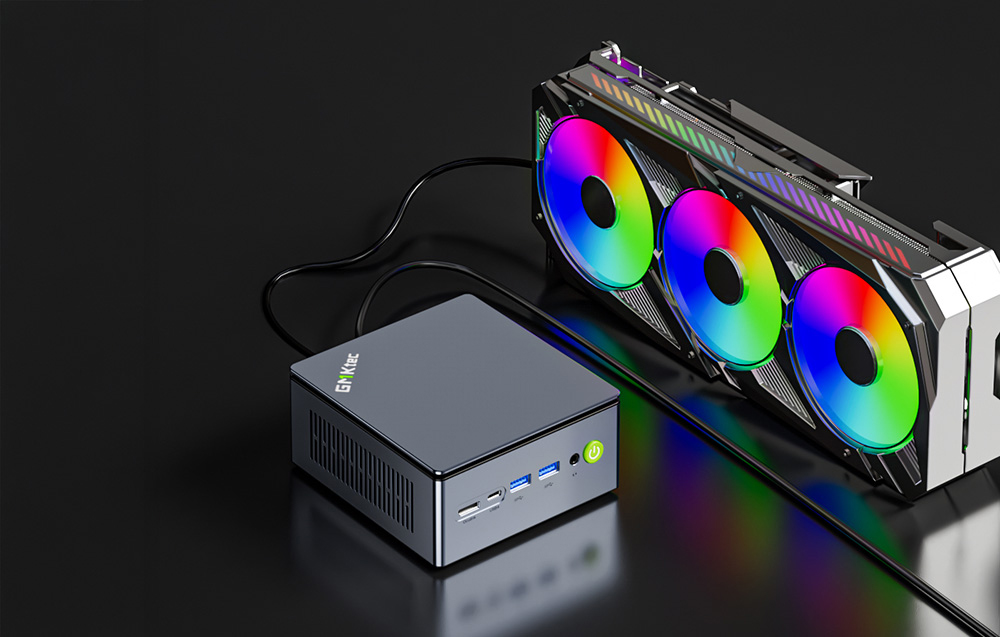

The GMKtec M7 Ultra Mini PC is designed to save space, measuring only 132 × 125 × 58 mm and weighing just 604 g. The device supports automatic power-on and Wake-on-LAN functions, making it ideal for server, office, and remote management environments. Full compliance with European standards (including2014/53/EU) allows for trouble-free sale and use within the EU.
Mini PC GMKtec M7 Ultra Ryzen 7 PRO 6850U 16GB 512GB Win 11 Pro - Specifications
General
- Brand
- GMKtec
- Model
- M7 Ultra
- Form Factor
- Mini PC
- Operating System
- Windows 11 Pro (Supports Linux, Ubuntu, Windows 10)
- Security
- TPM 2.0, Kensington Lock Slot
Processor
- CPU Model
- AMD Ryzen 7 PRO 6850U
- Cores / Threads
- 8 Cores / 16 Threads
- Max Clock Speed
- Up to 4.7 GHz
- Process Technology
- 6nm
- TDP
- 35W - 54W
Graphics & Display
- Graphics Type
- Integrated AMD Radeon 680M
- Max Resolution
- 8K @ 60Hz
- Multi-Display Support
- Up to 4 simultaneous displays
- Video Outputs
- 1x HDMI 2.1, 1x DisplayPort 2.0, 2x USB 4.0 (DP)
Memory & Storage
- Installed RAM
- 16 GB DDR5 4800MHz
- RAM Slots
- 2x SO-DIMM (Expandable up to 64 GB)
- Factory Storage
- 512 GB M.2 2280 PCIe SSD
- Storage Expansion
- 2x M.2 2280 PCIe slots (Supports up to 16 TB total)
Connectivity & Ports
- Front Ports
- 2x USB 3.2 Gen 2, 1x USB 4.0 (PD/DP/Data), 1x OCuLink (PCIe 4.0 x4), 1x 3.5mm Audio Jack
- Rear Ports
- 2x USB 2.0, 1x USB 4.0 (PD/DP/Data), 1x HDMI 2.1, 1x DisplayPort 2.0, 2x 2.5G RJ45 LAN, 1x Kensington Lock, 1x DC-In
- Ethernet
- 2x 2.5G RJ45 LAN (2500M / 1000M / 100M / 10M)
- Wireless Connectivity
- Wi-Fi 6E (Tri-Band 6GHz)
- Bluetooth
- Bluetooth 5.2
Physical & Power
- Dimensions
- 132 x 125 x 58 mm
- Weight
- 604 g
- Chassis Material
- Metal and High-Density Plastic
- Cooling System
- Dual-fan active thermal cooling
- Power Supply
- DC 19V / 6.32A (120W Power Adapter)
- VESA Mounting
- Supported (Bracket included)
Package Contents
- Included Accessories
- GMKtec M7 Ultra Mini PC, Power Adapter & AC Cable, HDMI Cable, VESA Mounting Bracket, User Manual / Warranty Card
