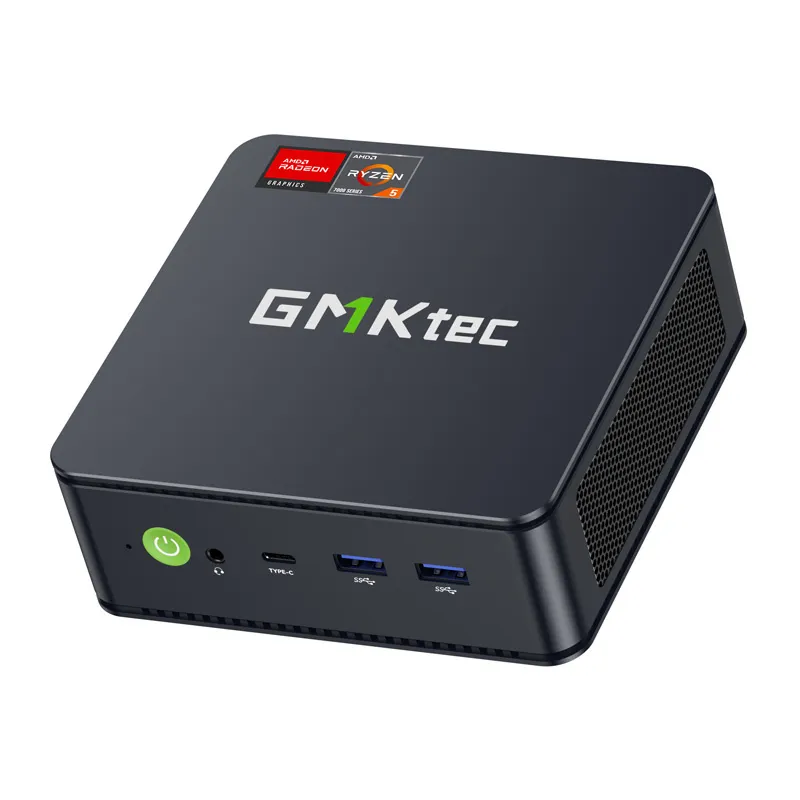

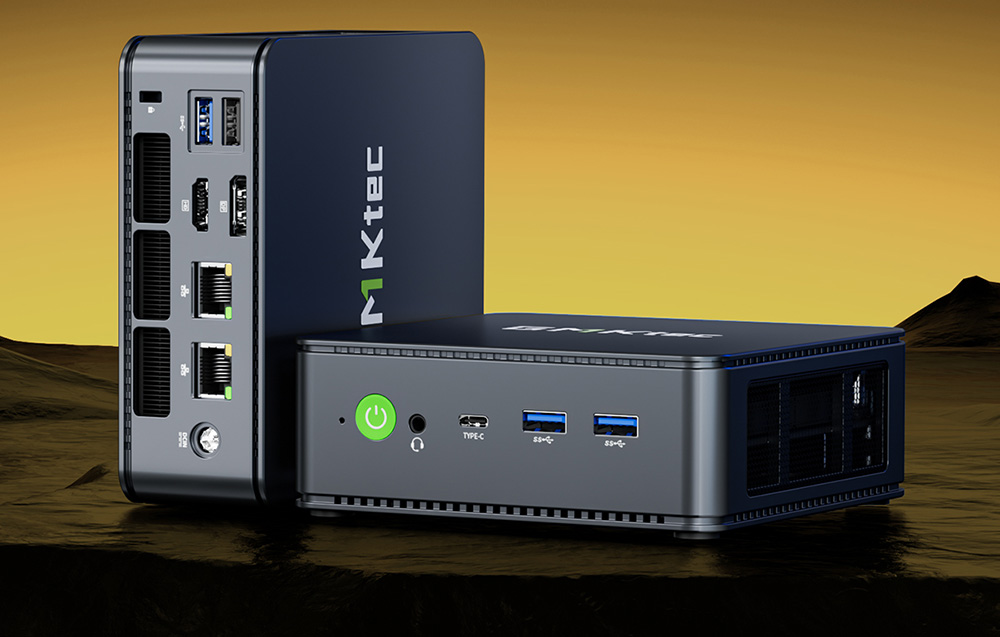

MINI PC GMKtec M6 Ultra AMD Ryzen 5 7640HS 16GM RAM + 512GB SSD WIN 11 PRO
SKU: INN-M6U-512
Brand: GMKtec
Unlock exceptional performance in an ultra-compact footprint with the GMKtec M6 Ultra Mini PC. Powered by the high-efficiency AMD Ryzen 5 7640HS processor featuring 6 cores and 12 threads built on an energy-efficient 4nm process, this compact desktop handles intensive multitasking, office productivity, and creative workflows with ease. Integrated AMD Radeon 760M RDNA3 graphics delivers fluid Full HD gaming, rich multimedia rendering, and effortless multi-monitor performance. Complete with ultra-fast Wi-Fi 6E, dual 2.5G LAN ports, versatile USB4 connectivity, and Windows 11 Pro pre-installed, the GMKtec M6 Ultra is the ultimate modern command center for work and play.
Key Features
- High-Performance Processing: Powered by AMD Ryzen 5 7640HS (up to 5.0 GHz) with 6 cores, 12 threads, and 16MB cache for lightning-fast performance.

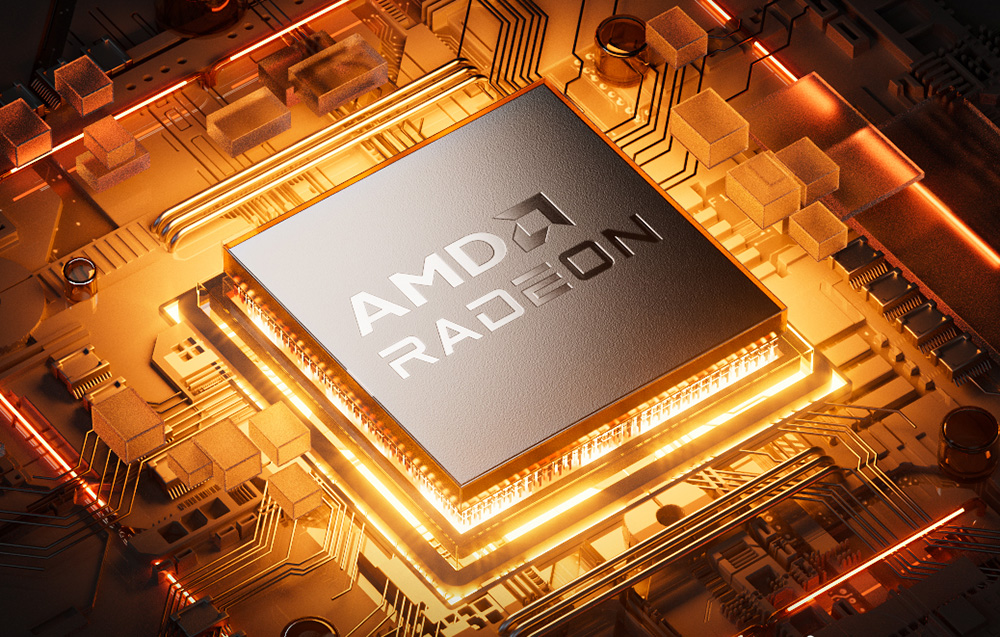

- RDNA 3 Graphics Architecture: Integrated AMD Radeon 760M graphics supports smooth gameplay, 4K/8K video processing, and graphics design.

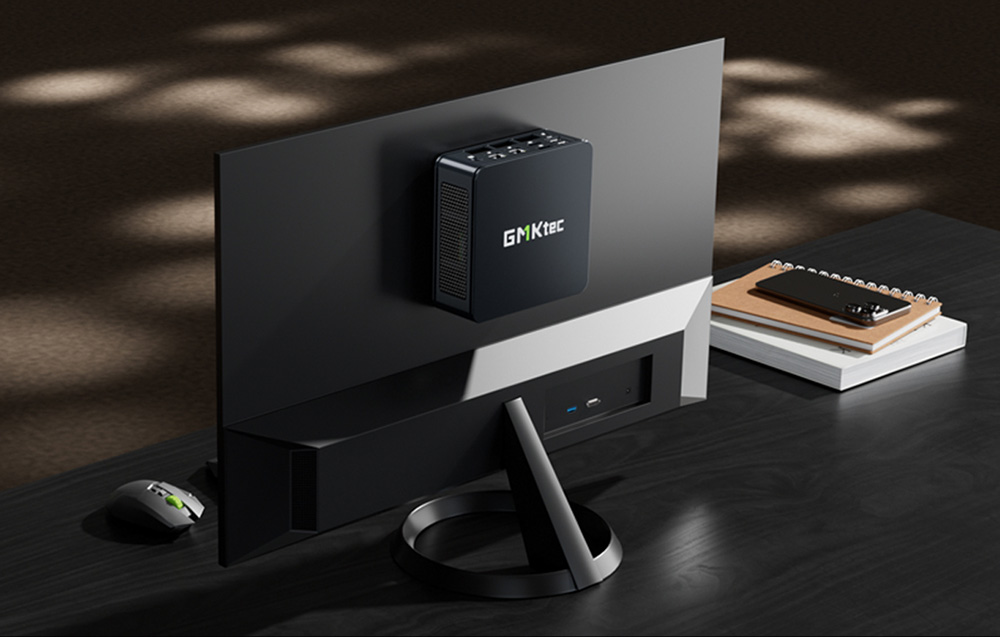

- Triple Screen Workstation: Connect up to 3 display monitors simultaneously via HDMI 2.0, DisplayPort, and full-function USB4.0.

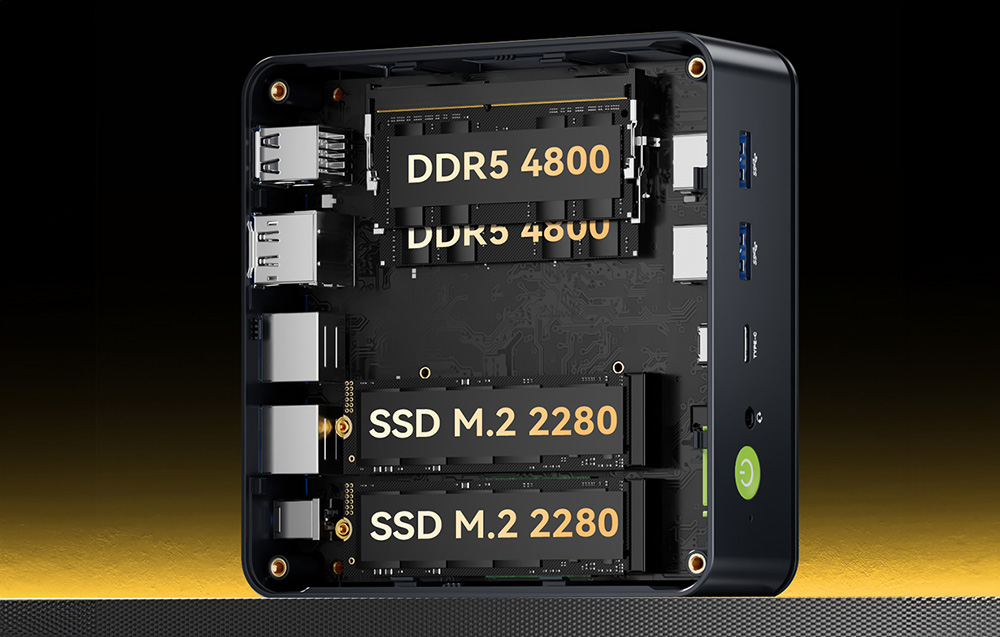

- High-Speed Memory & Storage: Includes 16 GB DDR5 RAM and 512 GB M.2 NVMe SSD, expandable up to 128 GB RAM and dual 8 TB SSDs (16 TB total).

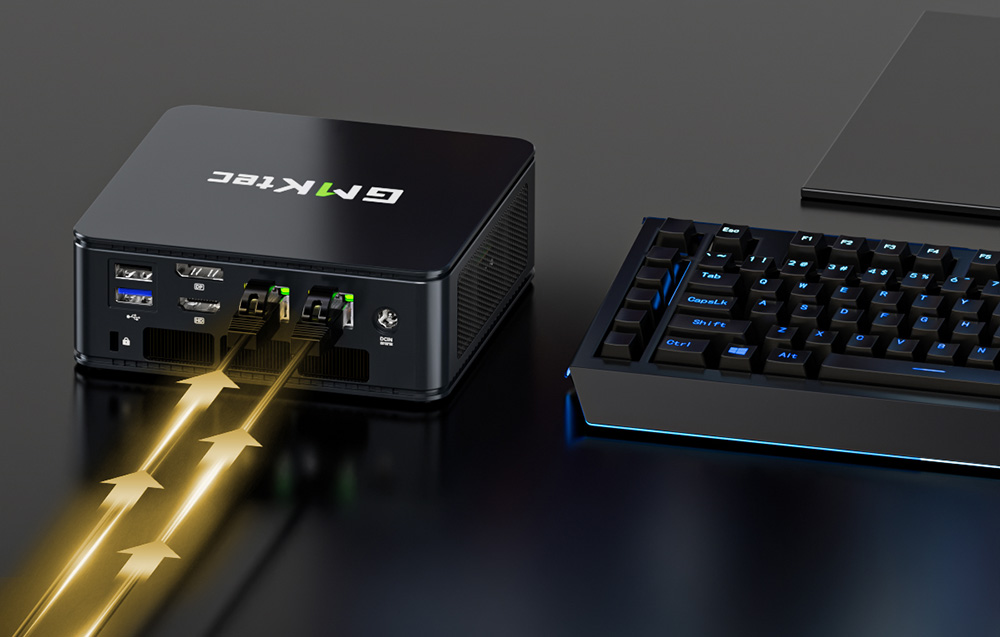

- Dual 2.5G LAN & Wi-Fi 6E: Ultra-fast networking with dual 2.5 Gigabit Ethernet ports and low-latency Wi-Fi 6E connectivity.
- Full-Function USB4 Port: Up to 40 Gbps data transfer, Power Delivery (100W in / 15W out), and 4K/8K video output.

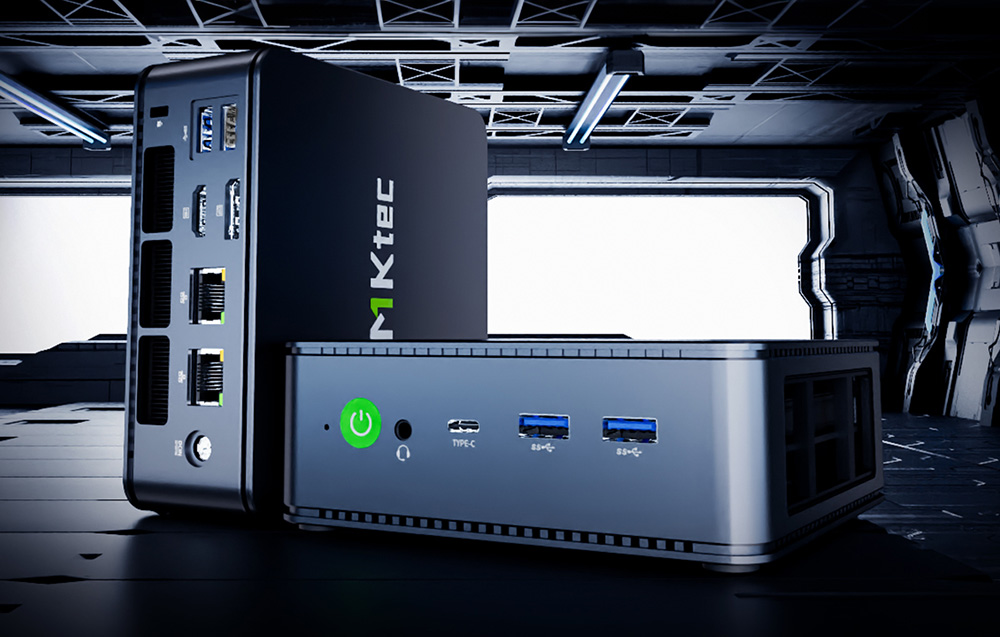

- Advanced Dual-Fan Cooling: Dual copper turbines and 360° airflow ensure stable temperatures and ultra-quiet operation (≤38 dB) across 3 switchable power modes.
- Pre-installed Windows 11 Pro: Ready for professional deployment out of the box, complete with VESA mount bracket for clean desk setups.
General
- Brand
- GMKtec
- Model
- M6 Ultra
- Operating System
- Windows 11 Pro (Linux supported)
- Chassis Material
- High-durability Plastic
- Color
- Dark Grey / Black
- Dimensions
- 128.8 × 127 × 47.8 mm
- Weight
- 502 g
- VESA Mounting
- Supported (Bracket and screws included)
Processor
- CPU Model
- AMD Ryzen 5 7640HS
- Cores / Threads
- 6 Cores / 12 Threads
- Base Clock
- 4.3 GHz
- Max Boost Clock
- Up to 5.0 GHz
- L3 Cache
- 16 MB
- Manufacturing Process
- TSMC 4nm FinFET
- Max TDP
- 50 W (3 Performance Modes: 35W / 45W / 50W)
Graphics
- Graphics Processing Unit
- Integrated AMD Radeon 760M
- Architecture
- RDNA 3
- GPU Core Count
- 8 Cores
- GPU Clock Speed
- Up to 2600 MHz
- Multi-Display Support
- Up to 3 Displays simultaneously
Memory & Storage
- Installed RAM
- 16 GB DDR5 4800 MT/s
- RAM Slots
- 2x SO-DIMM DDR5
- Max Memory Expansion
- Up to 128 GB (64 GB per slot)
- Installed Storage
- 512 GB M.2 2280 NVMe SSD
- Storage Slots
- 2x M.2 2280 PCIe slots
- Max Storage Expansion
- Up to 16 TB total (2x 8 TB)
Connectivity & Networking
- Wi-Fi Standard
- Wi-Fi 6E (2.4GHz / 5GHz / 6GHz bands)
- Bluetooth
- Bluetooth 5.2
- Ethernet
- 2x 2.5G RJ45 Gigabit LAN (Intel i226V)
I/O Ports
- USB Ports
- 1x USB4.0 (40Gbps, Full Function), 3x USB 3.2 Gen 2, 1x USB 2.0
- Video Output
- 1x HDMI 2.0 (4K@60Hz), 1x DisplayPort (8K@60Hz), 1x USB-C / USB4 (DisplayPort)
- Audio
- 1x 3.5mm Audio Jack (CTIA)
- Power Input
- 1x DC-in Jack
Cooling & Power
- Cooling System
- Dual Copper Turbines & Dual Fans with 360° Airflow
- Noise Level
- ≤38 dB
- Power Adapter
- 120W (19V / 6.32A)
Package Contents
- Included Accessories
- GMKtec M6 Ultra Mini PC, 120W Power Adapter & Cable, HDMI Cable, VESA Mount Bracket & Screws, User Manual
