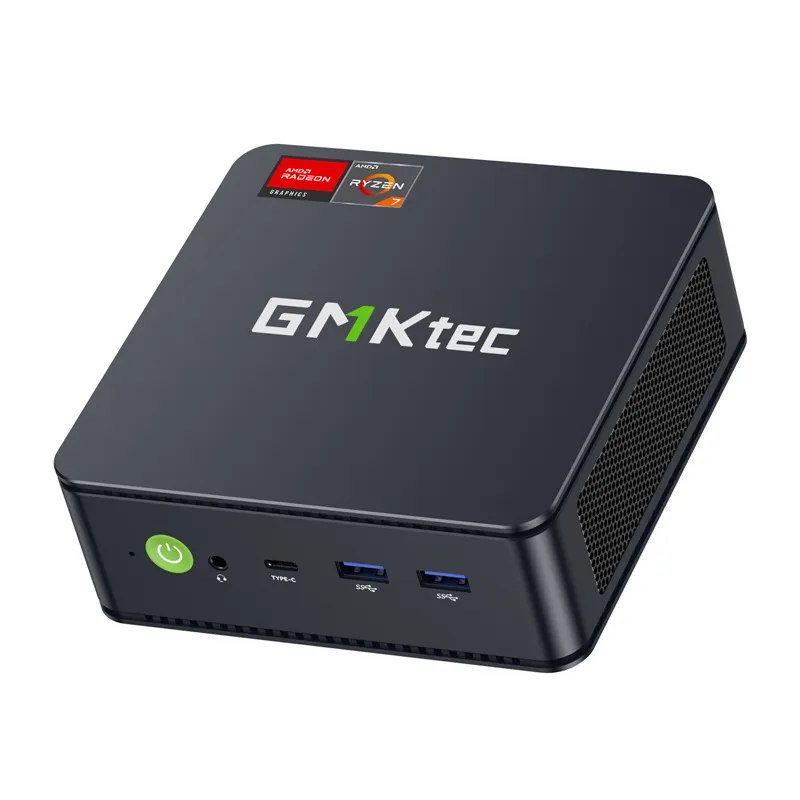

MINI PC GMKtec M5 Ultra AMD Ryzen 7 7730U 32GB RAM + 1TB SSD WIN 11 Pro
The GMKtec M5 Ultra Mini PC packs workstation-class performance into an ultra-compact, space-saving form factor. Powered by an 8-core, 16-thread AMD Ryzen™ 7 7730U processor (boost up to 4.5 GHz) and paired with 32GB of 3200MHz DDR4 RAM and a lightning-fast 1TB NVMe M.2 SSD, this Mini PC handles demanding office workloads, multi-threaded multitasking, photo/video editing, and high-resolution media playback with effortless ease.
Designed for power users, remote professionals, and content creators in Cyprus, the GMKtec M5 Ultra delivers seamless triple-display support up to 8K resolution via HDMI, DisplayPort, and USB-C. Advanced dual 2.5GbE LAN ports coupled with Wi-Fi 6E offer enterprise-grade networking speed and low latency, while the intelligent Dual Surround Cooling system ensures near-silent operation even under heavy computational load.
Key Features
- 8-Core AMD Ryzen™ 7 7730U Powerhouse: Built on 7nm Zen 3 architecture, achieving up to 4.5 GHz boost for smooth multitasking and software responsiveness.
- Integrated AMD Radeon™ Graphics: 8-core GPU clocked at 2000 MHz delivers ultra-clear visuals and smooth 8K media rendering.

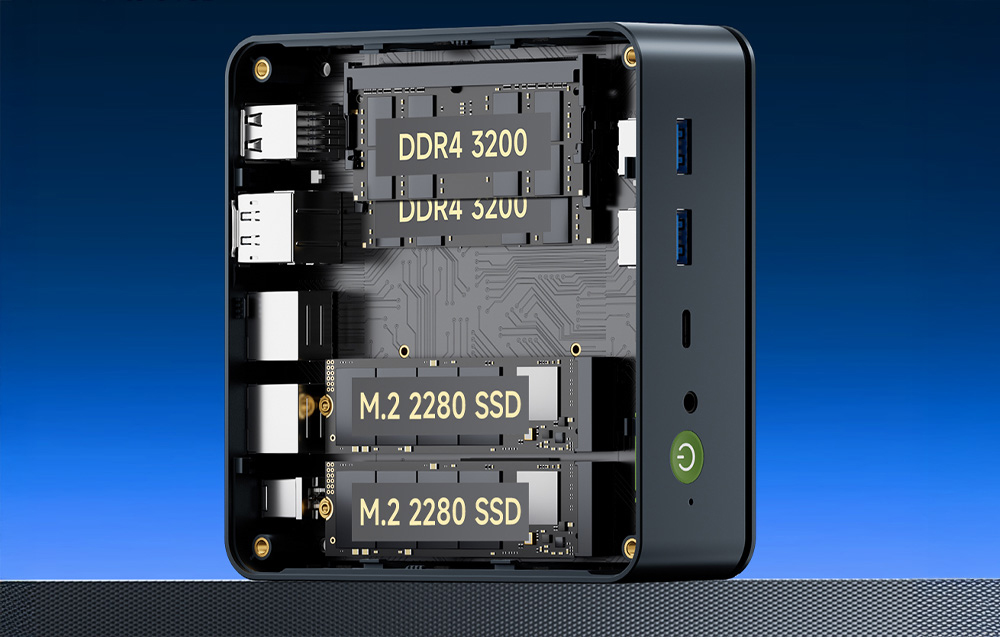

- Massive Memory & Fast Storage: Comes loaded with 32GB DDR4 RAM (expandable to 64GB) and a 1TB M.2 PCIe SSD, with support for up to 16TB total storage via dual M.2 slots.
- Triple 8K Display Output: Simultaneous 3-screen workflow layout via HDMI 2.0, DisplayPort, and Full-Featured USB-C ports.
- Dual 2.5G Ethernet & Wi-Fi 6E: Ultra-fast wired dual-LAN network redundancy powered by Intel i226V, plus latest Wi-Fi 6E and Bluetooth 5.2 connectivity.
- Quiet & Efficient Thermal Architecture: Dual Surround Cooling Vents with intelligent speed control and dust resistance for long-term stability.
- Pre-installed Windows 11 Pro: Ready for commercial and professional enterprise deployment straight out of the box.
General
- Brand
- GMKtec
- Model
- M5 Ultra
- Operating System
- Windows 11 Pro (Pre-installed), Linux compatible
- Form Factor
- Mini PC
Processor
- CPU Model
- AMD Ryzen™ 7 7730U
- Cores / Threads
- 8 Cores / 16 Threads
- Base Clock
- 2.0 GHz
- Max Boost Clock
- Up to 4.5 GHz
- Architecture
- Zen 3 (7nm)
- TDP
- 35 W
Graphics
- Graphics Type
- Integrated AMD Radeon™ Graphics
- GPU Cores
- 8
- Graphics Frequency
- 2000 MHz
- Max Output Resolution
- Up to 8K
Memory & Storage
- Installed RAM
- 32 GB DDR4 3200 MHz
- Maximum RAM
- Up to 64 GB (2x SO-DIMM)
- Primary SSD
- 1 TB M.2 2280 PCIe 3.0 NVMe SSD
- Storage Expansion
- 2x M.2 2280 Slots (Supports up to 8TB each, Total max 16TB)
Networking & Wireless
- Ethernet
- Dual RJ45 2.5G LAN (Intel i226V controller, 10/100/1000/2500 Mbps)
- Wi-Fi
- Wi-Fi 6E (Tri-band 2.4/5/6 GHz, PCIe interface)
- Bluetooth
- Bluetooth 5.2

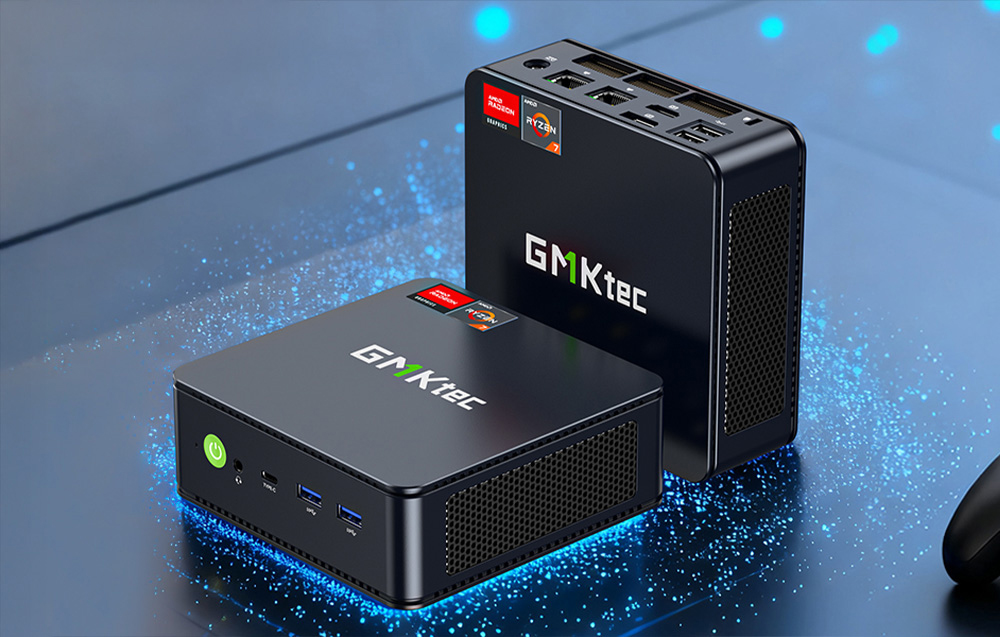

Ports & I/O
- Front Panel
- 2x USB 3.2 Gen2, 1x USB-C (DisplayPort support), 1x 3.5mm Audio Jack, Power Button
- Rear Panel
- 2x USB 2.0, 1x HDMI 2.0, 1x DisplayPort, 2x RJ45 2.5G LAN, 1x DC-IN Jack, Security Lock Slot
- Display Outputs
- 3 Displays Max (1x HDMI 2.0, 1x DisplayPort, 1x USB-C Alt-Mode)
Physical & Power
- Dimensions
- 128.8 x 127 x 47.8 mm
- Weight
- 512 g
- Cooling System
- Dual Surround Cooling Vents & Aluminum Heatsink
- VESA Mountable
- Yes (Bracket included)
- Power Supply
- DC 19V / 3.42A (65W, 5.5/2.5mm)
Package Contents

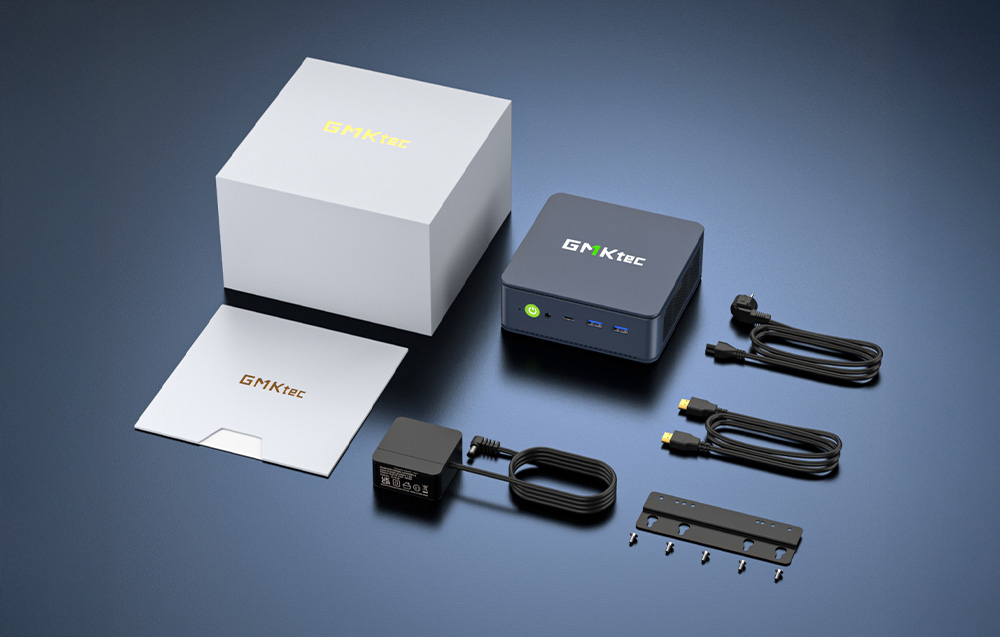

- In the Box
- GMKtec M5 Ultra Mini PC, 65W Power Adapter & Cable, HDMI Cable, VESA Mount & Screws, User Manual
