Mini PC GMKtec M3 Intel i5-12450H 16GB RAM + 512GB SSD WIN 11 Pro - Description

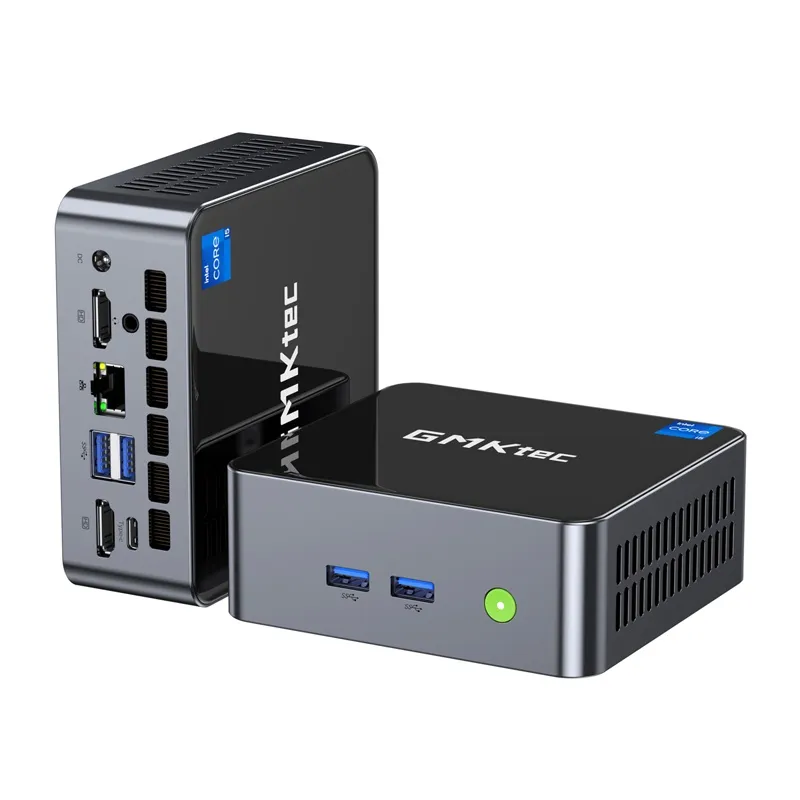

The GMKtec M3 is a unit based on an 8-core, 12-threaded Intel Core i5-12450H processor that clocks up to 4.4GHz and provides high performance for multitasking. The use of 16GB DDR4 dual channel RAM and a 512GB PCIe 3.0 SSD translates into fast booting, lightning-fast data loading and stable application performance. The mini PC supports simultaneous operation on 3 monitors at 4K resolution - 2 HDMI 2.0 outputs and a USB-C port with DisplayPort 1.4 support allow you to expand your workstation without additional adapters. The device supports Wi-Fi 6, Bluetooth 5.2 and 2.5G wired networking. The compact form factor (114 x 106 x 42.5 mm) goes hand in hand with plenty of ports and pre-installed Windows 11 Pro. The GMKtec M3 computer can be placed directly on a desk or mounted on the back of a monitor with the included VESA mount.
The Intel Core i5-12450H processor, offering 8 cores and 12 threads, is responsible for the computer's performance. With a base clock speed of 3.3 GHz and turbo capabilities of up to 4.4 GHz, it ensures high system responsiveness and smooth operation for office, multimedia and graphics processing tasks. Integrated Intel UHD Graphics (48EU) provides efficient image processing.

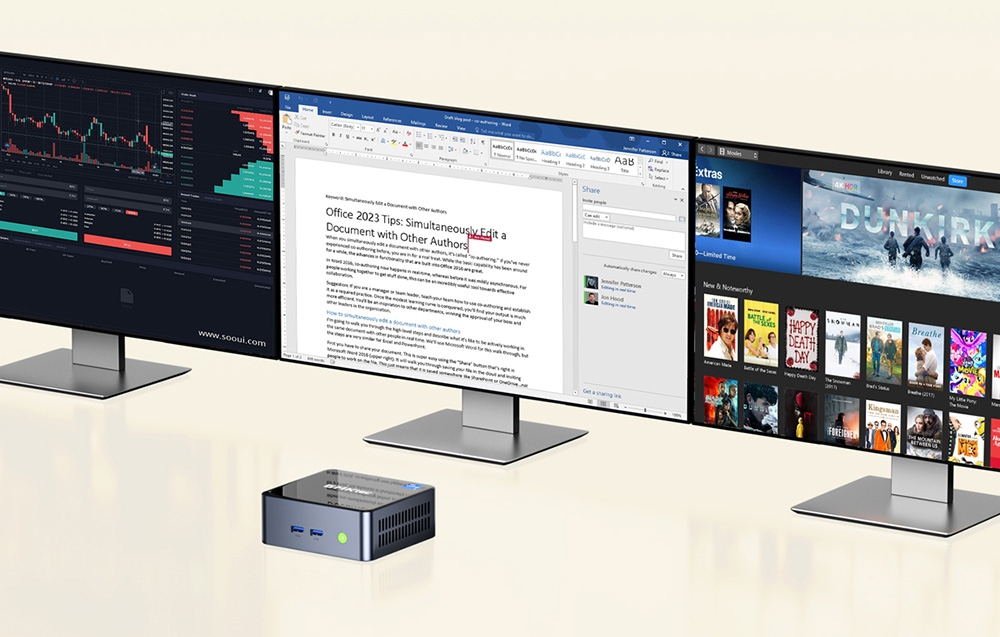

With 2 HDMI 2.0 ports and one USB-C with DisplayPort 1.4 support, the GMKtec M3 mini PC allows you to connect 3 monitors simultaneously and display images in 4K resolution at 60 Hz refresh rate. So you can comfortably work with, for example, a spreadsheet, a browser and an office application - everything will be visible on separate screens. The solution used is particularly useful for data analysis, content editing or project management.

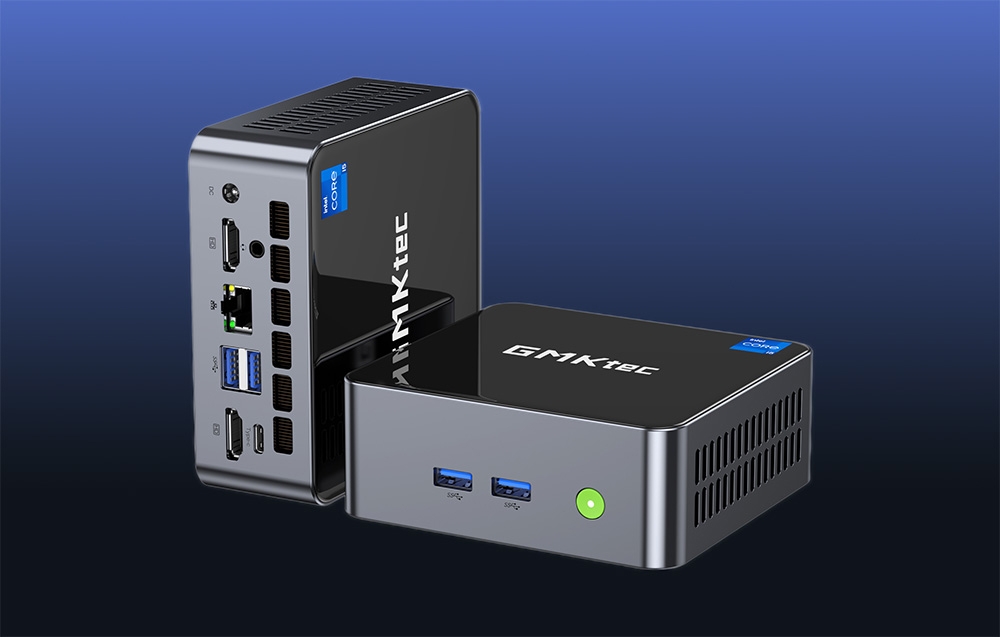

The 512GB PCIe 3.0 SSD provides efficient operation of the system and applications. Reading data at speeds of up to 3,500 MB/s reduces boot time and improves the overall responsiveness of the computer. The device allows you to expand storage space - it supports M.2 2280 PCIe media up to 2 TB and M.2 2242 SATA media up to 2 TB.

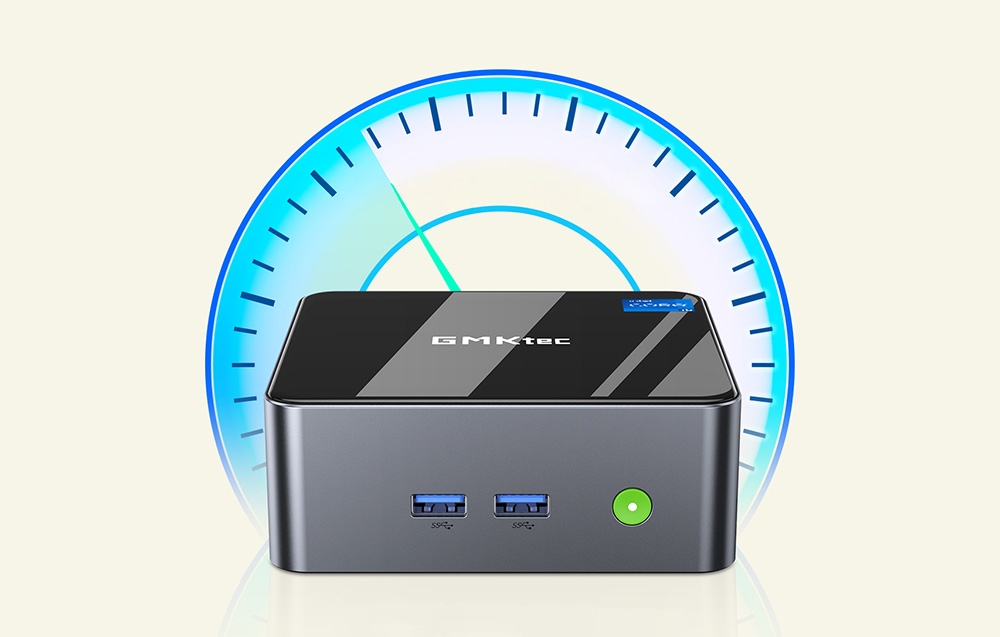

The installed 16 GB of 3200 MHz DDR4 memory operates in dual-channel mode (2 x 8 GB), which improves system throughput and stability when running multiple applications simultaneously. This configuration works well for office and educational tasks, as well as handling light graphics or multimedia projects.
The wireless connectivity module supports dual-band Wi-Fi 6 in a 2x2 configuration, offering speeds of up to 2,400 Mbps. This standard provides faster transfer speeds, lower latency and stable connectivity in environments with multiple active devices. Bluetooth 5.2 enables efficient pairing with peripherals such as keyboards, mice and headphones.

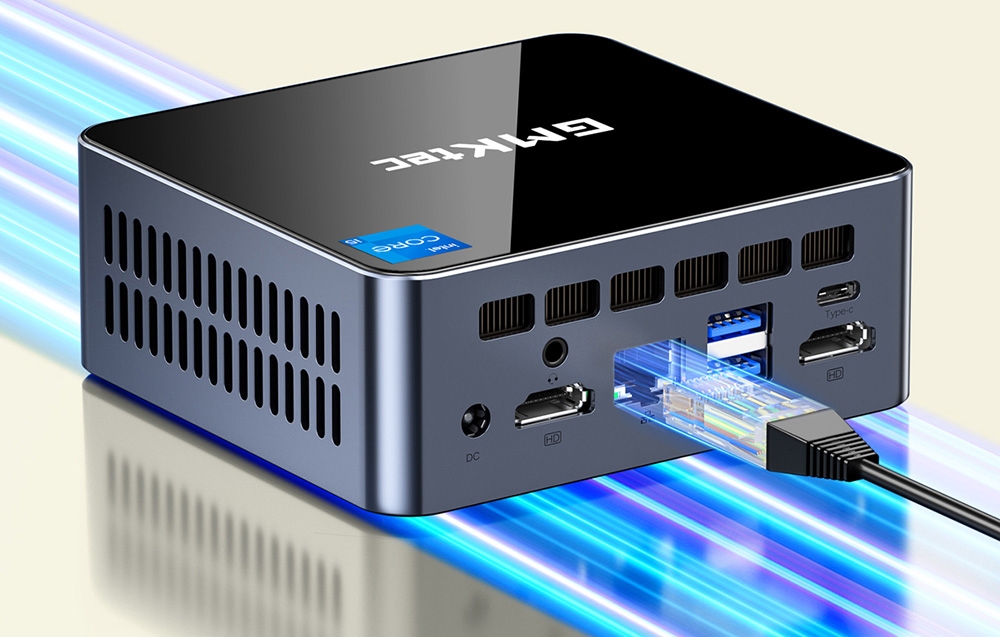

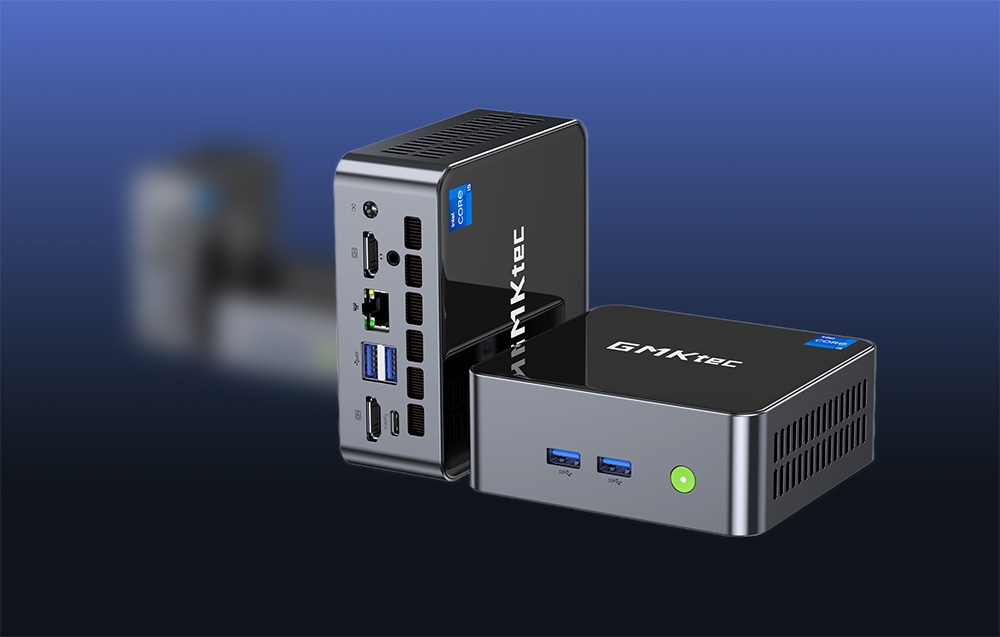

An RJ45 port based on the Intel I225V controller enables wired network connectivity of up to 2.5 Gbps. Tests have yielded write speeds of up to 271 MB/s and transmission speeds of up to 230 MB/s - such parameters are ideal for working with large files, operating local servers, and network applications requiring stability and high bandwidth. The device works with Linux- and Proxmox-based systems.

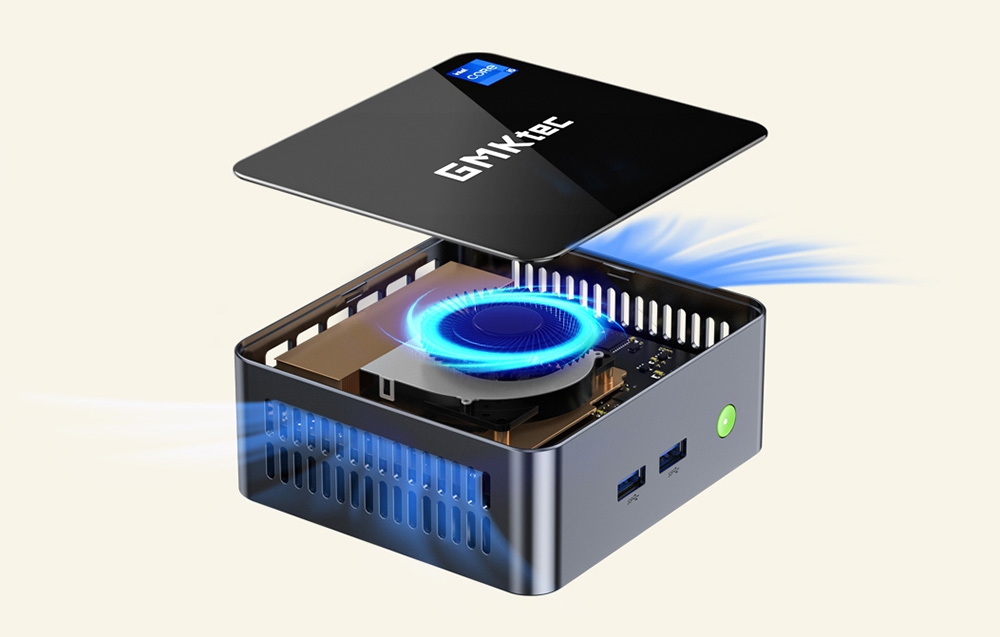

The cooling system is based on copper heatpipes and a turbine-type fan. The airflow is designed to effectively dissipate heat from all sides, allowing the device to maintain optimal operating temperatures even during long and intensive use. The design minimizes noise, which positively affects the comfort of work.

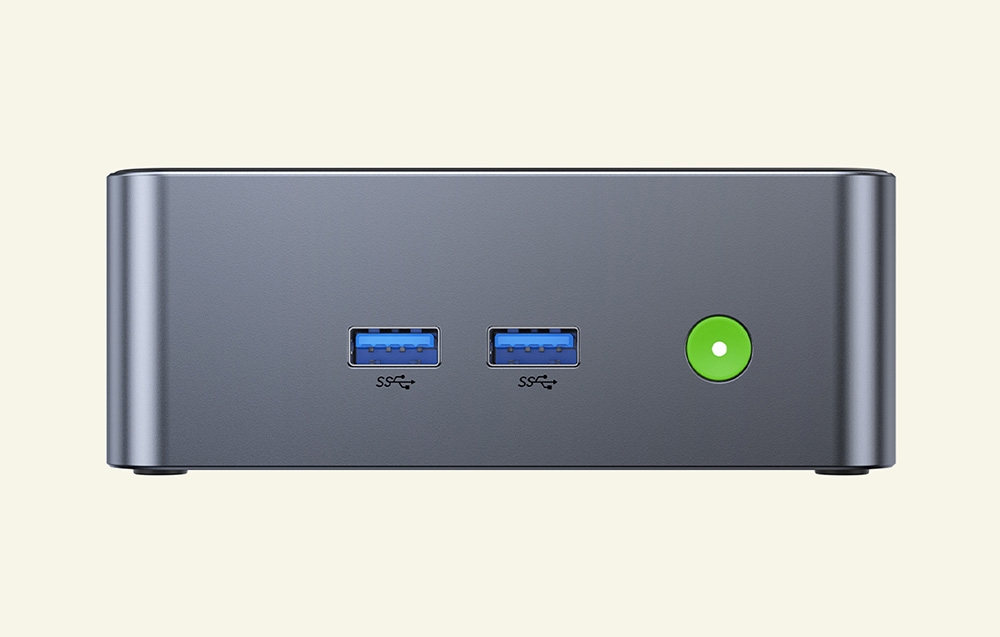

Despite its compact size, the device offers a wide selection of ports, including 3x USB-A 3.2, 1x USB-A 2.0, 1x USB-C (with DisplayPort 1.4 and data transfer support), 2x HDMI 2.0, 1x 3.5mm audio jack and 1x LAN port. This configuration allows you to connect multiple accessories simultaneously without the need for additional adapters.
Mini PC GMKtec M3 Intel i5-12450H 16GB RAM + 512GB SSD WIN 11 Pro - Specifications
General
- Brand
- GMKtec
- Model
- M3 (M3-512)
- Operating System
- Windows 11 Pro (Supports Linux / Proxmox)
- Housing Material
- Oxidized sandblasted metal frame, tempered glass top, plastic bottom
- VESA Mount Support
- Yes (Mount and screws included)
- Dimensions
- 114 x 106 x 42.5 mm
- Weight
- 430 g
Processor
- Processor Model
- Intel Core i5-12450H
- Cores / Threads
- 8 Cores / 12 Threads
- Base Frequency
- 3.3 GHz
- Max Turbo Frequency
- 4.4 GHz
- Power Consumption (TDP)
- 45 W
Graphics & Display
- Graphics Processor
- Integrated Intel UHD Graphics (48EU)
- Multi-Monitor Support
- Up to 3 displays simultaneously
- Maximum Display Resolution
- 4K @ 60Hz
Memory & Storage
- RAM Capacity
- 16 GB (2 x 8 GB)
- RAM Type
- DDR4 3200 MHz (Dual-channel)
- Internal Storage
- 512 GB M.2 2280 PCIe 3.0 NVMe SSD
- Read Speed
- Up to 3,500 MB/s
- Storage Expansion
- Support M.2 2280 PCIe up to 2 TB & M.2 2242 SATA up to 2 TB
Networking & Connectivity
- Wi-Fi
- Wi-Fi 6 (802.11ax, Dual-band 2x2, up to 2400 Mbps)
- Bluetooth
- Bluetooth 5.2
- Ethernet LAN
- 1x 2.5 Gbps RJ45 (Intel I225V Controller)
- USB Ports
- 3x USB-A 3.2, 1x USB-A 2.0, 1x USB-C (Data & DP 1.4)
- Video Outputs
- 2x HDMI 2.0, 1x USB-C (DisplayPort 1.4)
- Audio Interface
- 1x 3.5mm Headphone/Microphone Combo Jack
Power & Cooling
- Cooling System
- Copper heatpipes with quiet turbine fan
- Power Supply Input
- 100-240V 50/60Hz
- Power Supply Output
- 20V / 5A (100W, DC 5.5/2.5mm)

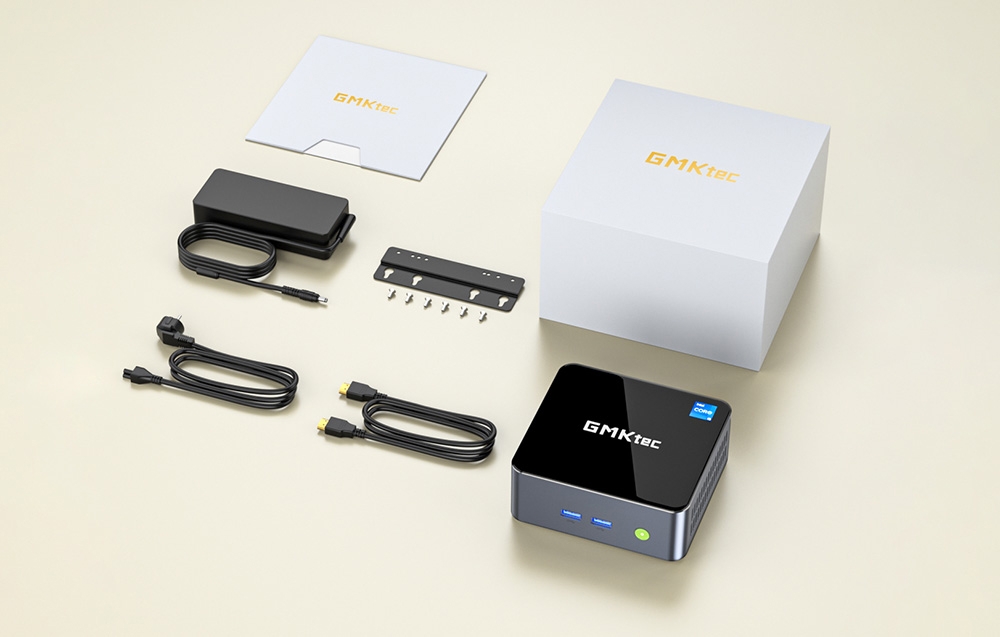

Package Contents
- Included Accessories
- GMKtec M3 Mini PC, HDMI Cable, Power Adapter with Power Cable, VESA Mount with Screws, User Manual
