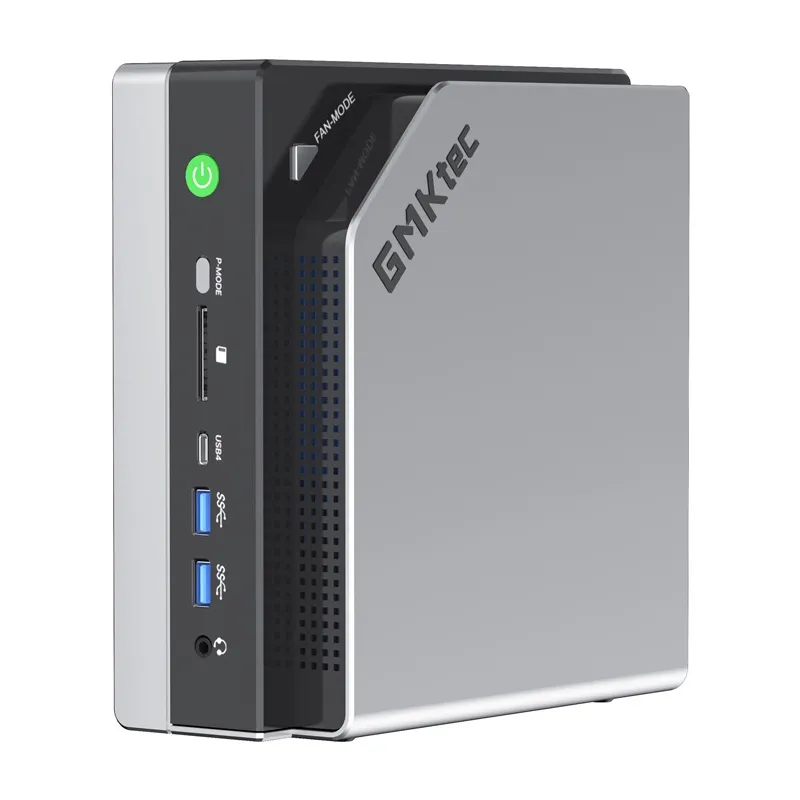

Mini PC GMKtec EVO-X2 AMD Ryzen AI Max+ 395 - 128GB RAM + 2TB SSD WIN 11 Pro
SKU: INN-MINIPCRYZM128RAM2048
Brand: GMKtec
Experience desktop-class workstation performance in an ultra-compact footprint with the GMKtec EVO-X2 Mini PC. Engineered for demanding professionals, content creators, gamers, and AI developers, this powerhouse features the revolutionary AMD Ryzen™ AI Max+ 395 processor built on Zen 5 architecture, paired with a massive 128GB of high-speed LPDDR5X RAM and a 2TB PCIe NVMe SSD. Pre-installed with Windows 11 Pro, the EVO-X2 delivers unbelievable computing power for heavy multitasking, high-end video editing, 3D rendering, and local AI model execution.
Key Features
- Unmatched Processor Performance: Powered by the 16-core, 32-thread AMD Ryzen™ AI Max+ 395 with boost clock speeds up to 5.1 GHz, 80MB cache, and scalable TDP up to 140W for extreme performance under load.
- Next-Gen AMD Radeon 8060S Graphics: Integrated RDNA 3.5 architecture featuring 40 Compute Units delivers RTX 4070-level graphics capability for AAA gaming and intensive visual work.
- Massive 128GB LPDDR5X 8000MHz RAM: Eight-channel high-speed memory ensures effortless handling of complex datasets, 8K video timelines, and multi-app workflows.
- Advanced AI Workstation (XDNA 2): Integrated NPU with up to 126 TOPS total system AI performance, optimized for local LLM execution, MidJourney generation, and automated workflows.
- Extensive Quad-Display Support: Drive up to four 8K displays simultaneously via HDMI 2.1, DisplayPort 1.4, and dual 40Gbps USB4 ports.
- Next-Gen Wireless & Wired Networking: Features Wi-Fi 7 with ultra-fast transfer speeds, Bluetooth 5.4, and a 2.5G LAN Ethernet port for seamless connectivity.
- Pro-Grade Thermal Solution: Equipped with a triple heat-pipe architecture, dual CPU cooling fans, and dedicated memory/SSD fans for sustained, quiet cooling, accented by customizable 16-mode RGB lighting.
General
- Brand
- GMKtec
- Model
- EVO-X2
- Operating System
- Windows 11 Pro (Linux supported)
- Housing Material
- Metal & High-Grade Plastic
- Dimensions
- 186 x 77 x 192 mm
- Weight
- 1652 g
- TPM Support
- TPM 2.0 Enabled
Processor & AI Engine
- Processor
- AMD Ryzen™ AI Max+ 395
- Architecture
- Zen 5 (4nm FinFET)
- Cores / Threads
- 16 Cores / 32 Threads
- Max Clock Speed
- Up to 5.1 GHz
- Cache
- 80 MB Total (16 MB L2 + 64 MB L3)
- Configurable TDP
- 45W - 120W (Up to 140W Peak)
- AI NPU Architecture
- AMD XDNA 2
- Total AI Performance
- Up to 126 TOPS (50 TOPS NPU)
Graphics & Video Output
- Graphics Processor
- AMD Radeon™ 8060S Graphics
- Graphics Architecture
- RDNA 3.5
- Compute Units
- 40 CUs
- Multi-Display Support
- Up to 4 Displays simultaneously (Up to 8K Resolution)
- Video Ports
- 1x HDMI 2.1, 1x DisplayPort 1.4 HBR3, 2x USB4.0 (DP Output)
Memory & Storage
- RAM Capacity
- 128 GB
- RAM Type
- LPDDR5X (8-Channel)
- RAM Clock Speed
- 8000 MHz
- Installed Storage
- 2 TB M.2 2280 PCIe NVMe SSD
- Storage Expansion
- 2x M.2 2280 NVMe slots (Supports up to 8TB per slot, 16TB total)
- Card Reader
- Front SDXC Card Reader
Connectivity & Ports
- Wi-Fi
- Wi-Fi 7 (Up to 46.4 Gbps bandwidth)
- Bluetooth
- Bluetooth 5.4
- Ethernet LAN
- 1x 2.5G LAN (2500 Mbps RJ45)

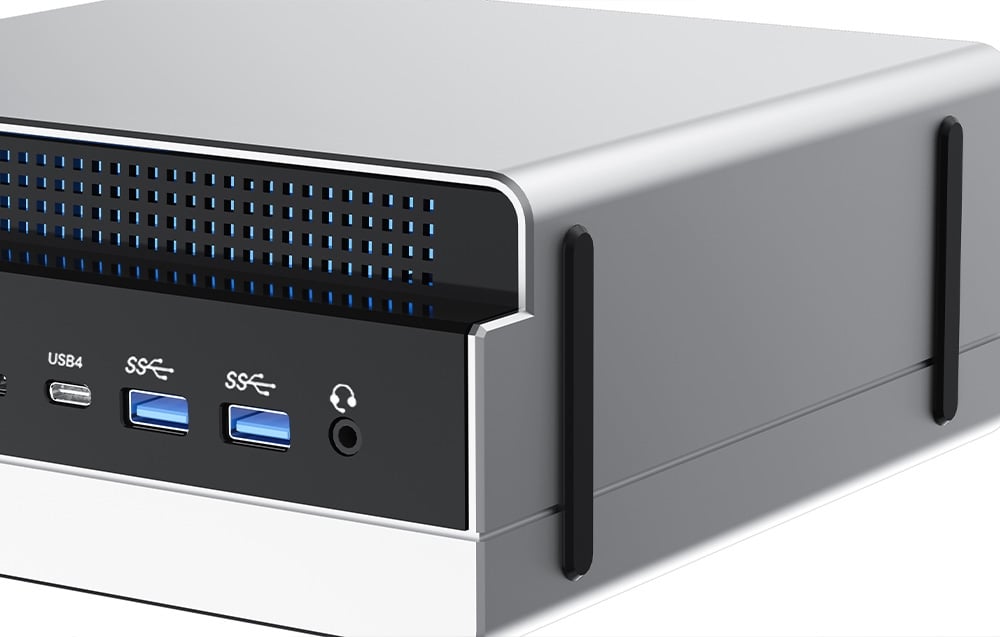

- Front I/O Ports
- 2x USB-A 3.2 (10Gbps), 1x USB4.0 (40Gbps), 1x SDXC Card Reader, 1x 3.5mm CTIA Audio Jack
- Rear I/O Ports
- 1x USB-A 3.2, 2x USB-A 2.0, 1x USB4.0 (40Gbps), 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5G RJ45 LAN, 1x 3.5mm Audio Jack
Cooling & Power
- Cooling System
- Triple Heat Pipes, Dual CPU Fans, Dedicated RAM/SSD Fans
- Lighting
- Customizable RGB Backlighting (16 Modes)
- Power Supply
- 230W Power Adapter (19.5V / 11.8A, DC 5.5/2.5mm)
