Mini PC GEEKOM IT12 Max Core Ultra 5 125U 16GB 500GB Win11 Pro
SKU: INN-IT12M-125U
Brand: Geekom
Experience next-generation computing efficiency with the GEEKOM IT12 Max Mini PC. Powered by the advanced Intel® Core™ Ultra 5 125U processor (Meteor Lake architecture) and backed by 16 GB LPDDR5 RAM alongside a ultra-fast 500 GB PCIe 4.0 SSD, this compact workstation delivers heavy-duty multitasking, smooth data analytics, and seamless AI application handling in a ultra-compact desktop footprint. Pre-installed with Windows 11 Pro, it comes deployment-ready out of the box for home, corporate office, or virtualization environments.
Key Features
- Intel® Core™ Ultra Performance: Driven by Intel Meteor Lake architecture featuring built-in AI acceleration, high-speed execution, and optimized power efficiency.
- Quad-Display Workstation: Integrated Intel® Graphics effortlessly drives up to four 4K screens or two ultra-crisp 8K displays via dual USB4 and HDMI outputs.
- Extensive Connectivity Hub: Equipped with 15 built-in ports including dual 2.5G LAN ports, 2 x USB4 with DisplayPort, 5 x USB 3.2 Gen 2 Type-A, and a high-speed SD 4.0 card reader.

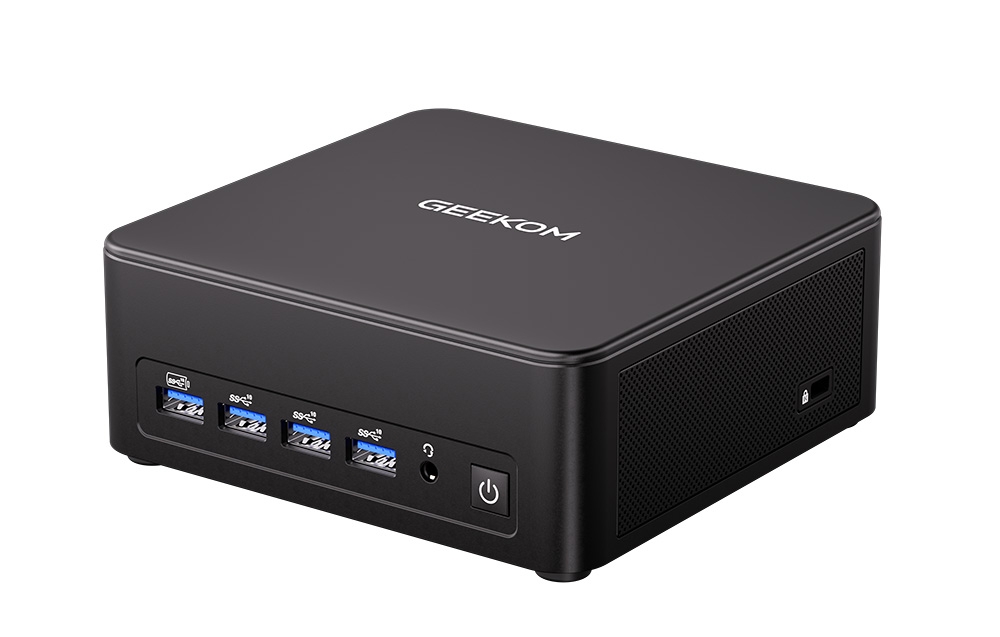

- IceBlast 3.0 Cooling System: Dual copper heat pipes with an intelligent, whisper-quiet thermal control fan designed for rigorous 24/7 continuous operation.
- Built to Last: Reinforced die-cast metal interior frame supporting up to 200 kg of compression pressure, complete with a space-saving VESA monitor mount.
- Expandable Storage & OS Versatility: M.2 PCIe 4.0 storage expandable up to 2 TB plus an additional 2.5-inch SATA drive bay; supports Windows 11, Linux, Ubuntu, Proxmox VE, and VMware ESXi.
General
- Brand
- Geekom
- Model
- GEEKOM IT12 Max
- Operating System
- Windows 11 Pro
- Security
- dTPM 2.0 Hardware Security Module, Kensington Lock Slot
- Continuous Operation
- Designed for 24/7 operation
- Warranty
- 3 Years
Processor & Memory
- Processor
- Intel® Core™ Ultra 5 125U
- Architecture
- Intel Meteor Lake
- RAM Capacity
- 16 GB
- Memory Type
- LPDDR5 Dual Channel
Storage
- Primary SSD
- 500 GB PCIe 4.0 SSD
- SSD Upgradeability
- Up to 2 TB M.2 PCIe 4.0 SSD
- Additional Expansion
- 1 x 2.5" SATA Drive Bay
Graphics & Display
- Graphics Type
- Integrated Intel® Graphics
- Multi-Display Capability
- Supports up to 2 x 8K @ 60Hz or 4 x 4K @ 60Hz
Connectivity & Ports
- USB4 Ports
- 2 x USB4 (with DisplayPort support)
- USB Type-A Ports
- 5 x USB 3.2 Gen 2, 1 x USB 2.0
- USB Type-C Ports
- 1 x USB 3.2 Gen 2
- Video Output
- 1 x HDMI, 2 x USB4 (DisplayPort)
- Network / LAN
- 2 x 2.5 Gigabit Ethernet (2.5G RJ-45)
- Card Reader

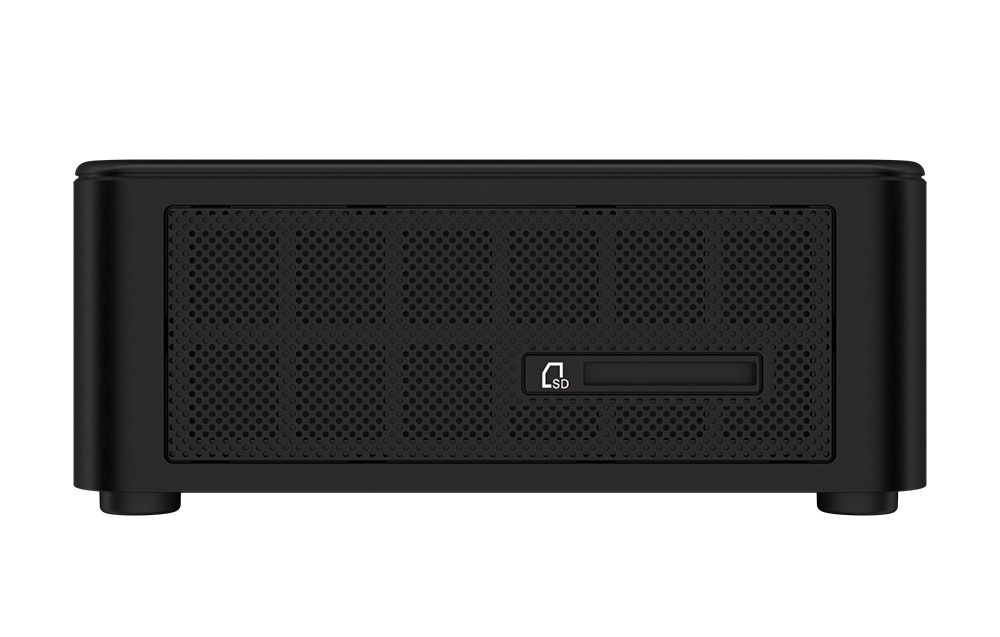

- SD Card Reader 4.0
- Audio
- 3.5 mm Headphone/Microphone Combo Jack
Physical & Power
- Chassis Material
- UV-coated PC plastic with die-cast metal frame
- Pressure Resistance
- Up to 200 kg
- Power Supply
- 120 W External Power Adapter
- Mounting
- VESA Mount Compatible (Bracket Included)
System Compatibility
- Supported Operating Systems
- Windows 11 Pro, Linux, Ubuntu, Proxmox VE, VMware ESXi
Package Contents
- Included Items
- 1 x GEEKOM IT12 Max Mini PC, 1 x 120W Power Adapter, 1 x VESA Mount Bracket
