METROX 3D Advanced Edition SCANNER REVOPOINT
- Hybrid scanning: blue laser + full-field structured light
- 4 professional scanning modes:
- Crossed blue laser 14 lines
- Parallel blue laser 7 lines
- Full-field structured light 62 lines
- Dual-axis turntable mode
- Up to 0.02 mm single-frame precision
- Volumetric accuracy: 0.025 mm + 0.05 mm/m
- Ultra-fast scan speed:
- 7 million points/sec structured light
- 800,000 points/sec laser mode
- Captures small to medium-sized objects with high detail
- Scans difficult surfaces shiny, dark, or featureless
- Supports marker-based and geometry-based tracking
- Broad export support: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
- Enhanced accessory kit for faster, easier workflows
- Light source: Hybrid blue laser Class 1 safe + structured blue light
- Accuracy: ±0.02 mm
- Resolution: Up to 0.05 mm point distance
- Working distance: 200–400 mm
- Scan volume:
- Near: 160 × 70 mm
- ar: 320 × 215 mm
- Depth: Dual 5 MP
- RGB: 2 MP
- Connectivity: USB 3.0 Type-A to Type-C
- Software: Revo Scan 5 MetroX
- OS compatibility: Windows 10/11, macOS, Linux
- Recommended PC specs:
- CPU: Intel i5 or higher
- RAM: 16 GB or more
- Dedicated GPU required for laser scanning mode
- Advanced Edition Includes:
- Revopoint MetroX 3D Scanner
- 500+ marker dots 6 mm
- Marker Block Kit:
- Magnetic ball markers
- Pyramid markers
- Dome markers
- Bar markers
- Calibration board
- Dual-axis turntable
- Tripod scanner mount cradle
- USB cable + adapter + power supply
- Premium hard carrying case
- Sample bust for testing
- Quick start guide, certificate, and warranty card
- Ideal For:
- Industrial inspection and precision measurement
- Reverse engineering and part replication
- Product design and prototyping
- Jewelry, dental, and small object scanning
- Quality assurance and metrology
- Cultural heritage preservation and artifact scanning
- Professional 3D printing and modeling workflows
Technical Specification
The Revopoint MetroX Advanced Edition is an industrial-grade hybrid 3D scanner designed for small to medium-sized objects, achieving a professional accuracy of 0.03 mm and precision of up to 0.01 mm. It features a powerful light system that combines 14 blue laser cross lines, 7 parallel blue laser lines, and 62-line full-field structured light. This hybrid architecture allows for rapid, spray-free capture of traditionally difficult surfaces, such as shiny metallic parts and deep black materials, while maintaining metrology-grade detail for reverse engineering and quality control.

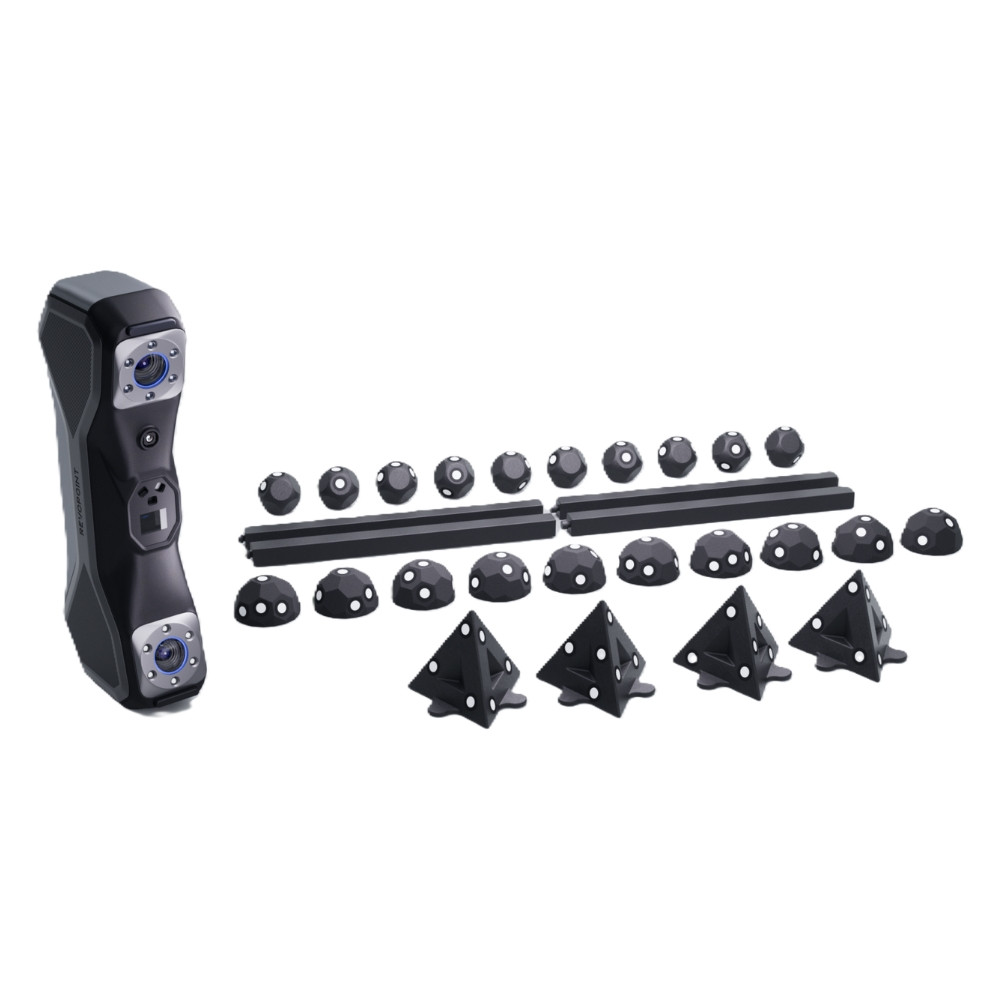

The Advanced Edition differentiates itself from the Standard version by including an extensive Marker Block Kit. This kit is designed to significantly speed up the scanning of featureless or uniform objects by creating a "marker-rich" environment without sticking adhesive dots directly onto the part. It features a variety of reusable magnetic targets, including 10 ball markers, 10 dome markers, 4 pyramid markers, and 4 bar markers. These shapes allow the scanner to maintain stable tracking across smooth surfaces, vastly reducing cumulative errors in volumetric accuracy.

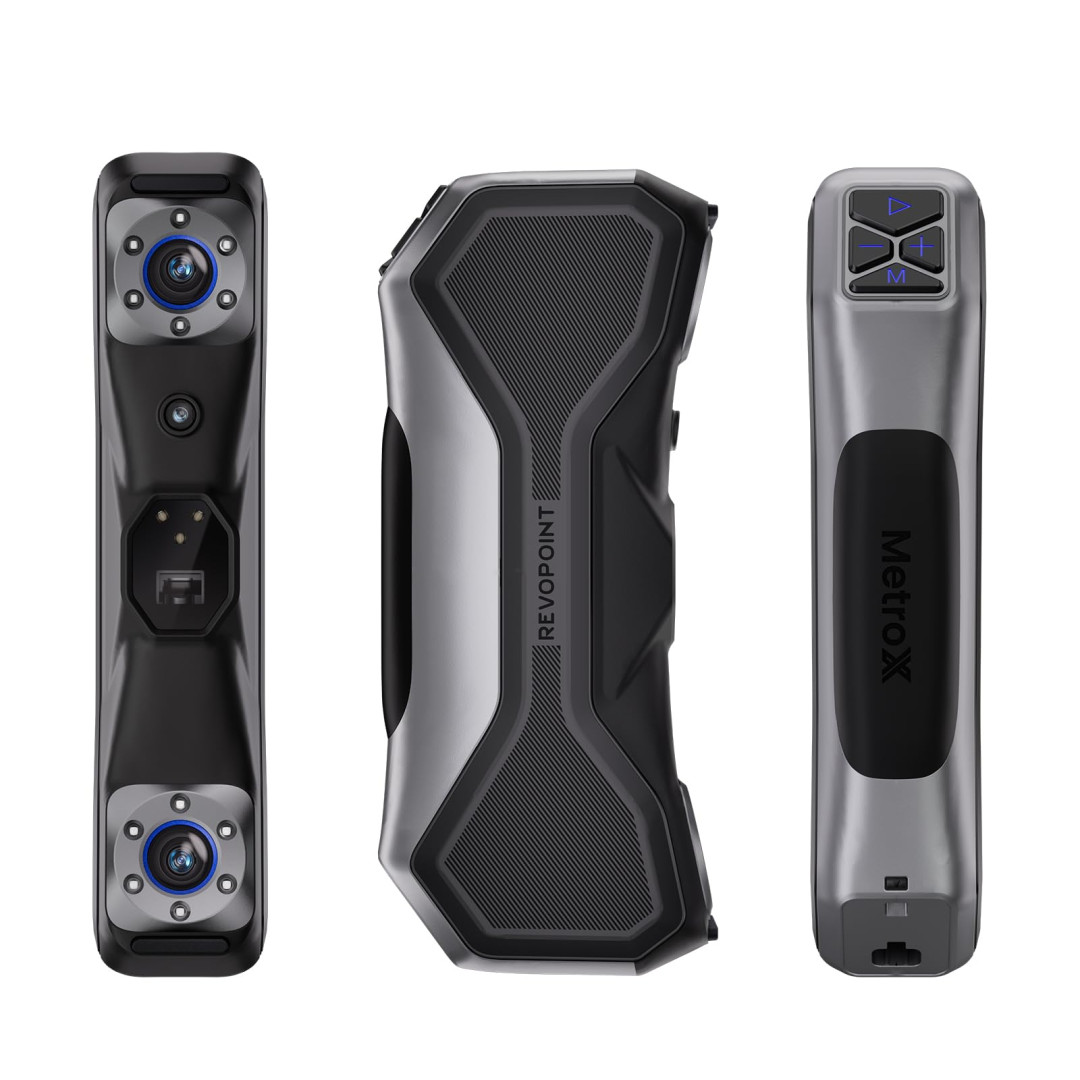

The MetroX Advanced Edition offers four professional modes to suit various industrial scenarios. The Cross Lines and Parallel Lines modes utilize the blue lasers for high-detail geometry, while the Full-Field Structured Light mode captures up to 7 million points per second for fast data acquisition. For smaller parts, the included Dual-axis Turntable enables a fully automated, one-click 360° scan. The system is powered by the Revo Metro software, which supports Global Marker Tracking and requires a high-performance PC with an NVIDIA RTX 30/40 series GPU to handle real-time processing at up to 60 FPS.
