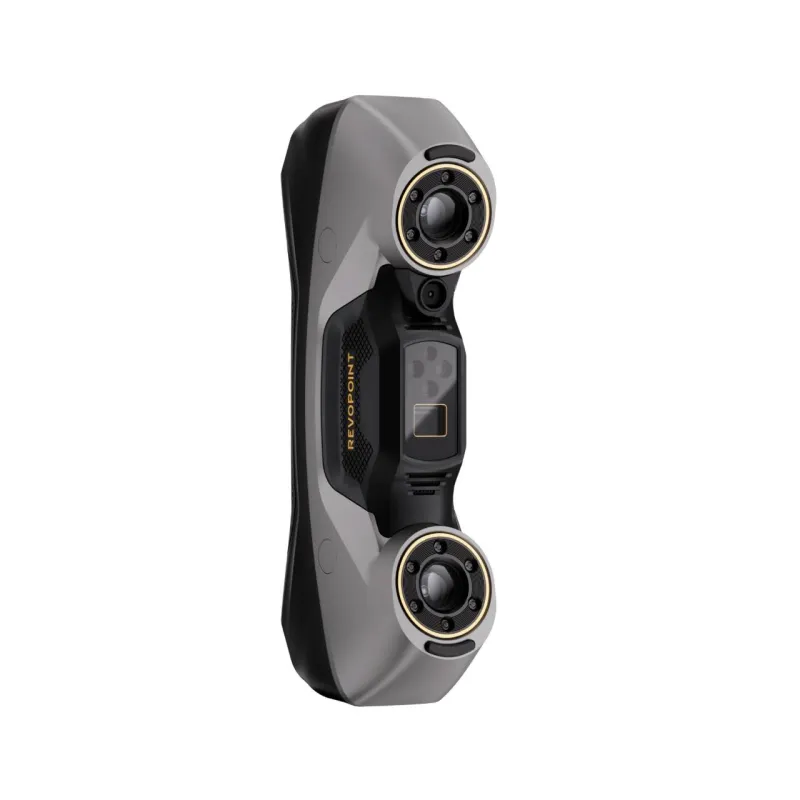

METRO Y PRO 3D SCANNER REVOPOINT
- Dual scan systems in one device:
- Multi-line blue laser scanning
- Full-field structured blue light scanning

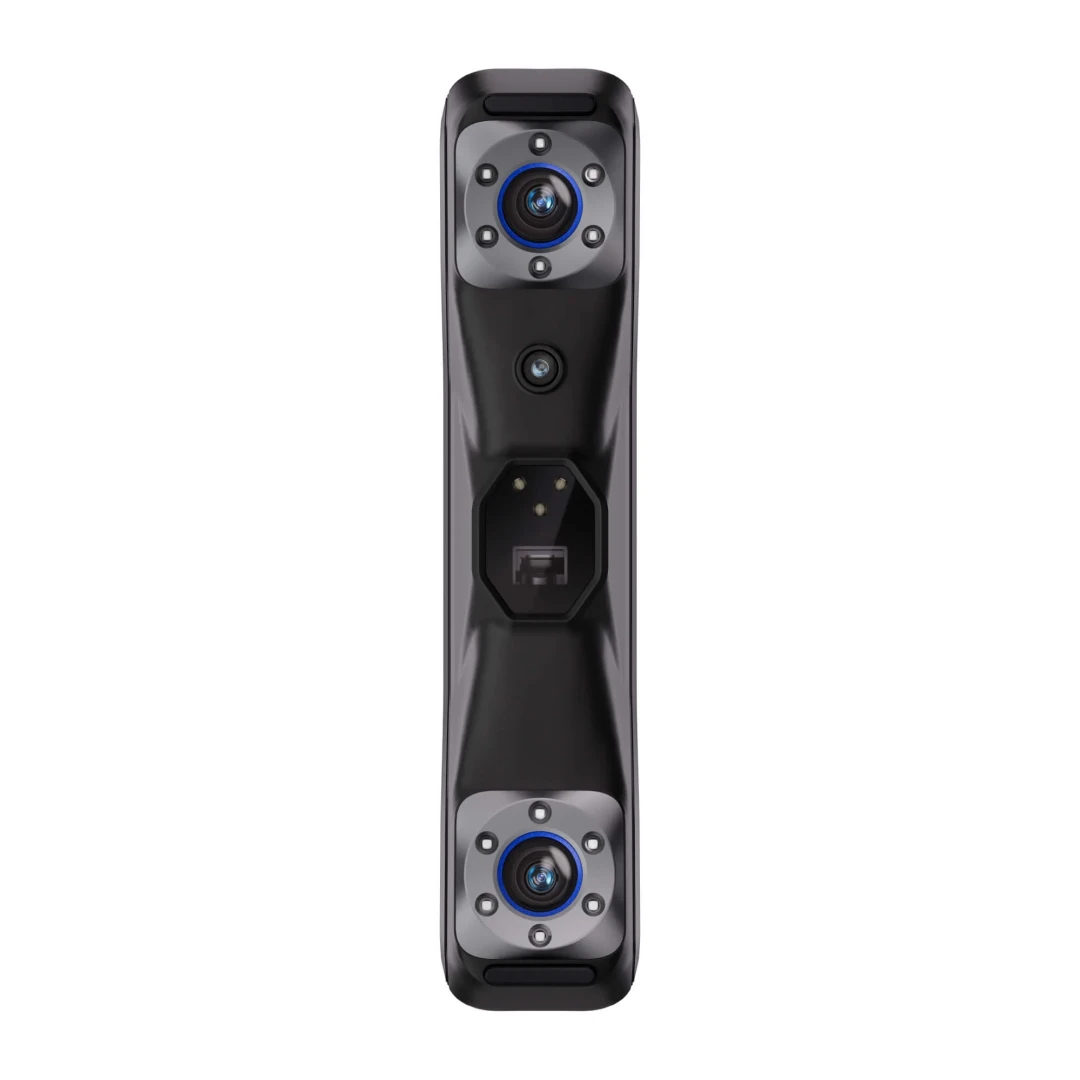

- Supports 5 scan modes:
- Cross-line laser mode ~34 lines
- Parallel-line laser mode ~15 lines
- Single-line laser mode for deep holes fine grooves
- Full-field structured light mode marker-free
- Auto turntable mode 360° scanning with dual-axis turntable
- Ultra-high accuracy:
- Single-frame precision: 0.01 mm
- Volumetric accuracy: 0.02 mm + 0.04 mm × scan length m
- High-speed 3D data capture:
- Laser mode: up to 1.7 million points/sec
- Structured light mode: up to 7 million points/sec
- Captures highly detailed and complex surfaces:
- Works well on dark, shiny, or reflective objects
- No spray needed in many cases
- Built-in HD RGB camera for color and texture capture
- Real-time temperature monitoring for consistent precision
- Connectivity options:
- USB‑C and Wi‑Fi 6
- Compatible with Windows and macOS
- Technical Specifications:
- Accuracy Single Frame: 0.01 mm
- Volumetric Accuracy: 0.02 mm + 0.04 mm × L m
- Fused Point Distance: Up to 0.05 mm
- Scan Speed Laser Mode: Up to 1,700,000 points/sec
- Scan Speed Structured Light: Up to 7,000,000 points/sec
- Working Distance: 200 – 400 mm
- Minimum Scan Volume: 10 × 10 × 10 mm
- Maximum Scan Volume: 1 × 1 × 1 m
- Supported Scan Modes:
- Cross-line laser
- Parallel-line laser
- Single-line laser
- Structured light marker-free
- Turntable automatic scanning
- Tracking Methods:
- Marker tracking
- Global marker tracking
- Feature tracking structured light only
- Texture Capture: HD RGB Camera
- Connectivity: USB‑C + Wi‑Fi 6
- Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
- Device Dimensions: 211 × 94 × 47 mm
- Weight: ~450 g
- System Requirements: Windows 10/11 64-bit, macOS
Technical Specification

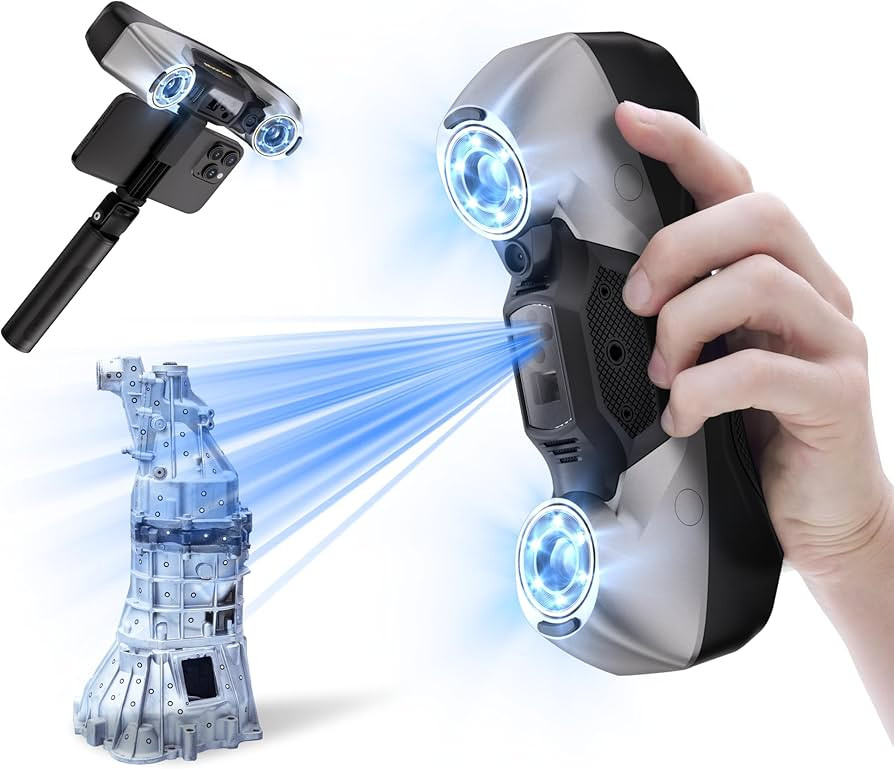

The Revopoint Metro Y Pro is an elite industrial-grade 3D scanner designed for high-accuracy engineering and inspection. It stands as the flagship of the Metro Y series, achieving a single-frame precision of up to 0.01 mm and a single-frame accuracy of 0.02 mm. By utilizing a sophisticated hybrid light system, the Metro Y Pro is uniquely capable of capturing small-to-medium objects (10 mm to 1000 mm) with a volumetric accuracy of 0.02 mm + 0.04 mm × L (m). This makes it an essential tool for professional reverse engineering, quality control, and automotive design where precision and speed are non-negotiable.
The "Pro" designation introduces two critical modes not found in the standard version, totaling five specialized functions. For traditionally difficult surfaces, it uses 34 Blue Cross Laser Lines for rapid, spray-free capture of shiny or black surfaces, and 15 Parallel Blue Laser Lines for fine edges. It also includes a Single Blue Laser Line mode for deep holes and crevices. Exclusive to the Pro version are the 62-line Full-field Structured Blue Light mode, which captures up to 7 million points per second marker-free, and the Auto Turntable mode for hands-free 360° digitization with enhanced color mapping.
Designed for the modern professional, the Metro Y Pro features built-in Wi-Fi 6 connectivity, allowing for a completely untethered scanning experience. Users can stream data in real-time to a PC or mobile device using the Mobile Kit (including a 5500 mAh battery grip). To maintain accuracy during intensive sessions, the scanner is equipped with real-time temperature monitoring to prevent heat-induced drift. The Pro bundle is a complete studio solution, coming standard with a Dual-axis Turntable, a tripod,a professional carrying case, and the Revo Metro software suite for advanced post-processing.
