Lenkeng HDMI Extender over Ethernet 60m 4K POC LKV410P - Description

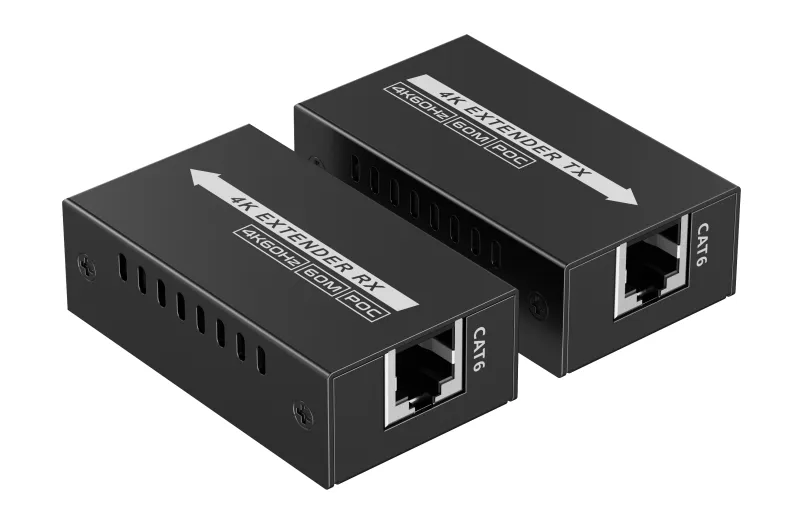

The Lenkeng LKV410P HDMI Extender over Ethernet is an advanced point-to-point transmission kit designed to deliver pristine, uncompressed 4K@60Hz ultra-high-definition video and audio across distances of up to 60 meters using standard CAT6, CAT6A, or CAT7 network cables.
Engineered for mission-critical audiovisual installations, this kit achieves real-time, zero-latency signal extension without compression artifacts. Thanks to Power over Cable (PoC) functionality, only one power adapter is required to power the entire link, greatly simplifying cable management and placement in tight spaces such as ceiling mounts, server racks, or behind displays.
Key Features
- Ultra HD 4K@60Hz Clarity: Supports vivid, high-resolution video transmission for razor-sharp visual detail.
- Zero-Latency Transmission: Delivers instantaneous real-time video playback without delay or frame drops.
- Long-Distance Extension: Extends audio/video signals reliably up to 60 meters over a single CAT6/6A/7 cable.
- Power over Cable (PoC): Bi-directional or transmitter-powered architecture simplifies power supply requirements.
- Plug-and-Play Setup: Pure hardware implementation requiring no software drivers or complex network configuration.
- Broad Compatibility: Ideal for CCTV security monitoring systems, conference rooms, home cinemas, digital signage, and broadcasting studios.
Lenkeng HDMI Extender over Ethernet 60m 4K POC LKV410P - Specifications
General
- Brand
- Lenkeng
- Model
- LKV410P
- SKU
- MS-26611
- Product Type
- HDMI Point-to-Point Extender Kit (Transmitter & Receiver)
Video & Audio
- Maximum Resolution
- 4K@60Hz
- Latency
- Zero Latency
- HDMI Version
- HDMI 2.0 compatible
- HDCP Compliance
- Yes
Transmission & Connectivity
- Transmission Distance
- Up to 60 meters (196 ft)
- Supported Cables
- CAT6, CAT6A, CAT7
- Transmitter (TX) Ports
- 1x HDMI Input, 1x RJ45 Output, 1x DC Power In
- Receiver (RX) Ports
- 1x RJ45 Input, 1x HDMI Output
Power & Environmental
- Power Over Cable (PoC)
- Yes (Single power adapter operation)
- Operating Temperature
- 0°C to 50°C
- Enclosure Material
- Metal housing for optimal heat dissipation
