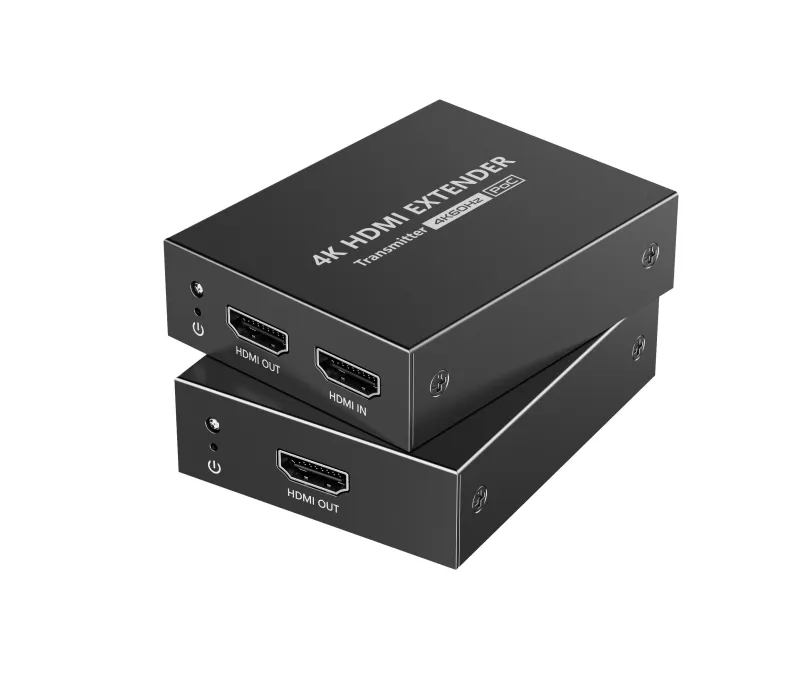

Lenkeng HDMI Extender over Ethernet 50m 4K POC IR Loop LKV465P - Description
The Lenkeng LKV465P HDMI Extender Kit is an advanced point-to-point audiovisual extension solution designed to deliver uncompressed 4K@60Hz video signals up to 50 meters over a single network cable. Ideal for digital signage, conference rooms, home theatres, and surveillance stations, it ensures pure, real-time picture quality with virtually zero latency.
Key Features
- Ultra HD 4K@60Hz Transmission: Extends vivid, high-resolution 4K HDMI video and crystal-clear audio up to 50 meters (164 ft) using standard CAT6, CAT6A, or CAT7 Ethernet cables.
- Zero-Latency Performance: Real-time signal pass-through guarantees instantaneous synchronization between video playback and control inputs.
- HDMI Loop-Out on Transmitter: Features an integrated local HDMI output port, allowing users to connect a nearby monitor for simultaneous live viewing and hassle-free signal monitoring.
- Power over Cable (PoC): Bidirectional or unidirectional PoC support powers the receiver unit directly through the network cable, eliminating the clutter of multiple power adapters.
- Bi-Directional IR Passthrough: Seamlessly control your source device (Blu-ray player, media streamer, or PC) from the remote display location using your existing remote controls.
- Plug and Play: Compact hardware design with robust heat dissipation—no drivers or software configurations required.
Lenkeng HDMI Extender over Ethernet 50m 4K POC IR Loop LKV465P - Specifications
General
- Brand
- Lenkeng
- Model
- LKV465P
- Part Number (SKU)
- MS-25781
- Device Type
- Point-to-Point HDMI Extender Kit (Transmitter + Receiver)
Audio & Video
- Maximum Resolution
- Up to 4K @ 60Hz (3840 x 2160)
- Latency
- Zero-Latency (Uncompressed)
- HDMI Compliance
- HDMI 2.0 / HDCP 2.2 compliant
- Audio Support
- LPCM, Dolby Digital, DTS Digital Surround
Transmission & Connectivity
- Max Transmission Distance
- Up to 50 meters (CAT6 / CAT6A / CAT7)
- Transmitter Ports
- 1x HDMI In, 1x HDMI Loop Out, 1x RJ45 Out, 1x IR In/Out, 1x DC Power
- Receiver Ports
- 1x RJ45 In, 1x HDMI Out, 1x IR In/Out, 1x DC Power
- Recommended Cable
- CAT6/6A/7 solid copper cable
Control & Features
- Power over Cable (PoC)
- Supported (Single power adapter operation)
- IR Extension
- IR Passthrough supported (20kHz – 60kHz)
- Local Monitoring
- Supported via HDMI Loop-Out
Power & Environmental
- Power Supply
- DC 5V / 12V (PoC enabled)
- Operating Temperature
- 0°C to 50°C
- Enclosure Material
- Metal Housing
