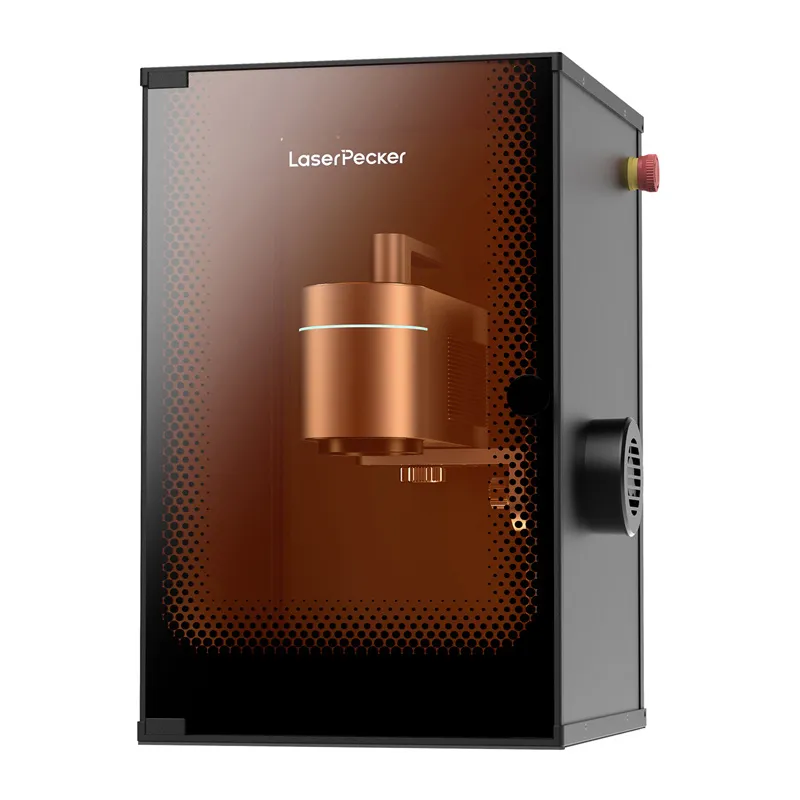

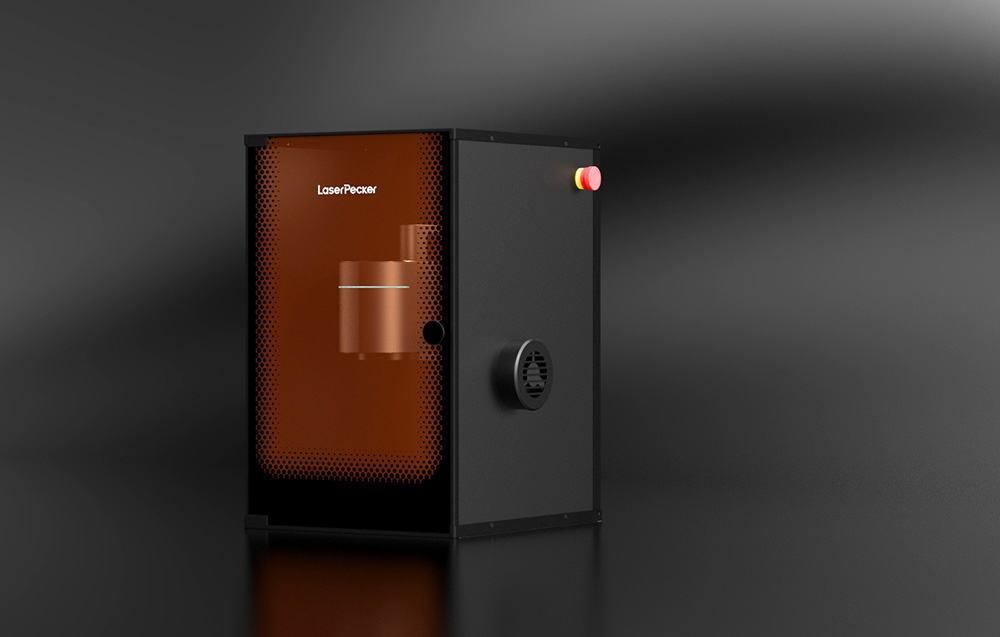

LaserPecker LP4 Laser Engraver, Safeguard version - Description
LaserPecker LP4 Safeguard combines a dual laser system, high operating speed, and exceptional precision, allowing you to engrave almost any material—from wood to metal. Smart features make it easy to configure and preview the effect, making work fast and predictable. The enclosed Class I design, extensive safety features, and effective smoke extraction system ensure complete safety and comfort of use. This equipment significantly increases productivity and allows you to create high-quality designs.
The LaserPecker LP4 Safeguard offers a dual laser system that combines two light sources: a 10 W semiconductor blue laser with a wavelength of 450 nm and a 2 W infrared laser with a wavelength of 1064 nm. This combination allows for precise processing of over 300 different materials, such as wood, leather, paper, acrylic, metal, and even stainless steel. The device easily handles engraving stainless steel cutlery, making it an excellent tool for personalizing everyday items and creating memorable gifts.
The LaserPecker LP4 Safeguard was designed with high performance in mind. Engraving speeds of up to 4000 mm/s allow you to complete projects in a very short time without compromising on quality. This is a huge advantage in serial and mass production, where both the end result and the speed of order fulfillment are important. The device significantly streamlines your work, allowing you to quickly move from design to finished product.

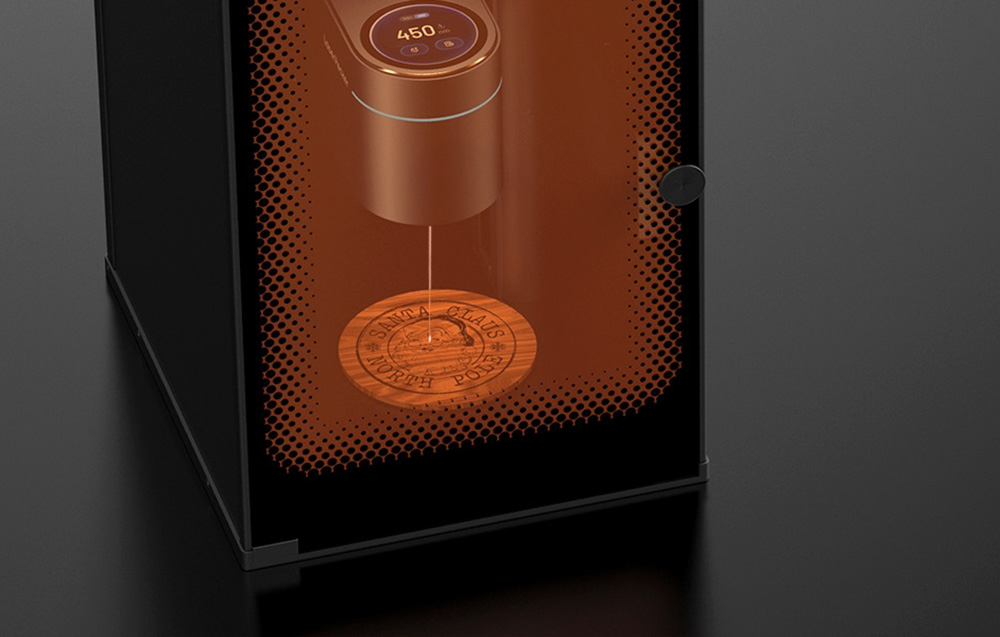

When details matter, the LaserPecker LP4 Safeguard is unmatched. Engraving with a linear accuracy of up to 0.01 mm and a resolution of up to 8K Ultra HD allows for extremely sharp edges, perfectly reproduced lines, and fine details. This level of precision will be appreciated by both professionals performing technical markings and creators working on artistic projects, logos, or complex graphics.

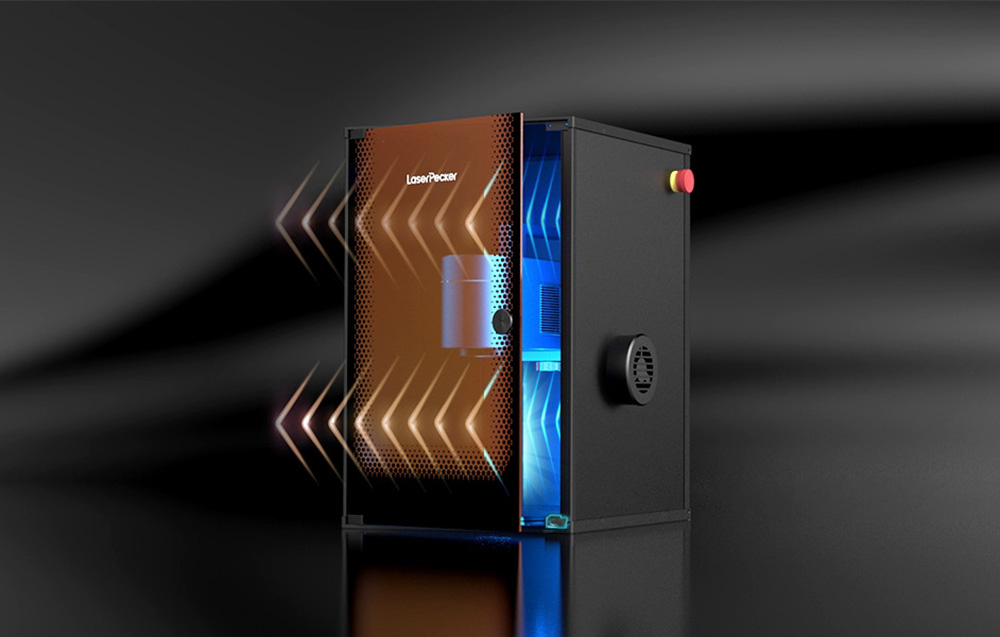

The device offers a preview of the engraving effect before starting work, allowing you to perfectly match the design to the workpiece. The system automatically recommends operating parameters, making configuration easy even when changing materials. As a result, the LaserPecker LP4 Safeguard eliminates the risk of errors and speeds up the engraving preparation process, giving you complete control over the final result.

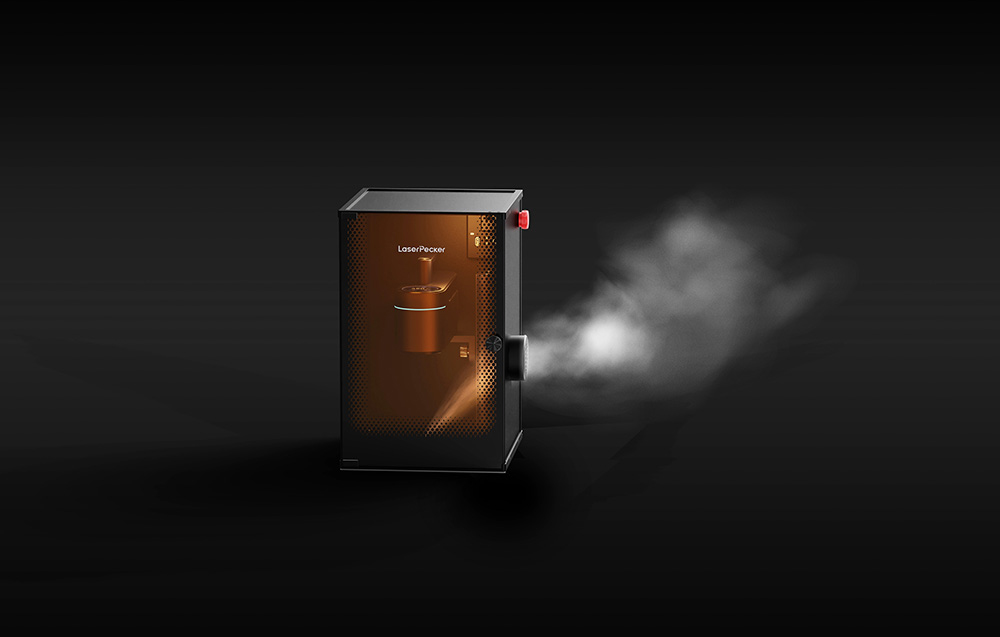

The Safeguard version features a fully enclosed housing that meets Class I laser safety requirements. The Hall sensor in the protective cover ensures safe operation – when the door is closed, the device operates normally, while opening it causes the operation to stop immediately. In addition, the engraver is equipped with an emergency stop button and an advanced protective filter system covering the 190 nm–550 nm and 800 nm–1100 nm ranges. This solution guarantees maximum protection for the user and the environment.

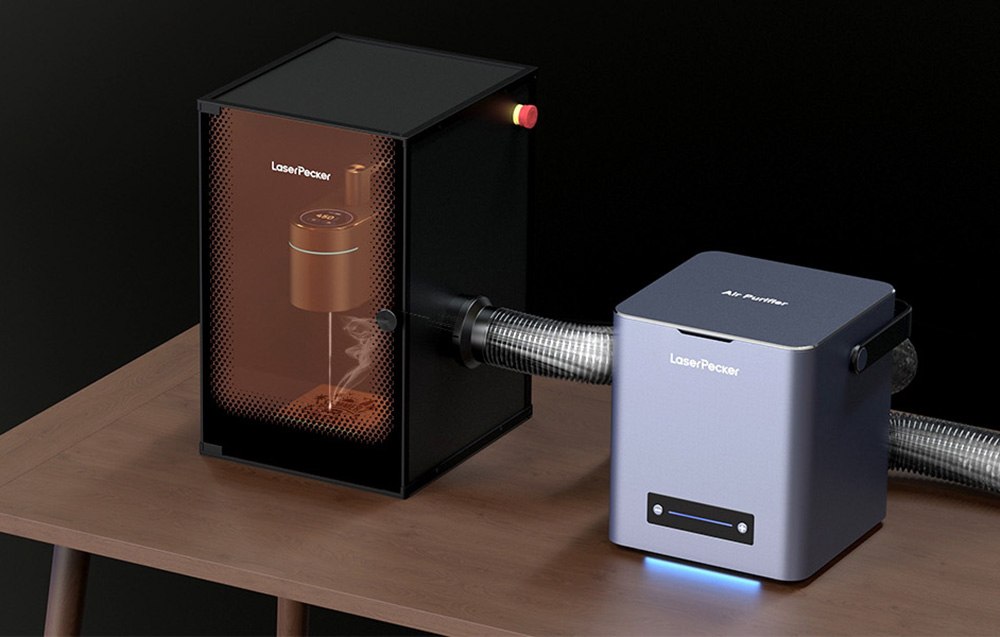

The LaserPecker LP4 Safeguard is equipped with an intelligent smoke extraction fan system that effectively removes particles and fumes generated during engraving. The fan speed is automatically adjusted to the current operating conditions of the device, which translates into better engraving quality and a clearer final result. This is complemented by a powerful air purifier with 99% filtration efficiency, equipped with a four-layer filter and four-stage operation control. The low noise level of approximately 55 dB makes the device ideal for use in enclosed spaces.
LaserPecker LP4 Laser Engraver, Safeguard version - Specifications
General
- Brand
- LaserPecker
- Model
- LP4 Safeguard
- Model Code / SKU
- INN-LP4-SV
- Device Type
- Desktop Dual Laser Engraver & Cutter
- Housing Material
- Anodized Aluminum Alloy & Heavy-Duty Composite
Laser Performance
- Laser Source
- Dual Laser (Blue Diode + Infrared)
- Blue Diode Laser
- 10W (450 nm wavelength)
- Infrared Laser
- 2W (1064 nm wavelength)
- Max Engraving Speed
- Up to 4000 mm/s
- Linear Accuracy
- 0.01 mm
- Resolution
- Up to 8K Ultra HD
- Compatible Materials
- 300+ materials including Wood, Leather, Paper, Acrylic, Stainless Steel, Titanium, Aluminum, Brass, and Plastics
Working Area & Dimensions
- Working Area (Square)
- 100 x 100 mm
- Working Area (Ellipse)
- 160 x 120 mm
- Max Height for Universal Roller
- 55 mm
- Product Dimensions
- 282 x 290 x 407 mm
- Product Weight
- 6.75 kg
Safety & Air Management
- Safety Class
- Class I Certified Enclosed System
- Interlock Protection
- Hall Effect magnetic door sensor with instant auto-stop
- Laser Shield Filtering
- 190 nm – 550 nm & 800 nm – 1100 nm optical filtration
- Emergency Controls
- Integrated physical emergency stop switch
- Smoke Extraction
- Intelligent variable-speed exhaust fan
- Air Purification
- Four-stage filter with 99% airborne particle efficiency
- Acoustic Noise Level
- ~55 dB
Software & Connectivity
- Connectivity
- USB Type-C, Bluetooth 5.0
- Supported Operating Systems
- Windows 10+, macOS 10.15+, iOS 13.0+, Android 7.0+
- Third-Party Software Compatibility
- LightBurn
- Computer Supported Formats
- G-code, JPG, PNG, BMP, SVG, DXF
- Mobile App Supported Formats
- G-code, JPG, PNG, SVG
- Preview Modes
- Rectangle preview, Center point preview
Power & Environmental
- Power Input
- AC 100–240 V, 50–60 Hz
- Power Adapter Output
- DC 24 V, 5 A (120 W)
- Operating Temperature Range
- 0°C to 65°C
- Operating Humidity Range
- 5% - 80% RH (non-condensing)
- Safety Certifications
- CE, RoHS, FCC, FDA, UKCA, NCC, KC, TELEC, SRRC
Package Contents
- Included in Box
- LaserPecker LP4 Engraver, Protective Safeguard Enclosure, Electric Stand, AC Power Cable, Power Adapter, DC Power Cable (0.4m), USB-C to USB-C Cable (0.35m), USB-A to USB-C Cable (0.4m), 2x USB-A to USB-C Cables (1.5m), Tool Box, Alignment Ruler, User Manual
