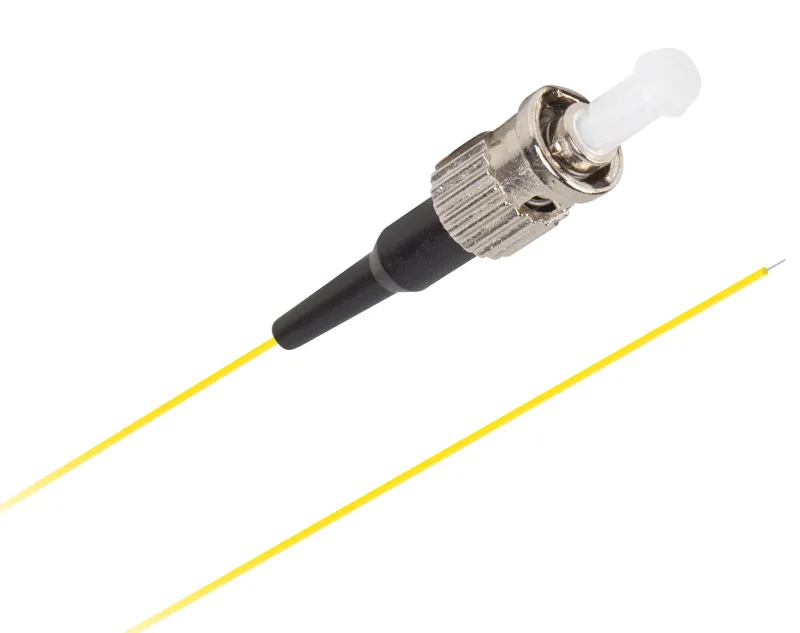

Lanberg Fiber Pigtail ST/UPC SM 0.9mm 9/125 Easystrip 2.0m

The Lanberg Fiber Pigtail ST/UPC Single-Mode 0.9mm 9/125 Easystrip 2.0m (MS-24328) is a professional-grade fiber optic termination solution designed for structured cabling, telecom distribution frames, and fiber patch panels. Featuring a high-precision ST connector with an Ultra Physical Contact (UPC) polish, this pigtail ensures minimal insertion loss (< 0.20 dB) and superior return loss (> 60 dB) for stable, high-speed data transmission.

High Performance and Flexibility

Constructed with premium G657A1 single-mode optical fiber, this pigtail provides enhanced bend-insensitivity with a tight minimum bend radius of just 10 mm. This makes it ideal for high-density fiber management trays, distribution boxes, and tight server rack enclosures where standard fiber might suffer from macro-bending attenuation.

Fast Installation with Easy Strip Buffer

Engineered to save valuable installation time, the 0.9 mm buffer features Lanberg's Easy Strip design, allowing technicians to cleanly strip up to 100 cm of coating in a single pass without damaging the underlying 9/125 µm glass fiber. The Low Smoke Zero Halogen (LSZH) jacket enhances fire safety in enterprise installations by releasing negligible smoke and non-toxic fumes in the event of fire.

Key Features

• Connector Type: ST with UPC (Ultra Physical Contact) finish
• Fiber Specification: G657A1 single-mode (SM) 9/125 µm core/cladding
• Insertion & Return Loss: Low insertion loss (< 0.20 dB) and high return loss (> 60 dB)
• Easy Strip Sheath: Enables swift, reliable stripping for rapid fusion splicing
• Safety & Durability: Flame-retardant LSZH jacket with -40°C to 85°C operating range
• Compact Bend Radius: 10 mm bend tolerance for space-constrained enclosures
• Length: Generous 2.0-meter span for flexible routing
