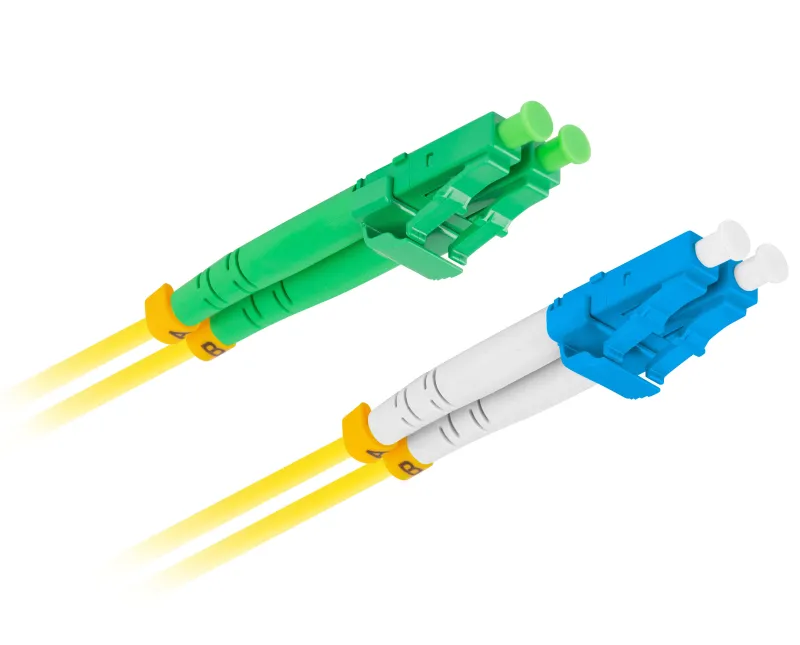

Lanberg Fiber Optic Patch Cord SM LC/APC-LC/UPC Duplex LSZH 2.0m

Upgrade your high-speed network infrastructure with the Lanberg Fiber Optic Patch Cord SM LC/APC-LC/UPC Duplex (2.0m). Built to deliver exceptional performance and stability, this single-mode (9/125 µm) patch cable connects optical transceivers, switches, and patch panels with minimal optical attenuation and zero signal interference.

Precision Optical Engineering

Equipped with hybrid LC/APC and LC/UPC connectors, this cable achieves high return loss (greater than 50 dB) and low insertion loss (under 0.20 dB). The integrated G657A1 fiber grade offers reduced bending sensitivity with a tight 10 mm minimum bend radius, making routing through compact patch panels and wall enclosures effortless and reliable.

Safety & Durability

Designed with a Low Smoke Zero Halogen (LSZH) 3.0 mm jacket, this patch cord emits negligible toxic fumes and smoke when exposed to high heat, making it fully suitable for commercial server rooms, data centers, and public infrastructure. Its rugged duplex construction and wide operational temperature range ensure lasting dependability.

Key Features

• Connector Combination: Precision duplex LC/APC to LC/UPC connectors for secure, low-loss coupling.
• Bend-Insensitive Fiber: G657A1 single-mode 9/125 µm glass allows tight cable management without compromising transmission.
• Exceptional Signal Quality: Insertion loss under 0.20 dB and return loss over 50 dB for crystal-clear data transmission.
• LSZH Safety Sheath: Low-smoke, zero-halogen yellow outer jacket for enhanced fire safety.
• Universal Application: Ideal for telecom networks, FTTH rollouts, CATV, and enterprise data center switching.
