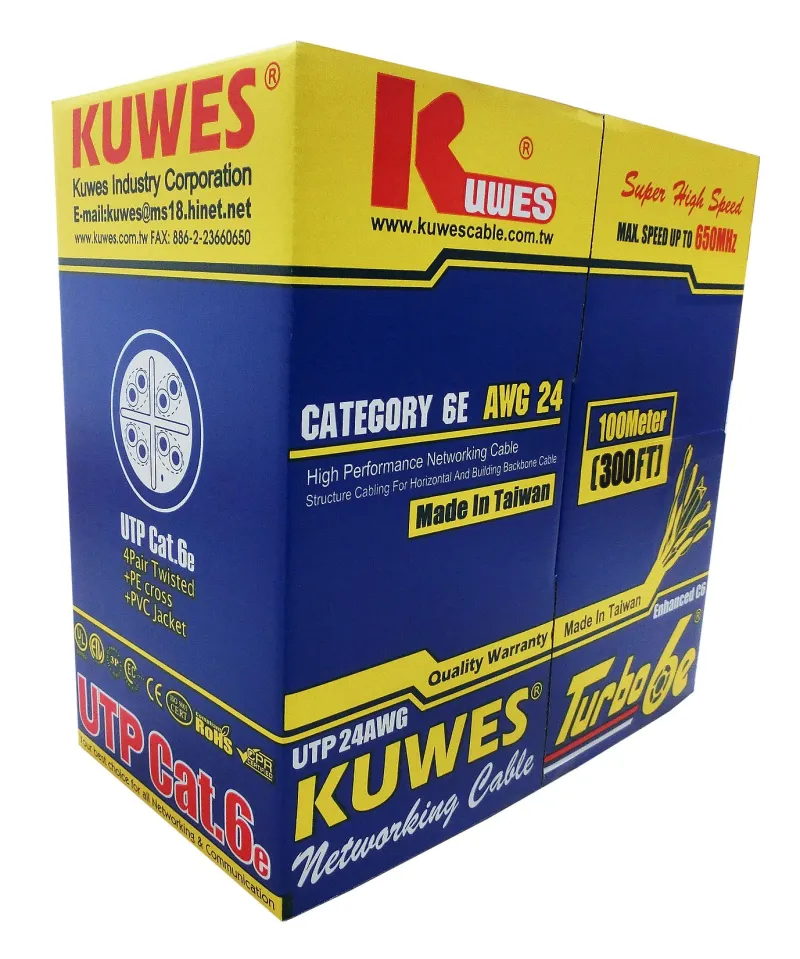

Kuwes CAT6 UTP Pure Copper Outdoor 100m Black - Description
Build a rock-solid external network infrastructure with the Kuwes CAT6 UTP Pure Copper Outdoor Cable (100m). Specifically engineered to withstand the challenging Mediterranean outdoor climate, this cable combines premium solid bare copper conductors with a robust, UV-resistant outer jacket, guaranteeing superior high-speed data transmission over long runs without signal degradation.
Engineered for Exterior Durability
Unlike standard indoor cables that crack and degrade under sunlight and temperature fluctuations, this Kuwes Cat6 cable is sheathed in a heavy-duty Low-Density Polyethylene (LDPE) outdoor jacket. This durable exterior provides robust protection against UV degradation, moisture, rain, and fluctuating temperatures, making it the ideal choice for running along exterior building walls, under eaves, or through conduit.
Pure Solid Bare Copper Performance
Featuring 24 AWG 100% solid bare copper conductors (Turbo6e type), this cable easily outperforms copper-clad aluminum (CCA) alternatives. It delivers lower DC resistance, higher conductivity, and optimal thermal performance, making it fully compliant with Power over Ethernet (PoE / PoE+) standards. Power exterior IP security cameras, access points, and VoIP devices reliably without voltage drops.
Key Features
- 100% Solid Bare Copper: 24 AWG pure copper conductors deliver full Gigabit performance and seamless PoE/PoE+ capability.
- Heavy-Duty LDPE Jacket: Weatherproof and UV-resistant black sheath engineered specifically for external installations.
- High-Bandwidth Performance: Tested up to 500 MHz with a 69% Nominal Velocity of Propagation (NVP) for lag-free data transfer.
- Versatile Application: Perfect for outdoor CCTV surveillance systems, inter-building links, and outdoor wireless bridges.
- Generous 100m Length: Convenient roll length for custom-cut field terminations and installations.
Kuwes CAT6 UTP Pure Copper Outdoor 100m Black - Specifications
General
- Brand
- KUWES
- Model / Part Number
- MS-25982
- Cable Category
- Cat 6 UTP (Unshielded Twisted Pair)
- Cable Type
- Solid Bulk Network Cable
- Usage / Environment
- Outdoor / External
- Length
- 100 Meters
- Color
- Black
Conductor & Insulation
- Conductor Material
- Solid Bare Copper (100% Pure Copper)
- Conductor Gauge
- 24 AWG (Turbo6e Type)
- Number of Pairs
- 4 Twisted Pairs (8 Conductors)
- Insulation Material
- HDPE (High-Density Polyethylene)
- Insulation Thickness
- Min. Avg. 0.23 mm
- Color Code
- Pair 1: Blue & White/Blue, Pair 2: Orange & White/Orange, Pair 3: Green & White/Green, Pair 4: Brown & White/Brown
Jacket & Physical Attributes
- Jacket Material
- LDPE (Low-Density Polyethylene, Weather & UV Resistant)
- Outer Diameter (O.D.)
- Approx. 5.7 mm (± 0.3 mm)
- Jacket Thickness
- Min. Avg. 0.60 mm (Min. 0.50 mm)
Electrical Characteristics
- Characteristic Impedance
- 85 – 115 Ω (1 – 500 MHz)
- Conductor Resistance
- Max. 7.32 Ω / 100m @ 20°C
- Mutual Capacitance
- Max. 5600 pF / 100m
- Pair-to-Ground Capacitance Unbalance
- Max. 330 pF / 100m
- DC Resistance Capacitance Unbalance
- 5%
- Nominal Velocity of Propagation (NVP)
- 69%
- Dielectric Spark Test
- 2.5 kV
