Kuwes CAT5E UTP Pure Copper Outdoor 305m Black - Description
The Kuwes CAT5E UTP Pure Copper Outdoor 305m Cable (MS-25983) provides commercial-grade networking performance designed specifically for outdoor and exposed installations. Built with 100% solid bare copper 24 AWG conductors, this bulk 305-meter drum delivers superior signal integrity, lower attenuation, and maximum durability compared to standard copper-clad aluminum (CCA) alternatives.
Engineered for Harsh Outdoor Environments
Protected by a heavy-duty, UV-resistant LDPE (Low-Density Polyethylene) outer jacket, this outdoor cable resists degradation caused by solar UV radiation, extreme temperature fluctuations, and moisture. It is the optimal cabling solution for connecting outbuildings, deploying external IP surveillance cameras, setting up outdoor wireless access points, or running exterior perimeter lines.
Key Features
- 100% Solid Bare Copper: 24 AWG (0.45mm) solid copper conductors ensure optimal conductivity, signal strength, and compliance with strict networking standards.
- PoE & PoE+ Compatible: High electrical efficiency and low resistance make it fully capable of delivering power and data to remote IP cameras, intercoms, and access points.
- Durable LDPE Outer Jacket: Weatherproof, UV-stable outer sheath designed for reliable long-term external deployment.
- Consistent High-Speed Performance: Tested up to 100 MHz to support Gigabit Ethernet transfer rates without packet loss or cross-talk.

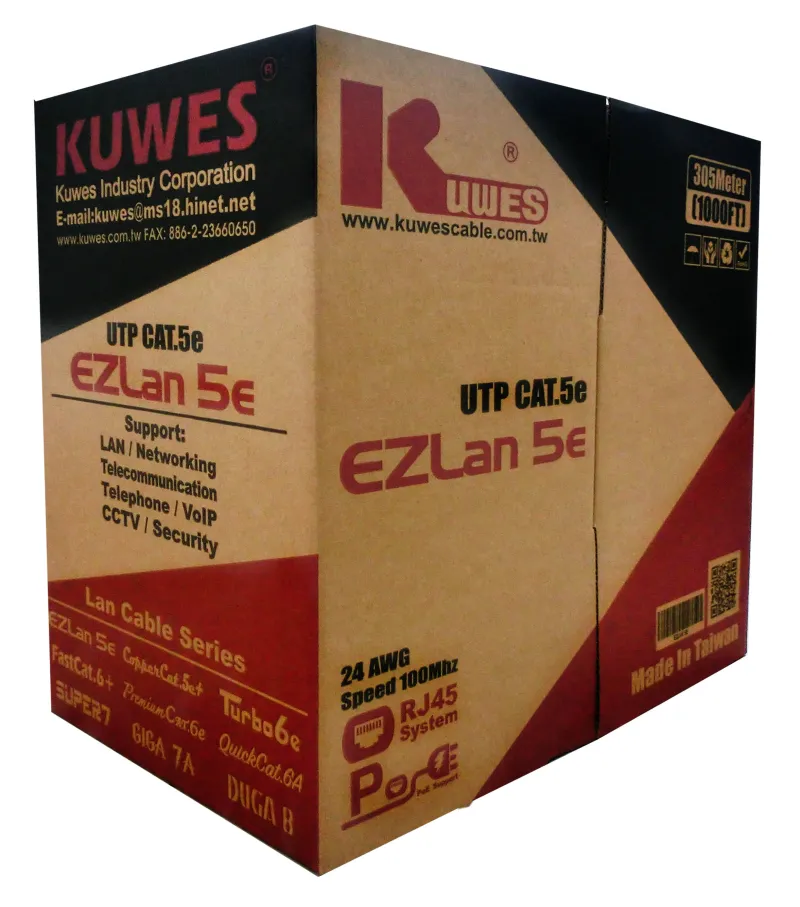

- Easy-Pull 305m Dispenser Box: Neatly packaged bulk reel allows smooth, kink-free deployment on professional job sites.
Kuwes CAT5E UTP Pure Copper Outdoor 305m Black - Specifications
General
- Brand
- KUWES
- Model / SKU
- MS-25983
- Cable Category
- CAT5E UTP (Unshielded Twisted Pair)
- Application
- Outdoor / External Installation
- Length
- 305 Metres (Bulk Box)
- Colour
- Black
Conductor & Core
- Conductor Material
- Solid Bare Copper (BC)
- Conductor Gauge
- 24 AWG (0.45 mm)
- Number of Pairs
- 4 Twisted Pairs (8 Conductors)
- Core Insulation
- HDPE (High-Density Polyethylene)
- Insulation Thickness
- Min. Avg: 0.175 mm / Min: 0.153 mm
- Pair Colour Code
- Pair 1: Blue & White/Blue, Pair 2: Orange & White/Orange, Pair 3: Green & White/Green, Pair 4: Brown & White/Brown
Outer Jacket & Construction
- Jacket Material
- LDPE (Low-Density Polyethylene, UV/Weather Resistant)
- Jacket Thickness
- Min. Avg: 0.585 mm / Min: 0.458 mm
- Outer Diameter (O.D.)
- 4.75 mm (±0.3 mm)
Electrical Characteristics
- Characteristic Impedance
- 85–115 Ω (1–100 MHz)
- Conductor Resistance
- Max. 9.38 Ω / 100m at 20°C
- DC Resistance Unbalance
- 5% Max
- Mutual Capacitance
- Max. 5.6 nF/m
- Pair-to-Ground Capacitance Unbalance
- Max. 330 pF / 100m
- Dielectric Spark Test
- 2.5 kV
