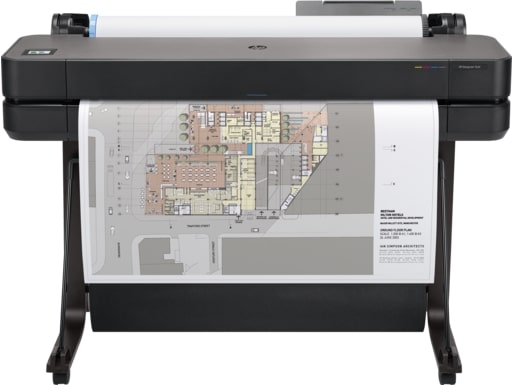

HP DesignJet T630 Printer 36-in - Description

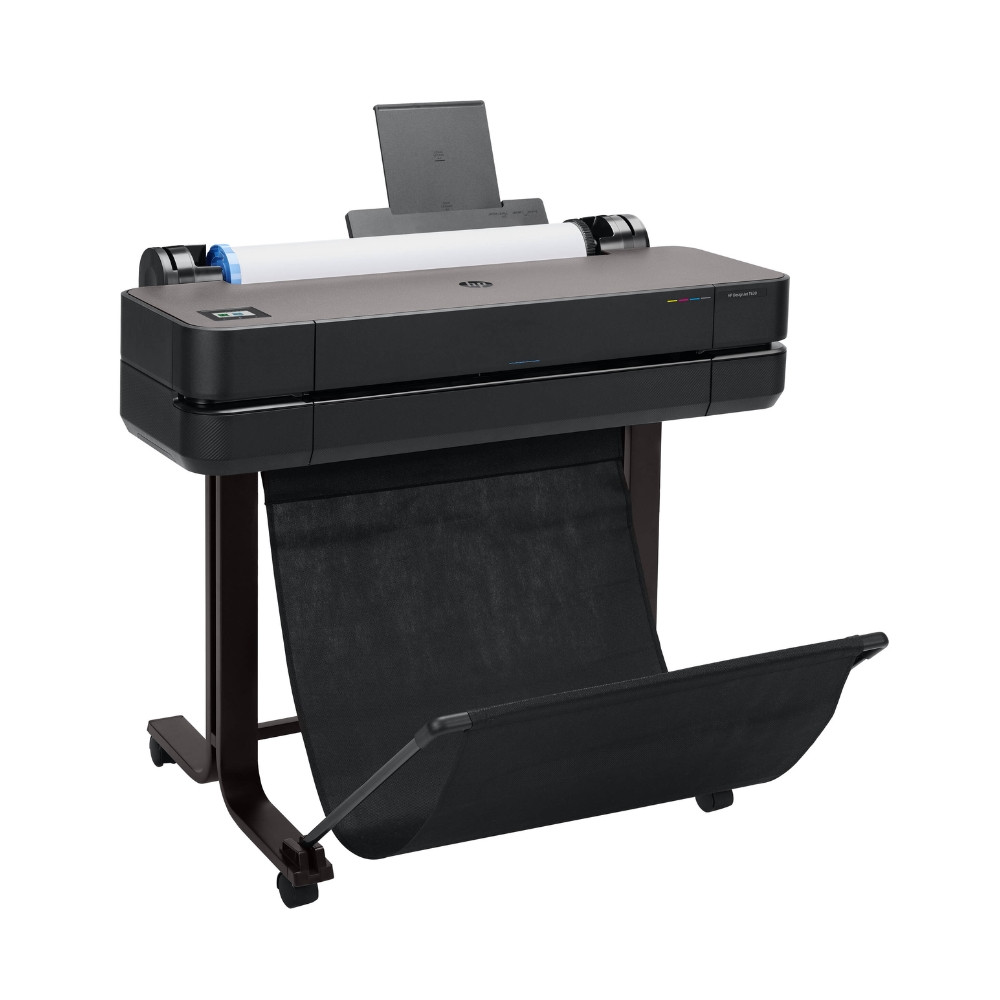

The HP DesignJet T630 is an affordable 36-inch plotter designed for AEC, GIS, and MCAD professionals who need a high-quality wide-format solution without the complexity. It is recognized as one of the world's smallest 36-inch plotters, featuring a built-in stand and an integrated automatic sheet feeder that allows you to print multi-size A3 and A0 projects automatically. With the HP Click software, you can send multiple files in a single click, streamlining your workflow from job submission to final print.

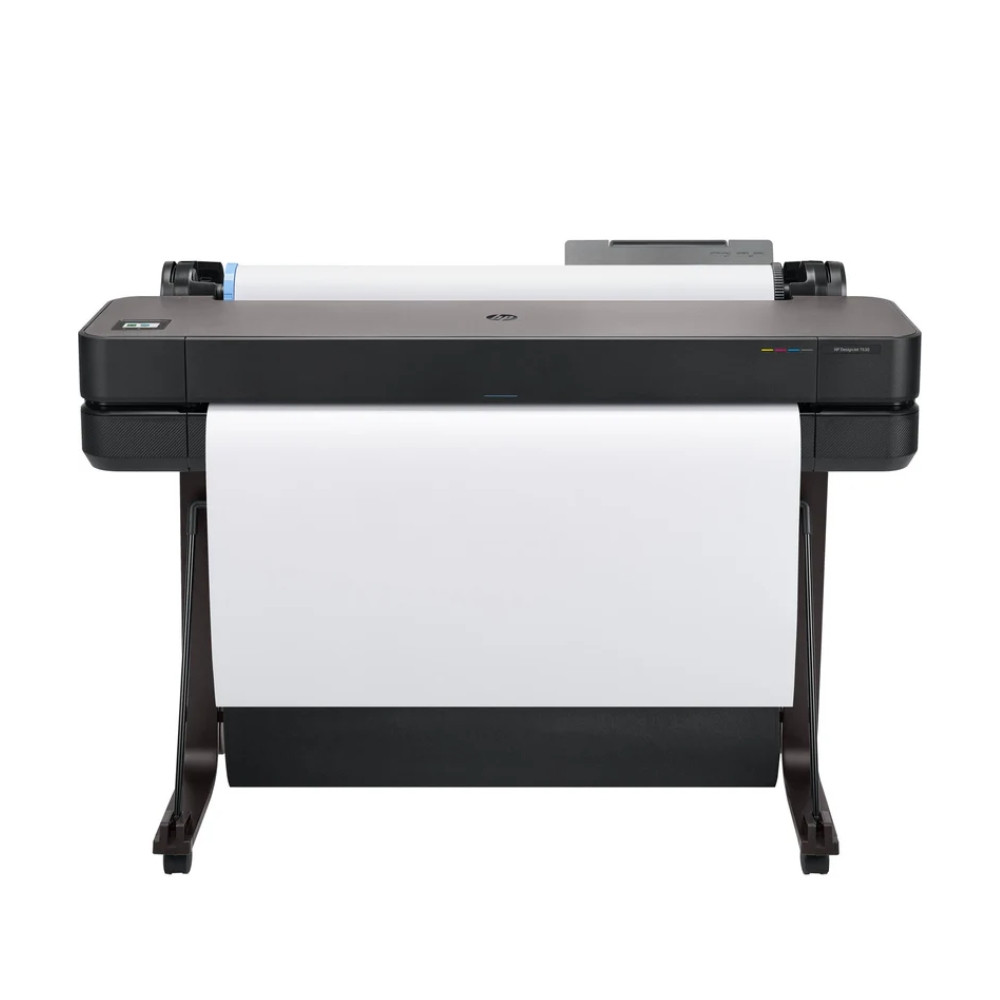

This plotter is built for performance, delivering a sharp A1-sized print in as little as 30 seconds (up to 76 A1 prints per hour). Using HP Bright Office Inks, it achieves up to 31% more line accuracy and up to 65% more color gamut than standard wide-format printers, making it ideal for technical drawings, renderings, and presentations. It features a 2400 x 1200 optimized dpi resolution and 1 GB of memory, ensuring that complex files are processed smoothly with precise detail.

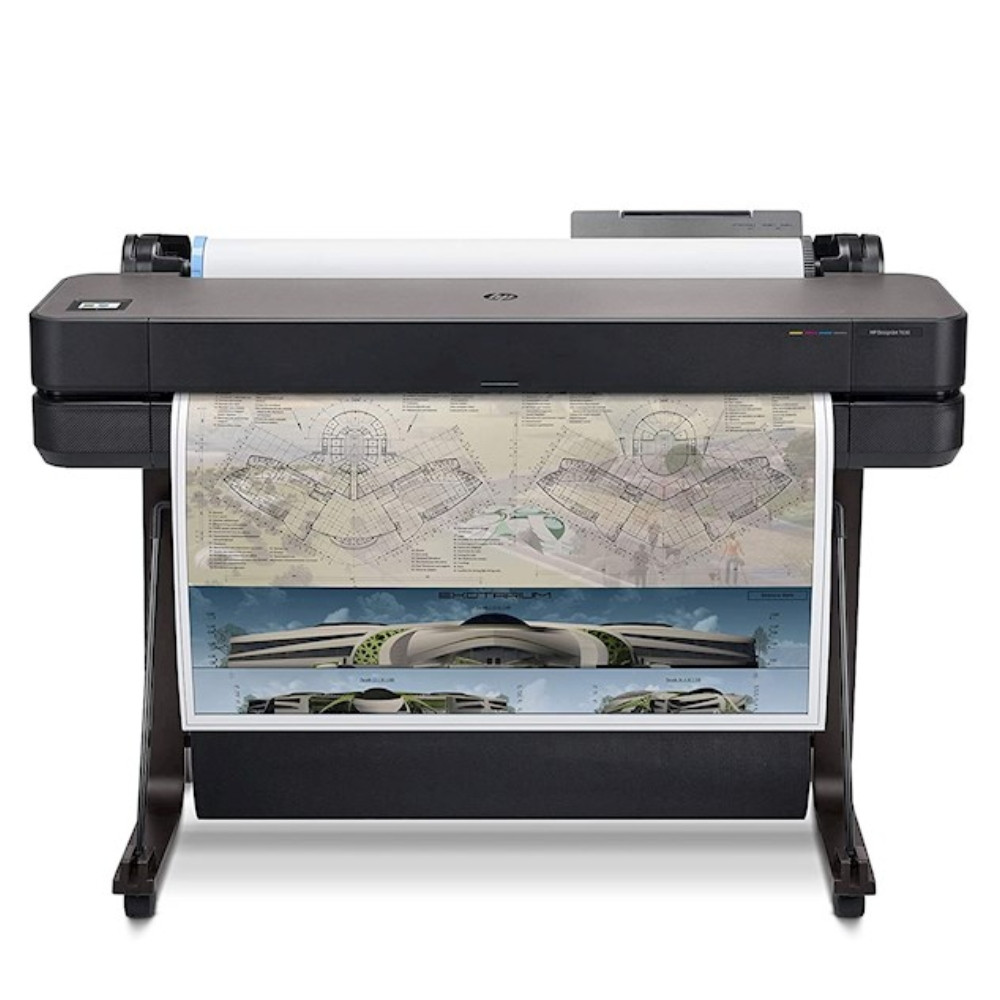

Engineered with the environment in mind, the T630 is made with up to 30% recycled plastic and is designed to reduce CO2 emissions by up to 7.3 tons per year across its lifecycle. It offers robust connectivity options, including Gigabit Ethernet, Wi-Fi 802.11a/b/g/n, and Wi-Fi Direct for easy wireless printing. With the HP Smart app, you can print and manage your jobs from virtually anywhere, while HP Wolf Essential Security provides peace of mind by protecting your printer and data from potential threats.
HP DesignJet T630 Printer 36-in - Specifications
General
- Brand
- HP
- Model
- DesignJet T630 36-in
- Functions
- Print Technology
- HP Thermal Inkjet
- Model Size
- 36-inch (914 mm)
Print Performance & Quality
- Print Resolution
- Up to 2400 x 1200 optimised dpi
- Print Speed
- 30 sec/page on A1, 76 A1 prints per hour
- Line Accuracy
- ±0.1%
- Print Languages
- HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Media Handling
- Media Types & Feeds
- Sheet feed, roll feed, automatic horizontal cutter, automatic sheet feeder
- Auto Sheet Feeder Sizes
- 210 x 279 mm to 330 x 482 mm (A4, A3)
- Manual & Roll Feed Sizes
- 210 x 279 mm to 914 x 1897 mm (up to A0 / 36-inch)
- Maximum Roll External Diameter
- 100 mm
Connectivity & Software
- Wired Interfaces
- Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0
- Wireless Connectivity
- Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
- Mobile Printing Capability
- HP Smart App, HP Click, Apple AirPrint
Inks & Consumables
- Ink Types
- Dye-based (C, M, Y); pigment-based (K)
- Cartridge Compatibility
- HP 712 Black, HP 712 Cyan, HP 712 Magenta, HP 712 Yellow
- Number of Print Cartridges
- 4 (1 each: cyan, magenta, yellow, black)
Physical & Warranty
- Included Accessories
- Printer stand and media bin, printhead, introductory ink cartridges, spindle, quick reference guide
- Warranty
- 1-Year Limited Hardware Warranty
