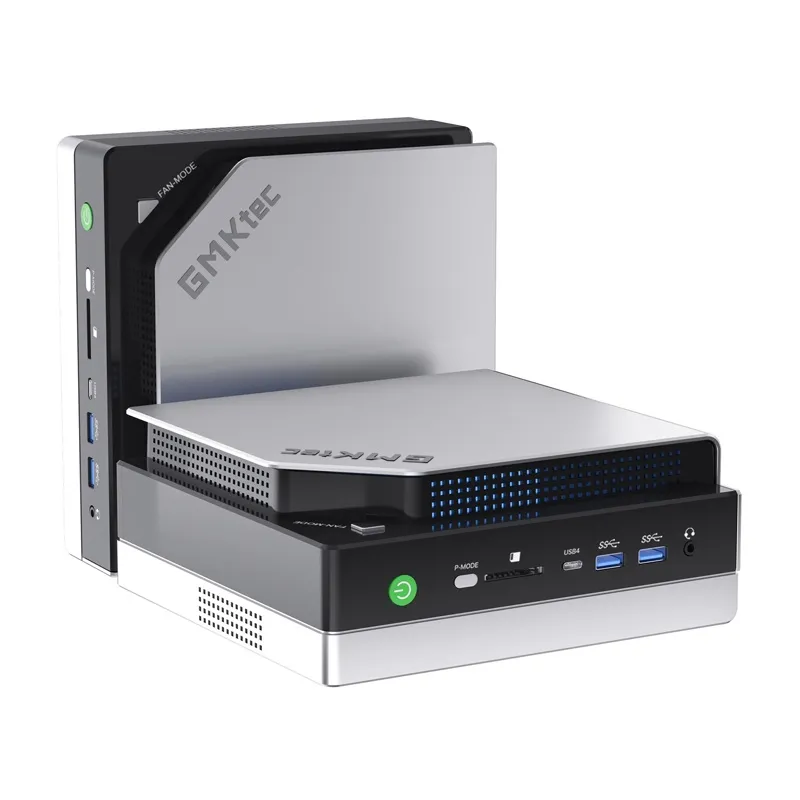

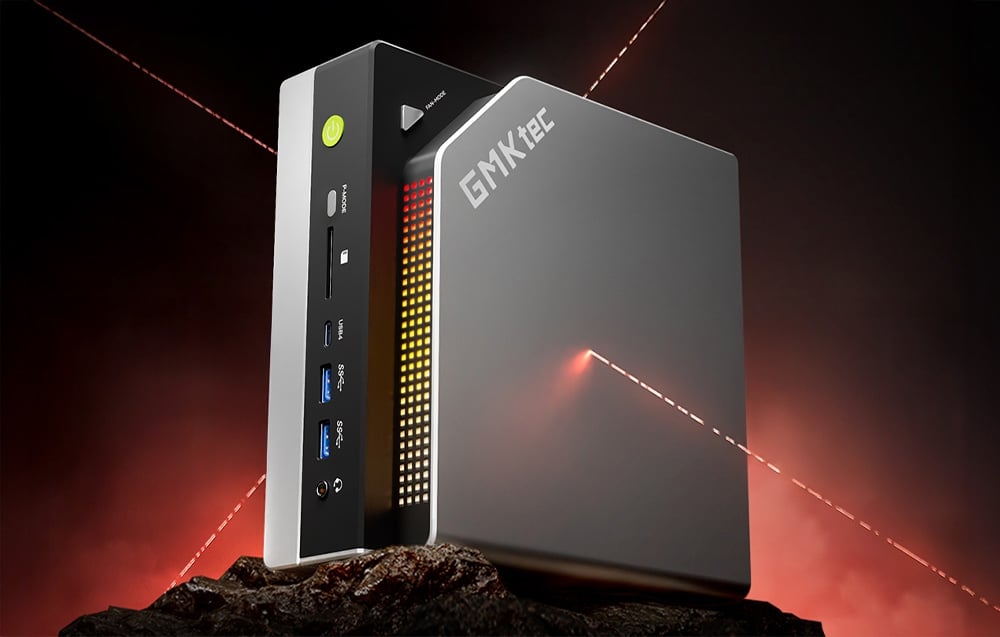

GMKtec EVO-X2 Ryzen AI Max+ 395 Mini PC with 64GB RAM, 1TB SSD, and Windows 11 Pro
SKU: INN-X2-64-1TB
Brand: GMKtec
Experience desktop-grade workstation power in a sleek, ultra-compact form factor with the GMKtec EVO-X2 Ryzen AI Max+ 395 Mini PC. Engineered for creative professionals, AI developers, hardcore gamers, and power users, this mini PC redefines what small-form-factor computing can achieve. Powered by the groundbreaking 16-core AMD Ryzen™ AI Max+ 395 processor built on Zen 5 architecture, equipped with 64GB of ultra-fast 8000MHz LPDDR5X RAM, and fitted with a 1TB PCIe 4.0 NVMe SSD, the EVO-X2 handles high-end video editing, 3D rendering, local LLM execution, and AAA gaming without skipping a beat.
Key Highlights
- AMD Ryzen™ AI Max+ 395 Processor: 16 cores and 32 threads running up to 5.1 GHz with 80MB total cache for blistering multi-threaded performance.
- Radeon™ 8060S Graphics: Advanced RDNA 3.5 architecture featuring 40 Compute Units—delivering graphics performance comparable to discrete RTX 4070 class GPUs.
- Next-Gen AI TOPS Power: AMD XDNA™ 2 architecture NPU delivering up to 50 NPU TOPS and up to 126 total system TOPS for instant local AI processing in applications like MidJourney, ChatGPT, and Google AutoML.

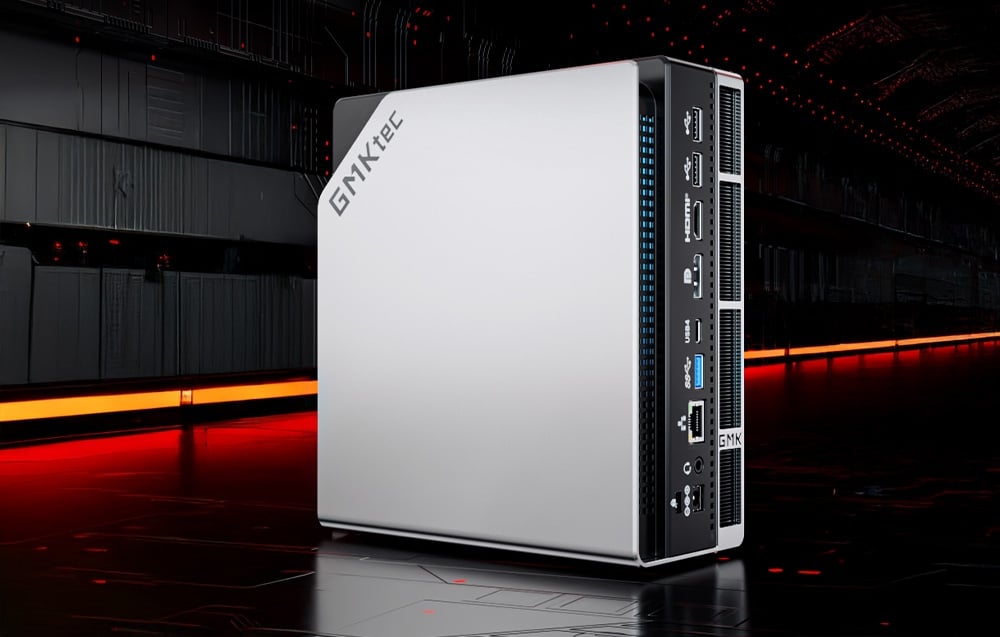

- High-Speed 64GB LPDDR5X RAM: 8000 MHz 8-channel memory offering immense bandwidth for heavy multitasking and data-intensive workflows.
- Massive Storage Capability: Pre-installed 1TB M.2 PCIe 4.0 SSD with dual M.2 slots supporting up to 16TB total storage (8TB x 2).

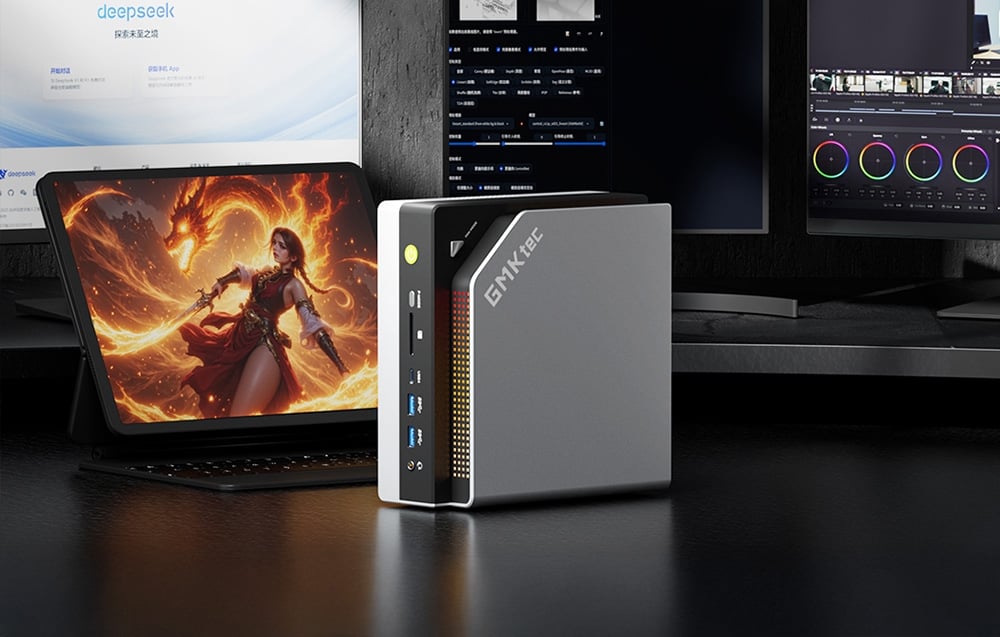

- Quad-Display 8K Support: Connect up to four displays simultaneously via HDMI 2.1, DisplayPort 1.4 HBR3, and dual 40Gbps USB4 ports.

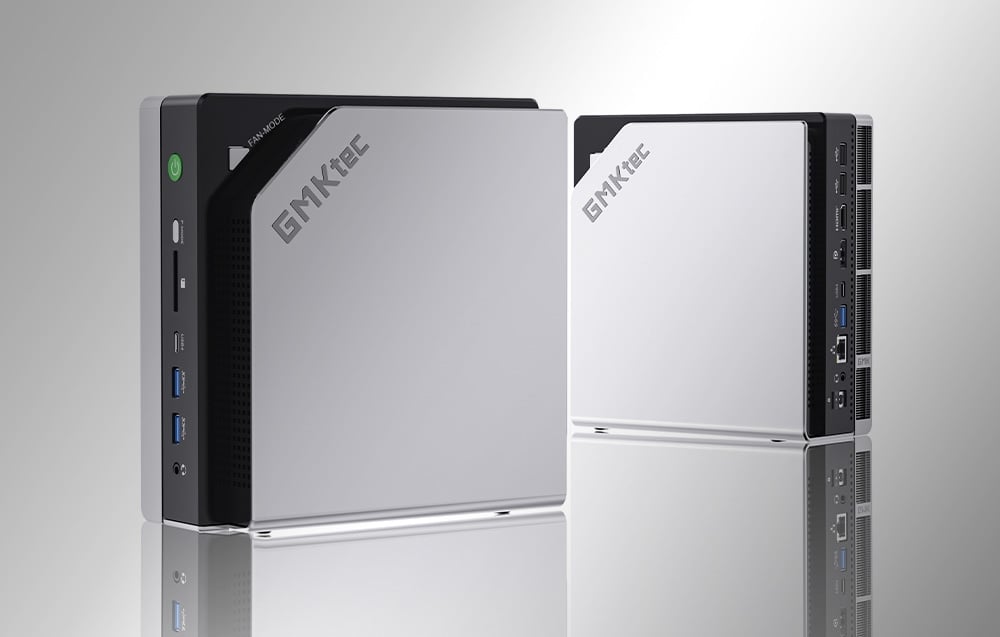

- Next-Level Networking: Ultra-fast Wi-Fi 7 (up to 46.4 Gbps), Bluetooth 5.4, and a 2.5G RJ45 Ethernet port for lag-free gaming and lightning-fast file transfers.

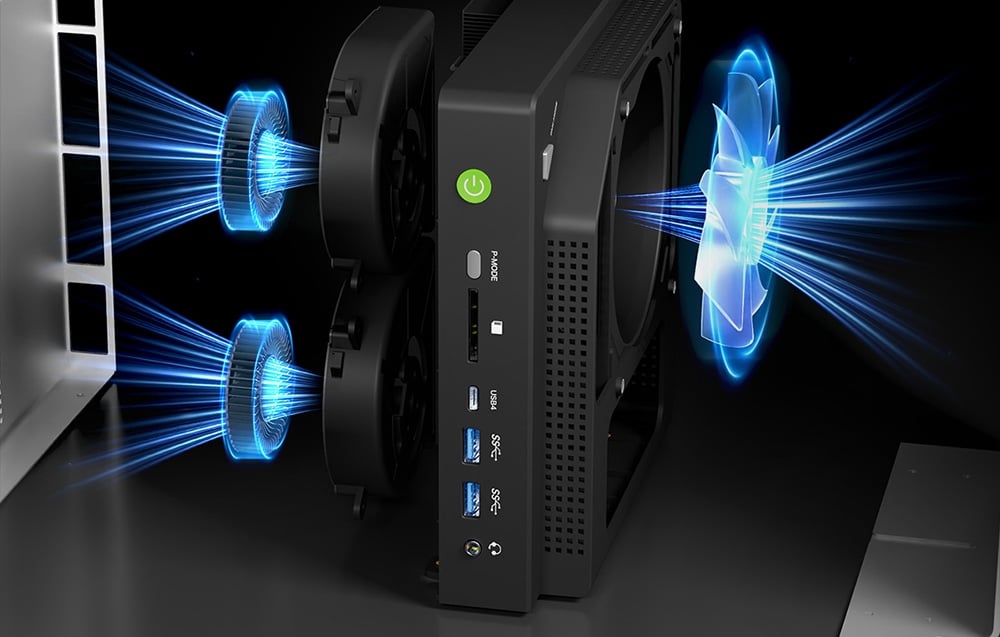

- Advanced Active Cooling: Custom cooling architecture featuring 3 heat pipes, dual CPU fans, dedicated RAM/SSD active cooling fans, and 16-mode customizable RGB lighting.
General
- Brand
- GMKtec
- Model
- EVO-X2
- Operating System
- Windows 11 Pro (Supports Linux)
- Chassis Material
- Metal & High-Grade Plastic
- Security
- TPM 2.0 Supported
Processor
- Processor Model
- AMD Ryzen™ AI Max+ 395
- Architecture
- Zen 5 (4nm FinFET)
- Cores / Threads
- 16 Cores / 32 Threads
- Max Clock Speed
- Up to 5.1 GHz
- Cache
- 80 MB Total (16 MB L2 + 64 MB L3)
- TDP Range
- 45W - 120W (Boost up to 140W)
Graphics & AI Acceleration
- Graphics Processor
- AMD Radeon™ 8060S
- Graphics Architecture
- RDNA 3.5
- Compute Units
- 40 CUs
- NPU Architecture
- AMD XDNA™ 2
- NPU Performance
- Up to 50 TOPS
- Total System AI Performance
- Up to 126 TOPS
Memory & Storage
- RAM Capacity
- 64 GB
- RAM Type & Speed
- LPDDR5X 8000 MHz (8-Channel)
- Primary Storage
- 1 TB M.2 2280 PCIe 4.0 NVMe SSD
- Storage Expansion
- 2x M.2 2280 PCIe slots (Up to 8 TB per slot)
- Maximum Supported Storage
- 16 TB Total (8 TB x 2)
Connectivity & Wireless
- Wi-Fi
- Wi-Fi 7 (PCIe Interface)
- Bluetooth
- Bluetooth 5.4
- Wired LAN
- 1 x 2.5 Gigabit Ethernet (2500M / 1000M / 100M / 10M RJ45)

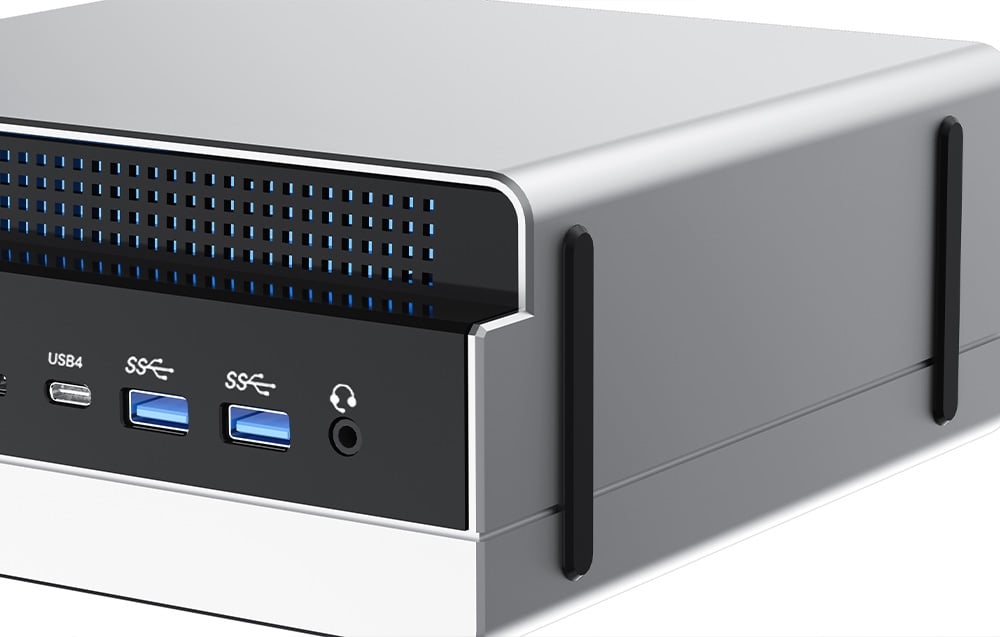

Ports & Interfaces
- Front Ports
- 2x USB-A 3.2 (10Gbps), 1x USB4 (40Gbps), 1x Full-size SD Card Reader (SDXC), 1x 3.5mm Headphone/Mic Jack (CTIA)
- Rear Ports
- 1x USB-A 3.2, 2x USB-A 2.0, 1x USB4 (40Gbps / DP / PD), 1x HDMI 2.1 (8 Gbps), 1x DisplayPort 1.4 HBR3, 1x 2.5G RJ45 LAN, 1x 3.5mm Audio Jack
- Multi-Display Support
- Up to 4 displays simultaneously (up to 8K resolution)
Cooling & Design
- Cooling System
- Triple Heat Pipes, Dual CPU Fans, Dedicated SSD/RAM Active Cooling Fans
- RGB Lighting
- Customizable RGB lighting (16 modes, dedicated control button)
Power & Dimensions
- Power Supply
- Input: 100-240V 50/60Hz, Output: 19.5V / 11.8A (230W DC 5.5/2.5 mm)
- Dimensions
- 186 x 77 x 192 mm
- Weight
- 1652 g
- Operating Temperature
- 0°C to 40°C
