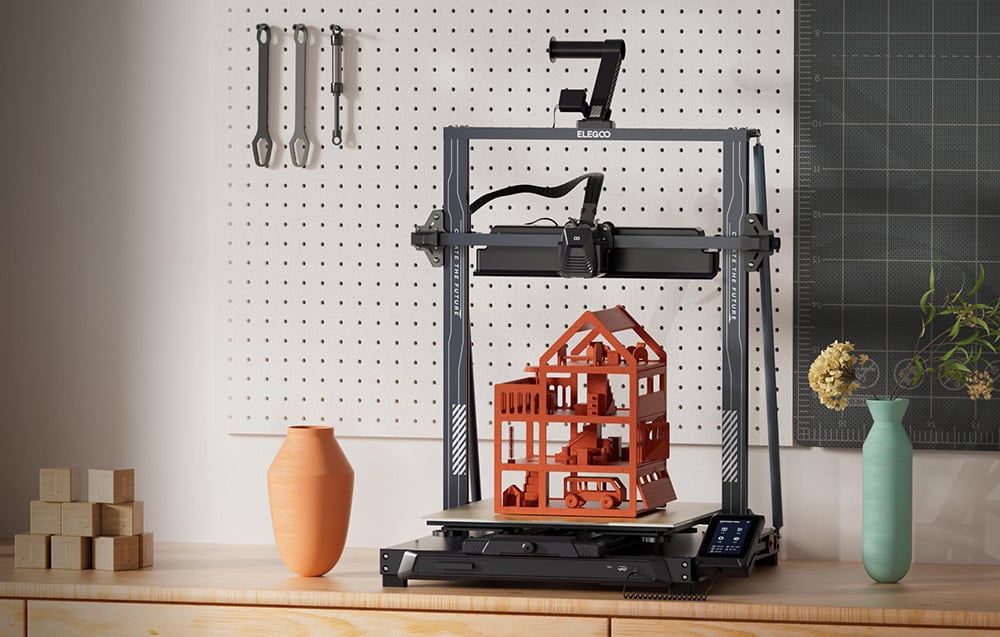

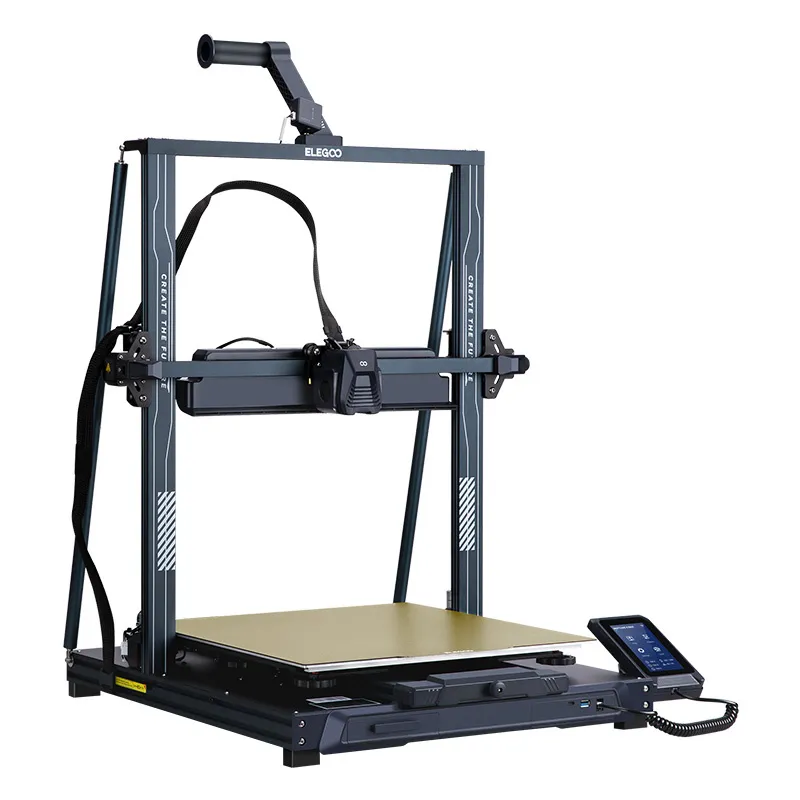

ELEGOO Neptune 4 Max 3D Printer
SKU: INN-50.201.014300
Brand: ELEGOO
The Elegoo Neptune 4 Max is an advanced 3D printer that combines high print volume with high precision and speed. Its advanced technical features and intuitive operation make it an ideal choice for both professionals and hobbyists who want the highest quality and reliability in their projects.
The Neptune 4 Max offers a maximum print volume of 420 x 420 x 480 mm. This workspace allows you to create large models in a single process, without having to split them into smaller pieces. This is ideal for engineering, architectural and artistic projects.
The printer provides a printing precision of ±0.1 mm and a nozzle diameter of 0.4 mm, which allows for accurate reproduction of details. Print speeds range from 30 to 500 mm/s, with an optimal speed of 250 mm/s. A maximum acceleration of 8,000 mm/s² enables efficient and fast printing, which is crucial for large projects.
The Elegoo Neptune 4 Max operates at ambient temperatures from 5°C to 40°C, with a maximum nozzle temperature of 300°C. The heated substrate can reach up to 85°C at an ambient temperature of 25°C. These parameters allow the use of various printing materials, including those requiring higher temperatures.
The printer works with the popular Cura software, making it easy to prepare models for printing. It supports STL and OBJ input file formats, and the resulting file is G-code. USB drive and network (LAN) interfaces make it easy to transfer data and control the printing process, providing convenience and flexibility. The Elegoo Neptune 4 Max has a solid design, with a size of 658 x 632 x 740 mm. Thanks to its massive design, the printer ensures stability during operation, which translates into better print quality.
General
- Brand
- ELEGOO
- Model
- Neptune 4 Max
- Printer Type
- FDM (Fused Deposition Modeling)
- Firmware
- Klipper
Printing Performance
- Build Volume
- 420 x 420 x 480 mm
- Max Printing Speed
- 500 mm/s
- Recommended Printing Speed
- 250 mm/s
- Max Acceleration
- 8000 mm/s²
- Layer Thickness
- 0.1 - 0.4 mm
- Print Accuracy
- ±0.1 mm
Extruder & Heated Bed
- Extruder Type
- Dual-Gear Direct Drive Extruder
- Reduction Ratio
- 5.2:1
- Max Nozzle Temperature
- 300 °C
- Max Heatbed Temperature
- 85 °C
- Bed Leveling
- 121-Point (11x11) Auto-Leveling + Manual Fine-Tuning
- Build Surface
- PEI Magnetic Flexible Spring Steel Sheet
Hardware & Electronics
- Processor
- ARM 64-bit 1.5GHz Quad-Core System Board
- Display
- 4.3-inch Removable Capacitive Touchscreen
- Cooling Array
- 2x 4015 Fans + 2x 6025 Auxiliary Cooling Fans
- Z-Axis Structure
- Dual Lead Screws with Dual Motors
- Sensors
- Filament Runout Detection, Power Loss Recovery
Connectivity & Software
- Interfaces
- Wi-Fi, LAN (Ethernet Port), USB Drive
- Supported File Formats
- STL, OBJ, 3MF
- Slicing Software Support
- ELEGOO Cura, PrusaSlicer, OrcaSlicer
Supported Filaments
- Filament Diameter
- 1.75 mm
- Compatible Materials
- PLA, PETG, ABS, TPU, ASA, Nylon
Physical Attributes
- Printer Dimensions
- 658 x 632 x 740 mm
- Net Weight
- 18.1 kg
- Power Supply Voltage
- 100-240V 50/60Hz (500W Max Output)
