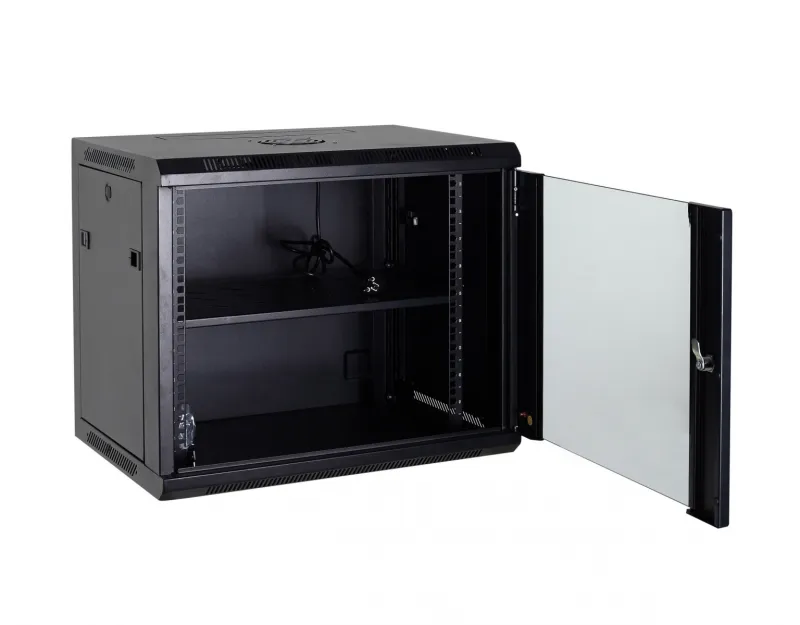

DigitMX NETPRO NP-C12U45W2 19'' Wall Rack 12U 45cm (Not Assembled) - Description
Organize and protect your structured cabling and IT hardware with the NETPRO NP-C12U45W2 12U 19-inch Wall Mount Rack Cabinet. Engineered for small to medium enterprise networks, security systems, and telecom setups, this 450mm deep enclosure provides a dependable, space-saving solution for housing patch panels, switches, routers, and AV equipment.
Key Features
- 12U 19'' Industry-Standard Enclosure: Compatible with all standard 19-inch rack-mountable equipment.
- Tempered Glass Front Door: Sturdy 5mm tempered glass door featuring a swing angle greater than 180° for unobstructed access and easy visual inspection.
- Detachable Side Panels: Removable side covers simplify hardware installation, routine inspections, and wiring maintenance.
- Flexible Cable Management: Dedicated cable entry points located on both the top and bottom panels allow for neat, stress-free routing.
- Thermal Efficiency: Pre-cut top ventilation slot designed to support an optional cooling fan for optimal airflow.
- Secure & Simple Wall Mounting: Reinforced rear panel equipped with four wall-mount holes for secure attachment to structural walls.
- Rigid L-Shaped Mounting Profiles: Heavy-duty internal mounting rails ensure equipment stability and reliable weight distribution.
Assembly & Delivery Information
This unit is supplied Flat Packed (Not Assembled) for safe transit and easy handling. Professional assembly is available upon request at the time of ordering (please allow at least 48 hours for assembly). Please note that assembled units are non-returnable. Note: Internal shelf is not included and must be purchased separately.
DigitMX NETPRO NP-C12U45W2 19'' Wall Rack 12U 45cm (Not Assembled) - Specifications
General
- Brand
- NETPRO
- Model
- NP-C12U45W2
- SKU
- MS-17198
- Rack Unit Capacity
- 12U
- Rack Standard
- 19-inch (EIA/ECA-310)
- Form Factor
- Wall Mount
- Assembly Status
- Flat Packed (Not Assembled)
Physical Attributes
- External Dimensions (H x W x D)
- 634 mm x 600 mm x 450 mm
- Mounting Depth
- 450 mm
- Front Door
- 5mm Tempered Glass (>180° opening angle)
- Side Panels
- Removable
- Mounting Rails
- L-shaped internal profiles
- Wall Fixings
- 4 rear panel mounting holes
Cable & Thermal Management
- Cable Entry
- Top and bottom panels
- Cooling Cutout
- Top-mounted fan cutout (fan optional)
Accessories & Notes
- Shelf Included
- No (sold separately)
- Assembly Option
- Available upon request (48-hour lead time)
- Returns Policy Note
- Assembled units cannot be returned
