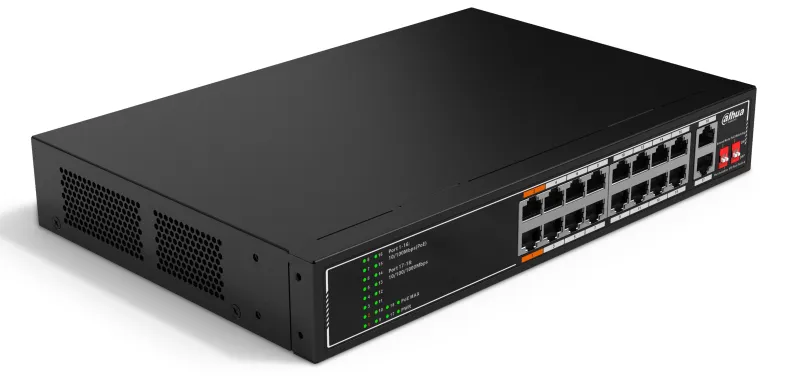

Dahua PoE Switch 16port+2GUP 135W SF1018LP - Description
Empower your security and network infrastructure with the Dahua SF1018LP 16-Port PoE Switch, engineered specifically for high-demand IP video surveillance and office network systems. Featuring 16 Fast Ethernet PoE ports alongside 2 Gigabit uplink ports, this unmanaged commercial switch delivers a combined power budget of 135W, ensuring stable, reliable connectivity for security cameras, access points, and VoIP hardware.
Key Features
- Intelligent PoE Management: Optimizes power allocation across all connected devices to prevent power overload and protect critical hardware.
- PoE Watchdog: Automatically detects malfunctioning or frozen cameras and reboots individual ports to restore operation without manual intervention.
- Long-Distance PoE Transmission: Extends power and video data transmission up to 250 metres, eliminating the need for expensive network extenders.
- VIP Port Prioritization: Designates key ports for prioritized video streaming, preventing packet drop and ensuring fluid real-time footage.
- Port Isolation: Isolates traffic between downlink ports to enhance network security and suppress broadcast storms.
- Industrial-Grade Durability: Engineered with a rugged metal casing capable of operating in wide temperature ranges from -10 °C to +55 °C.
Whether you are outfitting a retail store, office building, or warehouse in Cyprus, the Dahua SF1018LP delivers the robustness, automated maintenance, and signal reliability required for continuous security operations.
Dahua PoE Switch 16port+2GUP 135W SF1018LP - Specifications
General
- Brand
- DAHUA
- Model
- SF1018LP
- Part Number / SKU
- MS-25262
- Device Type
- Unmanaged PoE Network Switch
- Target Application
- Surveillance & Commercial Networking
Port Configuration
- Total Ports
- 18
- PoE Ports
- 16 x 10/100 Mbps RJ45
- Uplink Ports
- 2 x 10/100/1000 Mbps Combo (RJ45/SFP)
- VIP Priority Ports
- Supported (Port 1–8 prioritization)
PoE Attributes
- PoE Standard
- IEEE802.3af (PoE), IEEE802.3at (PoE+)
- Total PoE Power Budget
- 135 W
- Intelligent PoE
- Supported
- PoE Watchdog
- Supported (Automatic status detection & restart)
- Long Distance Mode
- Supported (Up to 250 m at 10 Mbps)
Network & Switching Performance
- Switching Capacity
- 5.2 Gbps
- Packet Forwarding Rate
- 3.87 Mpps
- Packet Buffer Memory
- 2.75 Mbit
- MAC Address Table Size
- 4K
- Port Isolation
- Supported (VLAN mode)
Physical & Environmental
- Housing Material
- Metal
- Operating Temperature
- -10 °C to +55 °C (+14 °F to +131 °F)
- Operating Humidity
- 10% – 90% RH (non-condensing)
- Surge Protection
- Common Mode 4 kV, Differential Mode 2 kV
