CyberPower VA PDU 10 Outlets Auto Transfer Switch SNMP/Sensor PDU44005
CyberPower VA PDU 10 Outlets Auto Transfer Switch SNMP/Sensor PDU44005 - Description
Ensure the uninterrupted operation of critical networking and IT equipment with the CyberPower PDU44005 Switched Automatic Transfer Switch (ATS) PDU. Engineered specifically for data centers, telecom closets, and server rooms, this enterprise-grade power distribution unit supplies redundant power to single-corded connected hardware.

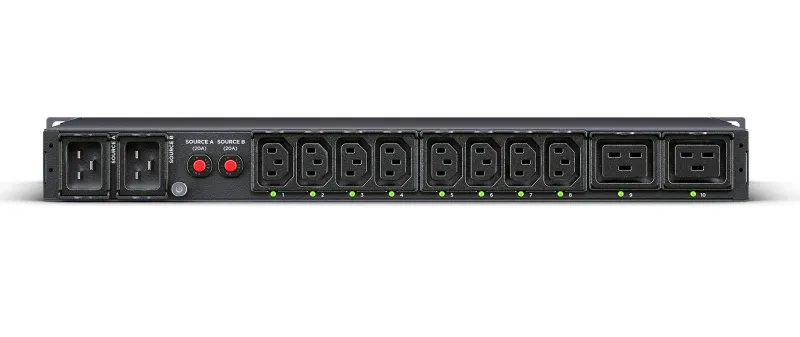

Featuring dual IEC C20 power cords connected to distinct power sources (Source A and B), the PDU44005 continuously monitors incoming power quality. If the primary power feed fluctuates outside acceptable thresholds or drops out completely, the high-speed ATS mechanism instantly switches to the secondary power source to keep your devices running without a glitch, automatically switching back once the primary source stabilizes.
Key Features & Highlights
- Seamless Power Redundancy: Dual power inputs provide automated failover protection for single-corded servers, switches, and storage units.
- 10 Network-Grade Outlets: Equipped with (8) IEC C13 and (2) IEC C19 switchable outlets for versatile device connectivity.
- Individual Outlet Management: Power cycle unresponsive hardware remotely, lock out unauthorized loads, and schedule power sequences over the network.
- Comprehensive Remote & Local Monitoring: Manage settings through the built-in web interface, SNMP protocol, or review clear metrics on the multi-color illuminated front-panel LCD.
- Environmental Sensor Compatibility: Expandable monitoring options support temperature and humidity environmental sensors.
- Rugged & Secure Construction: Industrial metal chassis complete with cord retention brackets to prevent accidental cable disconnects.
CyberPower VA PDU 10 Outlets Auto Transfer Switch SNMP/Sensor PDU44005 - Specifications
General
- Brand
- CYBERPOWER
- Model
- PDU44005
- SKU / OEM Code
- MS-25053
- Product Type
- Switched Automatic Transfer Switch (ATS) PDU
Electrical & Input
- Nominal Input Voltage
- 200 - 240 V
- Input Frequency
- 50 / 60 Hz
- Input Connectors
- 2 x IEC-320 C20 (Dual Power Cords)
- Transfer Time
- Automatic / High-Speed Transfer
Power Output
- Total Outlets
- 10
- Outlet Configuration
- 8 x IEC-320 C13, 2 x IEC-320 C19
- Outlet Switching
- Yes (Individual Remote/Local Switching)
Management & Connectivity
- Local Display
- Multifunction LCD with Selectable Color Backlight
- Network Interface
- SNMP / HTTP / Web Browser Interface
- Daisy-Chain Capability
- Supported
- Sensor Port
- RJ45 (Supports Optional Environmental Sensor)
- Event Notifications
- Email, SNMP Traps, Syslog
Physical & Environmental
- Form Factor
- Rackmount (1U)
- Chassis Material
- Industrial-Grade Metal
- Cord Retention
- Cord Retention Brackets Included
- Mounting
- Rackmount Brackets Included
