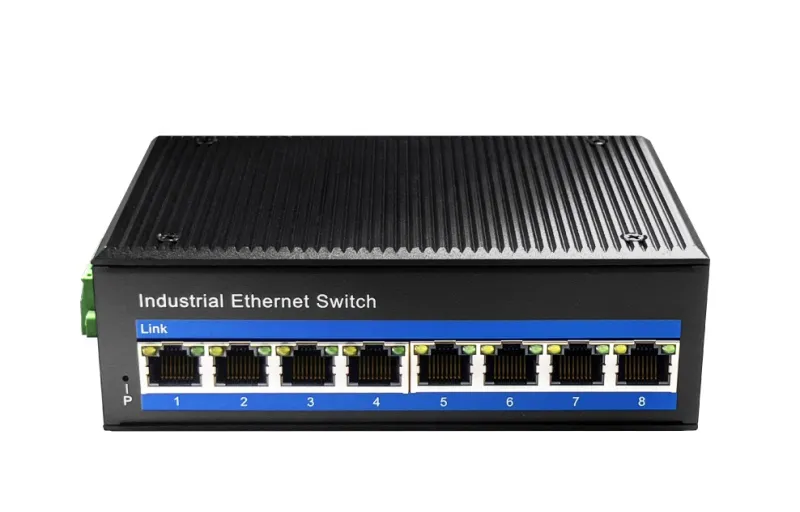

Cudy Switch PoE Gigabit 8PoE Industrial 240W IP40 IG1008P

Engineered for mission-critical deployments and harsh operational environments, the Cudy IG1008P Industrial 8-Port Gigabit PoE+ Switch delivers resilient network connectivity and robust Power over Ethernet. Encased in a heavy-duty IP40 aluminum chassis, this unmanaged switch guarantees high data throughput and steady electrical performance where standard consumer networking gear fails.

High-Power Gigabit PoE+ Delivery

Equipped with 8 Gigabit Ethernet ports complying with IEEE 802.3af and 802.3at standards, the switch supplies up to 30W of power per port with a combined PoE capacity of up to 240W. This makes it ideal for powering IP surveillance cameras, VoIP systems, outdoor wireless access points, and industrial automation equipment directly through standard network cabling.

Industrial-Grade Durability and Surge Protection

Designed to operate reliably in extreme conditions, the IG1008P features an extended operating temperature range of -40°C to 85°C. For maximum defense against harsh electrical noise and lighting surges, it features integrated 6KV DC Ethernet ESD protection and 6KV DC EFT power-line protection, as well as strict certification against shock, vibration, and free fall.

Flexible Power & Installation

Featuring dual redundant 48V to 57V DC terminal block inputs, the IG1008P protects against unexpected power source failures to guarantee continuous uptime. The unit supports flexible deployment on standard 35mm DIN-rails or direct wall mounting.

*Note: Power supply is not included. An industrial DIN-rail power supply (such as the Mean Well NDR-240-48 48V 240W PSU) is required for operation.

Key Features

• 8 Gigabit PoE+ Ports: Supports IEEE 802.3at/af with up to 30W per port and up to 240W total PoE budget.
• Rugged Enclosure: IP40-rated extruded aluminum alloy casing with fanless heat dissipation.
• Extreme Temperature Tolerance: Rated for reliable continuous operation from -40°C up to 85°C.
• Advanced Surge & ESD Shielding: 6KV DC Ethernet ESD and 6KV DC EFT electrical noise protection.
• Dual Redundant Power Inputs: 48V–57V DC input support via industrial terminal block.
• Versatile Hardware Mounting: Supports DIN-rail and wall-mount installation.
